01 - Cooktop Parts

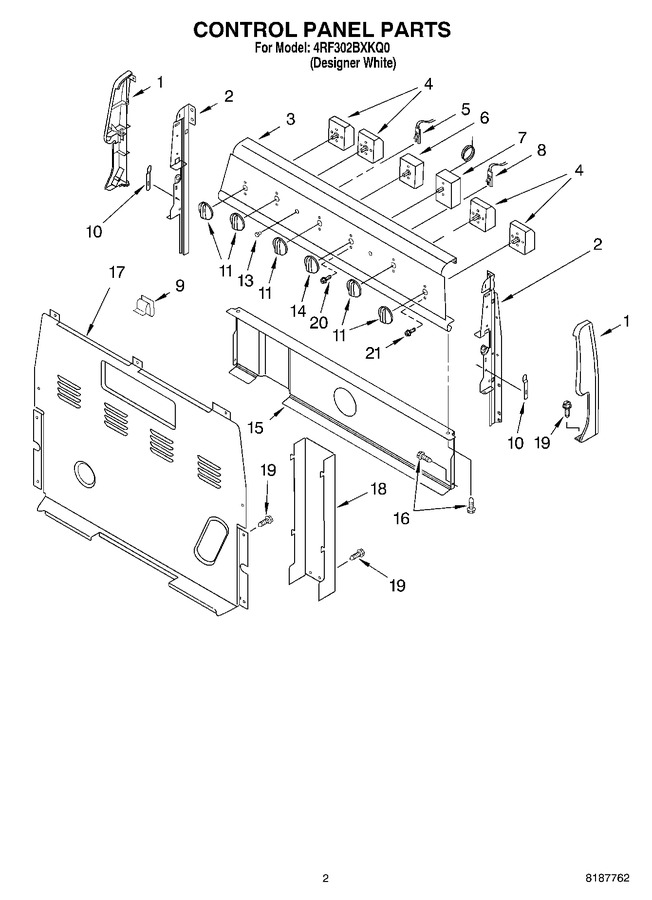

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3186190 | Endcap (left Hand White) |
|
- | |||||
| 1 | 3186191 | Endcap (right Hand White) |
|
- | |||||
| 2 | 8523408 | Support, Endcap (left Hand) |
|
- | |||||
| 2 | 8523409 | Support, Endcap (right Hand) |
|
- | |||||
| 3 | 3186161 | Panel, Backguard |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (use W/ 6`` Element) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | 5500-287 | Switch, Infinite (use W/ 8`` Element) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 5 | 8273303 | Indicator, Surface |
|
- | |||||
| 6 | WP3188987 | Switch, Selector (Replaces: 3188987) |
|
$ 154.42 | |||||
| 7 | WP3196803 | Thermostat (Replaces: 3196803) |
|
$ 212.94 | |||||
| 8 | 314031 | Indicator, Oven |
|
$ 62.88 | |||||
| 9 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.06 | |||||
| 10 | 3196200 | Clip, Spring (2) |
|
$ 9.95 | |||||
| 11 | WP8522565 | Knob, Infinite (5) (Replaces: 8522565) |
|
Immediately | $ 19.90 | ||||
| 13 | WP3196068 | Lens, Ind. (2) (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 14 | 8522619 | Knob, Thermostat |
|
- | |||||
| 15 | 8053912 | Shield, Heat |
|
$ 34.55 | |||||
| 16 | W10276642 | Screw (Replaces: 4449746) |
|
$ 6.10 | |||||
| 17 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 208.61 | |||||
| 18 | WPW10326122 | Box, Cover (Replaces: 3195133) |
|
$ 132.95 | |||||
| 19 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 20 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.19 | |||||
| 21 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.19 |
