SELECT A DIAGRAM

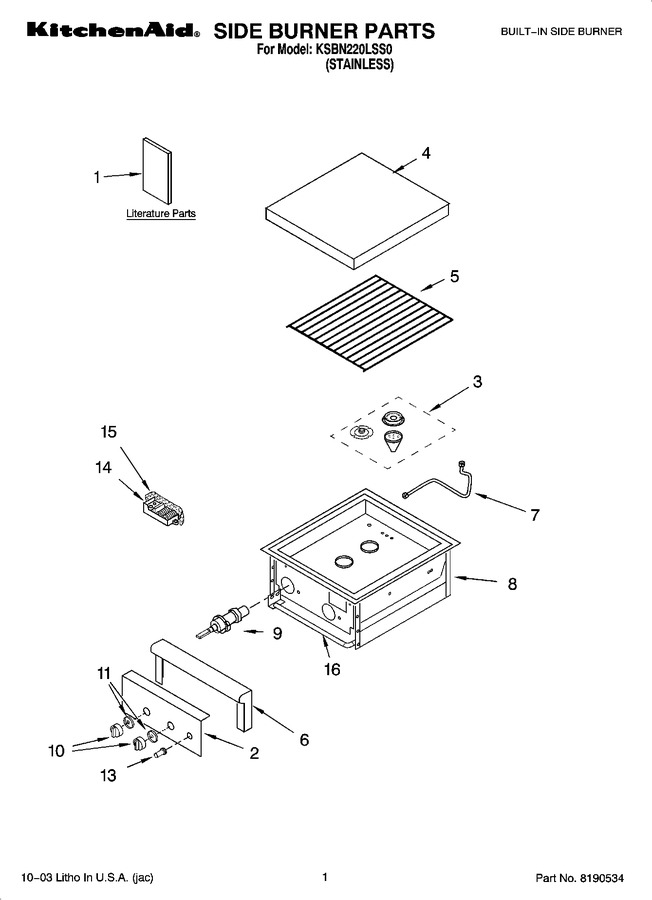

01 - Side Burner Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8190046 | Literature Parts (u & C Guide / Instructions, Installation) |
|
- | |||||
| 2 | 8190514 | Panel, Front |
|
- | |||||
| 3 | 8190504 | Burner (2) |
|
- | |||||
| 4 | 8190519 | Cover, Side Burner |
|
- | |||||
| 5 | 8190520 | Grate |
|
- | |||||
| 6 | 8190518 | Bullnose |
|
- | |||||
| 7 | 8190517 | Tubing (rear) |
|
- | |||||
| 7 | 8190516 | Tubing (front) |
|
- | |||||
| 9 | 8190024 | Valve, Main (2) |
|
- | |||||
| 10 | 8190028 | Knob |
|
$ 23.95 | |||||
| 11 | 8190027 | Bezel |
|
- | |||||
| 13 | 8190029 | Switch, Igniter |
|
- | |||||
| 14 | 8190458 | Module, Spark |
|
- | |||||
| 15 | 8190130 | Insulation, Module |
|
- | |||||
| 16 | 8190521 | Slider (battery Tray) |
|
- | |||||
| 16 | 8190522 | Holder (battery Tray) |
|
- | |||||
| 16 | 8190121 | Screw 18x1/2 Pan |
|
- | |||||
| 16 | WP488130 | Locknut 8-32 (Replaces: 8190462) |
|
$ 6.59 | |||||
| 16 | 8190124 | Screw 1/4-20x1/2ss (hex Bolt) |
|
- | |||||
| 16 | W11708395 | Washer, Flat (Replaces: 8190125) |
|
$ 4.02 | |||||
| 16 | 8190538 | Manifold |
|
- | |||||
| 16 | N/A | Following Parts Not Illustrated |
|
- | |||||
| 16 | 8190115 | Latch-magnetic |
|
- | |||||
| 16 | WPW10068250 | Screw 8-32x3/8 (Replaces: 8190032) |
|
$ 3.84 | |||||
| 16 | 8190090 | Logo, Kitchenaid |
|
- | |||||
| 16 | WP2004333 | Clip, Logo (4) (Replaces: 8190114) |
|
$ 10.12 | |||||
| 16 | 8190515 | Shield (igniter Module) |
|
- | |||||
| 16 | 8190196 | Elbow 1/2`` 90 Deg |
|
- | |||||
| 16 | 8190140 | Plug, Pipe 1/8 C/s Hex Head |
|
- | |||||
| 16 | 8190156 | Battery, 9 Volt |
|
- | |||||
| 16 | 8190456 | Wire, Battery |
|
- | |||||
| 16 | 8190033 | Clip, J Type 8-32 |
|
- |
