01 - Cooktop


02 - Control Panel


03 - Oven


04 - Door And Drawer


05 - Wiring Harness, Lit/optional

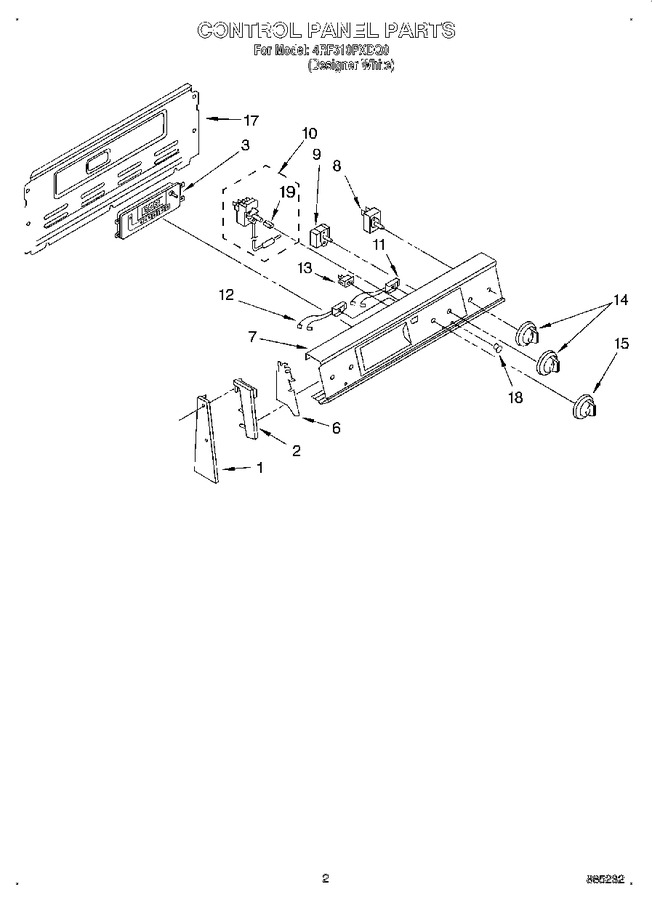

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3188992		End Trim, R.h. (designer White End Trim, L.h.)		Appelez-nous	-
1	3188993		End Trim, R.h. (designer White)		Appelez-nous	-
2	3187793		End Cap, R.h. (designer White End Cap, L.h.)		Appelez-nous	-
2	3187794		End Cap, R.h. (designer White)		Appelez-nous	-
3	3189299		Timer, Clock (designer White)		Appelez-nous	-
6	WP965173		Screw, No.8x3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
6	313608		Shield (2)		Appelez-nous	-
7	3188672		Panel, Control (designer White)		Appelez-nous	-
8	5500-287		Switch, Infinite (6`` Element (2))   (Replaces: 3148951)			Immediately	$ 52.39
8	5500-287		Switch, Infinite (8`` Element (2))   (Replaces: 3148953)			Immediately	$ 52.39
8	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
9	WP3188987		Switch, Selector   (Replaces: 3188987)				$ 162.14
9	308119		Screw, 8-32 X 1/4 (2)		Appelez-nous	-
10	3169302		Thermostat, Oven				$ 193.75
10	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
11	314031		Light, Indicator (oven)				$ 62.88
12	3169457		Light, Indicator (surface Unit)		Appelez-nous	-
13	3182718		Rocker Switch (designer White)		Appelez-nous	-
14	3188722		Knob, (5) (inf. & Selector) (designer White)		Appelez-nous	-
15	3188725		Knob (temp) (designer White)		Appelez-nous	-
17	3187332		Rear Cover		Appelez-nous	-
17	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
18	313101		Lens, Amber (2)		Appelez-nous	-
19	3169525		Sleeve, Adaptor		Appelez-nous	-
