SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Ice Maker, Optional

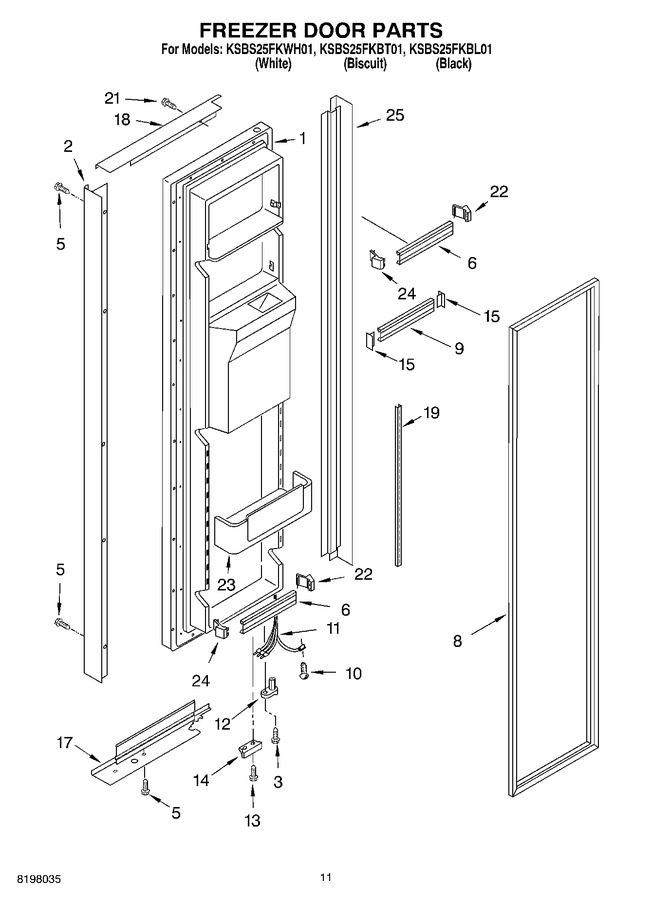

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2214473W		Freezer Door (includes Item No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2214473T		Freezer Door (includes Item No.8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2214473B		Freezer Door (includes Item No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
2	2207309W		Retainer, Handle (white)		Appelez-nous	-
2	2207309B		Retainer, Handle (black)		Appelez-nous	-
2	2207309T		Retainer, Handle (biscuit)		Appelez-nous	-
3	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
5	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
6	2199990		Trim, Door Shelf		Appelez-nous	-
8	2221309		Door Gasket, Magnetic (black)		Appelez-nous	-
8	2221304		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
9	2199991		Trim, Door Shelf		Appelez-nous	-
10	WP489128		Screw   (Replaces: 488500)				$ 11.40
11	2203091		Wiring Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2210774		Bracket, Door Stop (chrome)		Appelez-nous	-
14	2214451		Bracket, Door Stop (black)		Appelez-nous	-
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
17	2207315B		Trim, Door (bottom) (black)		Appelez-nous	-
17	2207315T		Trim, Door (bottom) (biscuit)		Appelez-nous	-
17	2207315W		Trim, Door (bottom) (white)		Appelez-nous	-
18	2207313W		Trim, Door (top) (white)		Appelez-nous	-
18	2207313B		Trim, Door (top) (black)		Appelez-nous	-
18	2207313T		Trim, Door (top) (biscuit)		Appelez-nous	-
19	2208147		Ladder, Shelf Assembly (2)		Appelez-nous	-
21	3196180		Screw		Appelez-nous	-
22	WP2195916K		Endcap   (Replaces: 2195916)			Immediately	$ 13.18
23	2199992		Bin, Door (2)		Appelez-nous	-
24	2195917		Endcap		Appelez-nous	-
25	2207311B		Trim, Door (hinge Side) (black)		Appelez-nous	-
25	2207311W		Trim, Door (hinge Side) (white)		Appelez-nous	-
25	2207311T		Trim, Door (hinge Side) (biscuit)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
