Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2223921T Freezer Door (includes 8 And Dispenser Front Parts) (biscuit) Appelez-nous -
1 2223921B Freezer Door (includes 8 And Dispenser Front Parts) (black) Appelez-nous -
1 2223921W Freezer Door (includes 8 And Dispenser Front Parts) (white) Appelez-nous -
2 2223817W Handle (white) Appelez-nous -
2 2223817S Handle (stainless Steel) Appelez-nous -
2 2223817B Handle (black) Appelez-nous -
2 2223817T Handle (biscuit) Appelez-nous -
3 2224095W Trim, Top (white) Appelez-nous -
3 2224095S Trim, Top (stainless Steel) Appelez-nous -
3 2224095B Trim, Top (black) Appelez-nous -
3 2224095T Trim, Top (biscuit) Appelez-nous -
4 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

5 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26

6 3196180 Screw Appelez-nous -
7 2223559K Shelf Bin (3) Appelez-nous -
8 2306995 Door Gasket, Magnetic (black)   (Replaces: 2223910) Special Order $ 331.26

8 2223325 Door Gasket, Magnetic (mist Beige) Appelez-nous -
10 WPW10307490 Trim, Door Shelf   (Replaces: 2219982) In-Stock Immediately $ 24.27

11 WP2182181 Thimble, Top   (Replaces: 2308091) Special Order $ 8.15

12 2223819S Trim, Bottom (stainless Steel) Appelez-nous -
12 2223819B Trim, Bottom (black) Appelez-nous -
12 2223819T Trim, Bottom (biscuit) Appelez-nous -
12 2223819W Trim, Bottom (white) Appelez-nous -
14 WP2223752 Door Closer, Upper Cam   (Replaces: 2223752) Special Order $ 21.16

15 2223820S Trim, Hinge Side (stainless Steel) Appelez-nous -
15 2223820B Trim, Hinge Side (black) Special Order $ 168.56

15 2223820T Trim, Hinge Side (biscuit) Appelez-nous -
15 2223820W Trim, Hinge Side (white) Appelez-nous -
16 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

17 2306940B Bracket, Door Stop (black) Special Order $ 38.97

17 2306940 Bracket, Door Stop (chrome) Special Order $ 101.93


    View Diagram in Separate Window     Print Icon   Print Part List

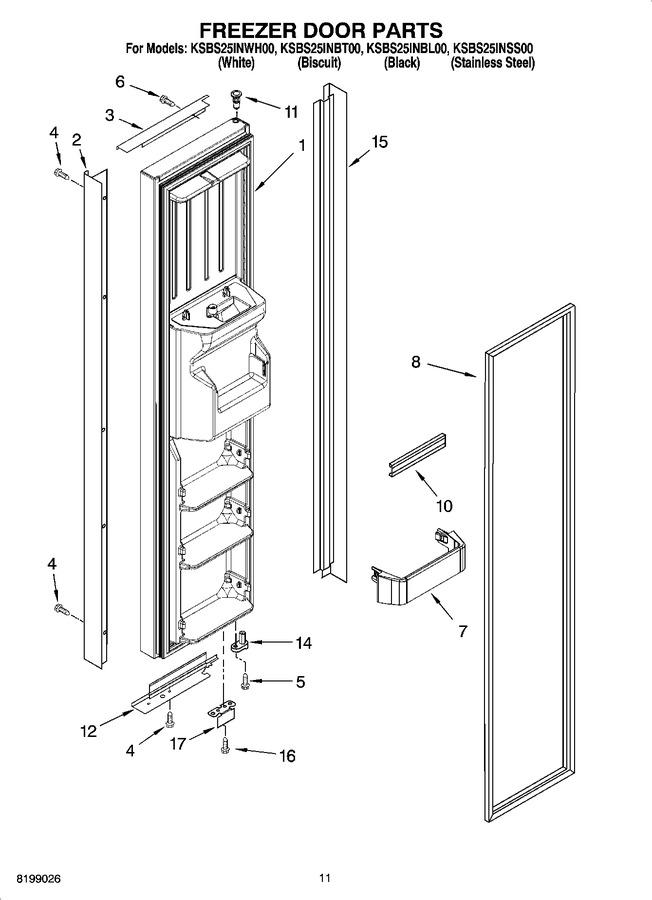

Diagram for KSBS25INBL00
