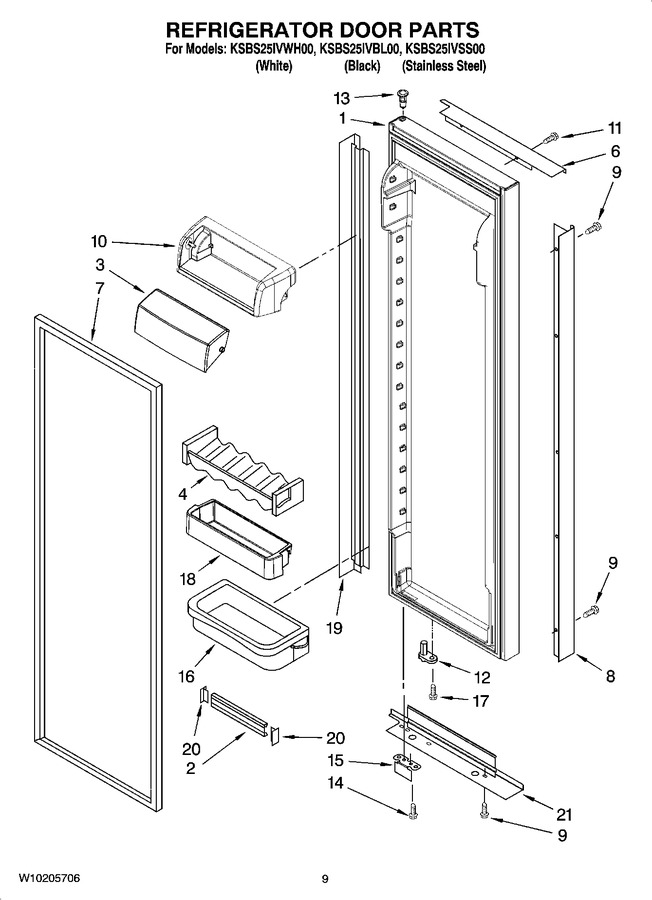

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2307195B		Refrigerator Door (includes 7) (black)		Appelez-nous	-
1	2307195W		Refrigerator Door (includes 7) (white)		Appelez-nous	-
2	2203087K		Trim, Shelf		Appelez-nous	-
3	2255421		Dairy Door				$ 34.76
4	2223883		Caddy, Can				$ 34.98
6	2224096S		Trim, Top (stainless Steel)		Appelez-nous	-
6	2224096B		Trim, Top (black)		Appelez-nous	-
6	2224096W		Trim, Top (white)		Appelez-nous	-
7	2306996		Door Gasket, Magnetic (black)   (Replaces: 2223909)				$ 319.14
7	2223326		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
8	2223821S		Handle (stainless Steel)		Appelez-nous	-
8	2223821B		Handle (black)		Appelez-nous	-
8	2223821W		Handle (white)		Appelez-nous	-
9	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
10	2223879		Dairy Compartment				$ 40.49
11	3196180		Screw		Appelez-nous	-
12	2307048		Door Closer, Upper Cam		Appelez-nous	-
13	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
14	WP489483		Screw   (Replaces: 489420)				$ 10.87
15	2306940B		Bracket, Door Stop (black)				$ 37.11
15	2306940		Bracket, Door Stop (chrome)				$ 97.08
16	WP2223860		Door Bin (3)   (Replaces: 2223860)			Immediately	$ 84.05
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
18	WP2224173		Door Bin, Shallow   (Replaces: 2224173)				$ 87.32
19	2223824S		Trim, Hinge Side (stainless Steel)		Appelez-nous	-
19	2223824B		Trim, Hinge Side (black)				$ 169.51
19	2223824W		Trim, Hinge Side (white)		Appelez-nous	-
20	WP2156006		Plug, Trim   (Replaces: 2156006K)			Immediately	$ 12.18
21	2223823S		Trim, Bottom (stainless Steel)		Appelez-nous	-
21	2223823W		Trim, Bottom (white)		Appelez-nous	-
21	2223823B		Trim, Bottom (black)		Appelez-nous	-
