01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)

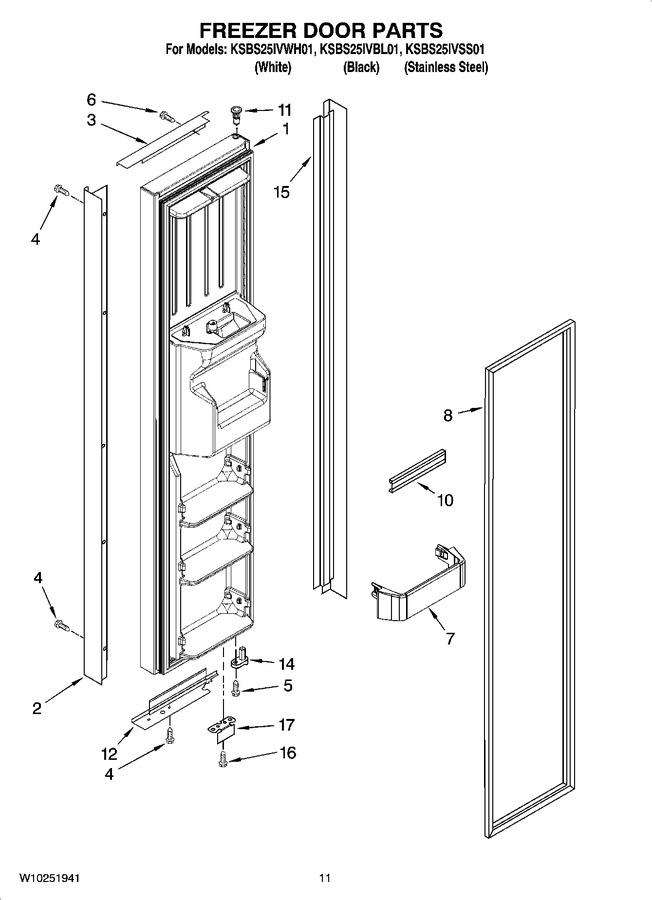

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10214263B		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10214263W		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2223817W		Handle (white)		Appelez-nous	-
2	2223817S		Handle (stainless Steel)		Appelez-nous	-
2	2223817B		Handle (black)		Appelez-nous	-
3	2224095B		Trim, Top (black)		Appelez-nous	-
3	2224095S		Trim, Top (stainless Steel)		Appelez-nous	-
3	2224095W		Trim, Top (white)		Appelez-nous	-
4	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
6	3196180		Screw		Appelez-nous	-
7	2223559K		Shelf Bin (3)		Appelez-nous	-
8	2306995		Door Gasket, Magnetic (black)   (Replaces: 2223910)				$ 315.49
8	2223325		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
11	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
12	2223819S		Trim, Bottom (stainless Steel)		Appelez-nous	-
12	2223819B		Trim, Bottom (black)		Appelez-nous	-
12	2223819W		Trim, Bottom (white)		Appelez-nous	-
14	2307050		Door Closer, Upper Cam				$ 39.47
15	2223820S		Trim, Hinge Side (stainless Steel)		Appelez-nous	-
15	2223820W		Trim, Hinge Side (white)		Appelez-nous	-
15	2223820B		Trim, Hinge Side (black)				$ 168.56
16	WP489483		Screw   (Replaces: 489420)				$ 10.87
17	2306940B		Bracket, Door Stop (black)				$ 37.11
17	2306940		Bracket, Door Stop (chrome)				$ 97.08

    View Diagram in Separate Window       Print Part List
