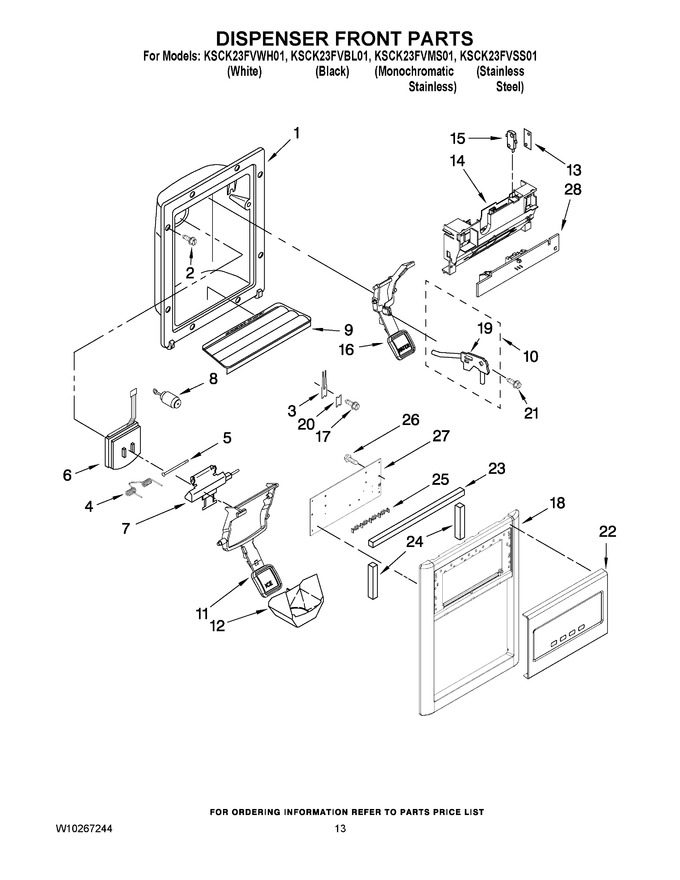

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W10191952 | Screw |
|
$ 5.65 | |||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 11.77 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: W10224328) |
|
$ 83.24 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 14.58 | |||||
| 6 | WP2180353 | Door, Ice (Replaces: 2180353) |
|
Immediately | $ 24.69 | ||||
| 7 | 2304355 | Door Mechanism Assembly |
|
- | |||||
| 8 | 2205686 | Mechanism Delay |
|
- | |||||
| 9 | WP2206670B | Grille, Overflow (black) (Replaces: 2206670B) |
|
Immediately | $ 35.52 | ||||
| 9 | 2206670US | Grille, Overflow (universal Silver) |
|
$ 27.90 | |||||
| 9 | WP2206670W | Grille, Overflow (white) (Replaces: W10189531) |
|
$ 68.80 | |||||
| 10 | 8201537 | Water Fitting Assembly (includes Water Tube) (Replaces: 2209718) |
|
$ 134.13 | |||||
| 11 | WPW10152853 | Lever, Ice Dispenser (white) (Replaces: W10152853) |
|
$ 106.51 | |||||
| 11 | 2180261AP | Lever, Ice Dispenser (apollo Gray) |
|
- | |||||
| 11 | 2180261 | Lever, Ice Dispenser (black) |
|
- | |||||
| 12 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 27.63 | ||||
| 13 | 625834 | Spacer, Switch |
|
$ 7.99 | |||||
| 14 | W10206103 | Bracket, Control |
|
- | |||||
| 15 | WP2162361 | Switch, Bracket (Replaces: 2162361) |
|
Immediately | $ 27.34 | ||||
| 16 | WPW10152858 | Lever, Water Dispenser (white) (Replaces: W10152858) |
|
$ 104.60 | |||||
| 16 | WPW10152859 | Lever, Water Dispenser (black) (Replaces: 2180270) |
|
Immediately | $ 97.92 | ||||
| 16 | 2180270AP | Lever, Water Dispenser (apollo Gray) |
|
$ 47.60 | |||||
| 17 | WP3400906 | Screw (Replaces: W10141632) |
|
$ 7.84 | |||||
| 18 | W10139842 | Bezel, Disp (stainless) |
|
$ 78.48 | |||||
| 18 | W10136850 | Bezel, Disp (white) |
|
$ 185.00 | |||||
| 18 | W10136851 | Bezel, Disp (black) |
|
- | |||||
| 19 | WP2304673 | Bracket, Dispenser (Replaces: 2304673) |
|
$ 15.60 | |||||
| 20 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 11.67 | |||||
| 21 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 7.74 | ||||
| 22 | W10144818 | Fascia Assy, Disp (stainless) |
|
$ 42.54 | |||||
| 22 | W10136810 | Fascia Assy, Disp (white) |
|
- | |||||
| 22 | W10144770 | Fascia Assy, Disp (black) |
|
- | |||||
| 23 | 2305571 | Gasket, Disp |
|
$ 26.13 | |||||
| 24 | W10194025 | Gasket, Disp (2) |
|
- | |||||
| 25 | W10170417 | Support, Window |
|
- | |||||
| 26 | 2006254 | Screw, Disp (2) (Replaces: 489214) |
|
$ 13.13 | |||||
| 27 | W10160662 | Ctrl-elek, Ui |
|
- | |||||
| 28 | W10245284 | Led Assy |
|
$ 62.79 |
