SELECT A DIAGRAM

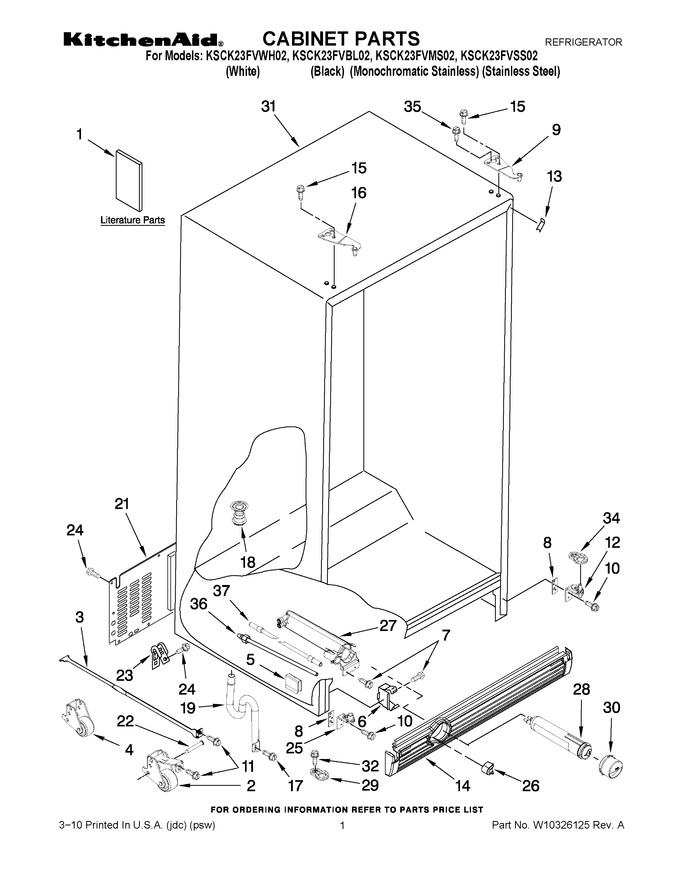

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2220407		Modular Icemaker Service Sheet		Appelez-nous	-
1	W10168296		Use & Care Guide		Appelez-nous	-
1	W10203129		Service & Wiring Sheet		Appelez-nous	-
1	2318510		Installation Instructions		Appelez-nous	-
1	W10216523		Energy Guide		Appelez-nous	-
2	W10199223		Front Roller Asm (right Side)				$ 43.06
2	W10199222		Front Roller Asm (left Side)				$ 36.32
3	W10199260		Strap, Roller		Appelez-nous	-
4	W10173132		Roller, Rear (2)				$ 31.84
5	W11545866		Clip, Retainer (4)   (Replaces: 2223388)				$ 11.31
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	W10141518		Screw				$ 9.09
8	2223545		Shim				$ 84.03
9	2307008AP		Hinge Top, Rc (white)   (Replaces: 2307008W)				$ 159.62
9	2307008B		Hinge Top, Rc (black)				$ 45.29
9	2307008AP		Hinge Top, Rc (apollo Gray)				$ 159.62
10	WP693995		Screw   (Replaces: W10142292)			Immediately	$ 7.19
11	WPW10141645		Screw   (Replaces: W10141645)				$ 7.67
12	2307179		Hinge Assembly, Bottom-rc				$ 50.88
13	2223893AP		Filler, Wrapper (apollo Gray)		Appelez-nous	-
13	2223893W		Filler, Wrapper (white)		Appelez-nous	-
13	2223893B		Filler, Wrapper (black)		Appelez-nous	-
14	W10194061		Grille (apollo Gray)				$ 46.07
14	W10194047		Grille (white)		Appelez-nous	-
14	W10194057		Grille (black)		Appelez-nous	-
15	WP489478		Screw   (Replaces: W10001260)				$ 7.75
16	2307007AP		Hinge, Top Fc (white)   (Replaces: 2307007W)				$ 158.03
16	2307007B		Hinge, Top Fc (black)				$ 133.41
16	2307007AP		Hinge, Top Fc (apollo Gray)				$ 158.03
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.83
18	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
19	2254566		Tube, Extension				$ 53.99
21	2223409		Cover, Unit				$ 77.44
22	W10244901		Pin, Roller (4)		Appelez-nous	-
23	549193		Clamp-service Cord				$ 13.39
24	W10151272		Screw				$ 11.67
25	2307152		Hinge Assembly, Bottom-fc				$ 36.02
26	2260503AP		Button, Water Filter (apollo Gray)				$ 11.15
26	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 72.78
26	2260503W		Button, Water Filter (white)			Immediately	$ 34.16
27	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 171.96
28	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
29	2307051		Door Closer, Fc				$ 73.51
30	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 31.90
30	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 28.26
30	WP2260518MG		Cap, Water Filter (midnight Grey)   (Replaces: 2260502MG)				$ 56.03
31	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
32	WP489483		Screw   (Replaces: W10142234)				$ 10.87
34	2307049		Door Closer (rc)				$ 5.84
35	W10142289		Screw				$ 9.15
36	WPW10350006		Tube, Filter Outlet   (Replaces: 2224020)				$ 115.54
37	W10212512		Tube, Filter Inlet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
