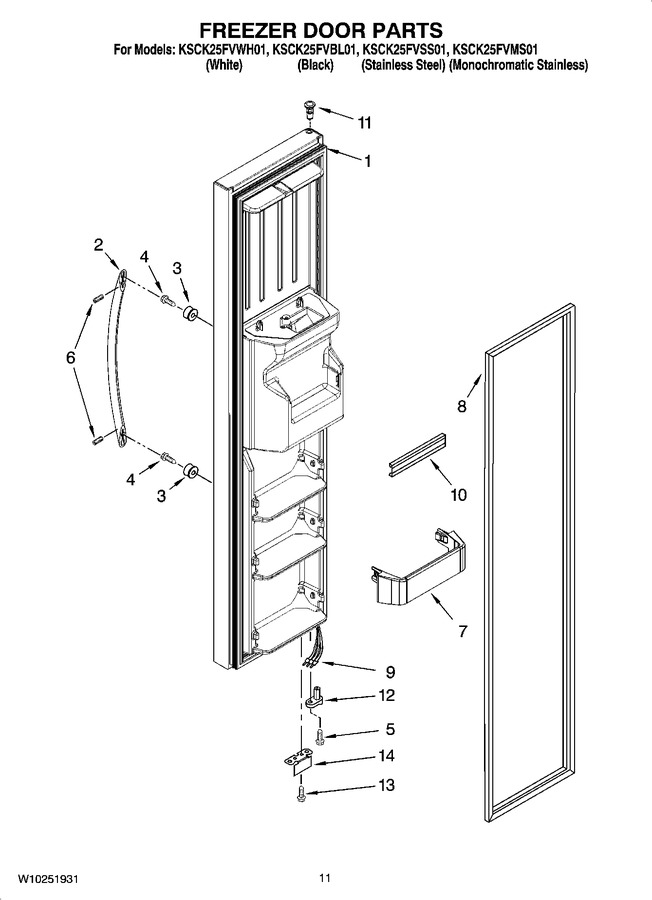

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10214276W | Freezer Door (includes 8 And Dispenser Front Parts) (white) |
|
- | |||||
| 1 | W10214276B | Freezer Door (includes 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | W10214276SB | Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel) |
|
- | |||||
| 1 | W10214276S | Freezer Door (includes 8 And Dispenser Front Parts) (monochromatic Stainless) |
|
- | |||||
| 2 | 2319727W | Handle (includes 6) (white) |
|
$ 106.80 | |||||
| 2 | 2319727B | Handle (includes 6) (black) |
|
$ 109.87 | |||||
| 2 | 2319727S | Handle (includes 6) (stainless Steel) |
|
$ 133.96 | |||||
| 3 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 4 | W10141596 | Screw |
|
$ 8.78 | |||||
| 5 | WP3400012 | Screw (Replaces: W10142285) |
|
$ 7.82 | |||||
| 6 | W11366418 | Screw (chrome) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 6 | WPW10010150 | Screw (black) (Replaces: W10010150) |
|
$ 7.88 | |||||
| 7 | 2223559K | Trivet (3) |
|
- | |||||
| 8 | 2326340 | Door Gasket, Magnetic (apollo Grey) |
|
- | |||||
| 8 | 2306995 | Door Gasket, Magnetic (black) (Replaces: 2223910) |
|
$ 315.49 | |||||
| 8 | 2223325 | Door Gasket, Magnetic (mist Beige) |
|
- | |||||
| 9 | W10193332 | Wire Assy, Door |
|
- | |||||
| 10 | WPW10307490 | Trim, Door Shelf (Replaces: 2219982) |
|
Immediately | $ 23.11 | ||||
| 11 | WP2182181 | Thimble, Top (for Stainless Steel Models) (Replaces: 2308091) |
|
$ 7.76 | |||||
| 11 | 2308050 | Thimble, Top (for White, Black, Biscuit, And Monochromatic Stainless Models) |
|
- | |||||
| 12 | W10132977 | Door Closer, Upper Cam |
|
$ 12.16 | |||||
| 13 | WPW10142233 | Screw (Replaces: W10142233) |
|
$ 8.39 | |||||
| 14 | 2306940B | Bracket, Door Stop (black) |
|
$ 37.11 | |||||
| 14 | W10215319 | Bracket, Door Stop (chrome) |
|
- |
