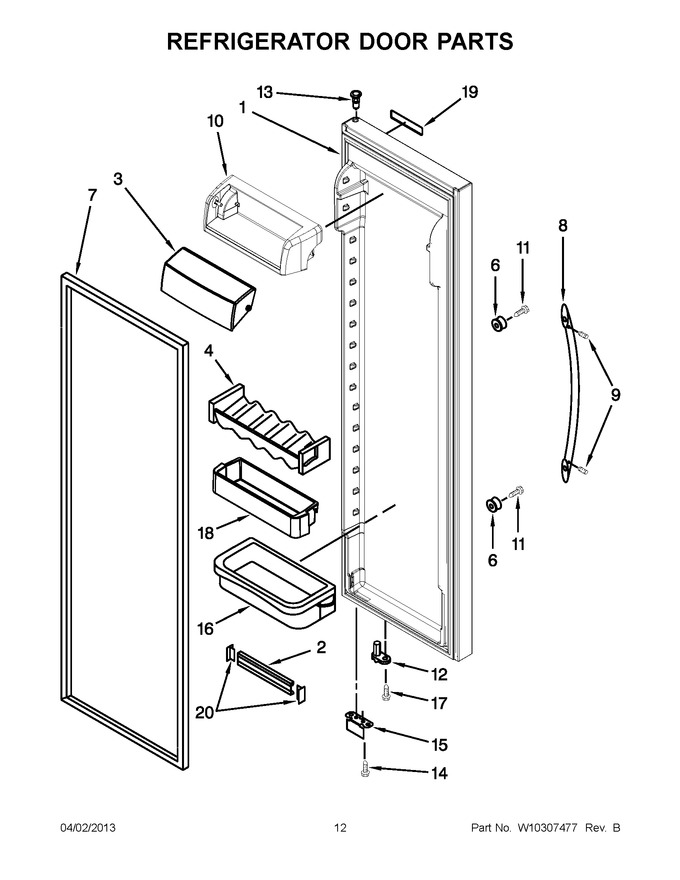

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Parts


09 - Air Flow Parts


10 - Control Box Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10128348		Refrigerator Door (includes No.7) (black)		Appelez-nous	-
1	W10128346		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
1	2307199SAP		Refrigerator Door (includes No.7) (mono Stainless)		Appelez-nous	-
1	2307199S		Refrigerator Door (includes No.7) (stainless)		Appelez-nous	-
2	2203087K		Trim, Shelf		Appelez-nous	-
3	2255421		Door, Dairy				$ 34.76
4	2223883		Caddy, Can				$ 34.98
6	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.51
7	2223911		Door Gasket, Magnetic (black)		Appelez-nous	-
7	2326342		Door Gasket, Magnetic (grey)		Appelez-nous	-
7	2223841		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
8	2319727B		Handle, Door (black)				$ 109.87
8	2319727W		Handle, Door (white)				$ 106.80
8	2319727S		Handle, Door (stainless)				$ 133.96
9	WPW10010150		Screw (black)   (Replaces: W10010150)				$ 7.88
9	W11366418		Screw, Silver   (Replaces: W10010140)			Immediately	$ 15.79
10	2223879		Compartment, Dairy				$ 40.49
11	WP488163		Screw   (Replaces: 488208)				$ 7.54
12	2307048		Closer, Door		Appelez-nous	-
13	WP2182181		Thimble-top   (Replaces: 2308091)				$ 7.76
14	WP489483		Screw   (Replaces: 489420)				$ 10.87
15	2306940B		Bracket, Door Stop (black)				$ 37.11
15	2306940		Bracket, Door Stop (silver)				$ 97.08
16	WP2223860		Bin, Door   (Replaces: 2223860)			Immediately	$ 84.05
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
18	WP2224173		Bin, Shallow Door   (Replaces: 2224173)				$ 87.32
19	WPW10243392		Nameplate (black)   (Replaces: W10046640)				$ 70.19
19	WPW10243393		Nameplate (white)   (Replaces: W10046670)				$ 66.65
19	W10046610		Nameplate (grey)				$ 33.40
20	WP2156006		Plug, Trim   (Replaces: 2156006)			Immediately	$ 12.18

    View Diagram in Separate Window       Print Part List
