SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Parts


09 - Air Flow Parts


10 - Control Box Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

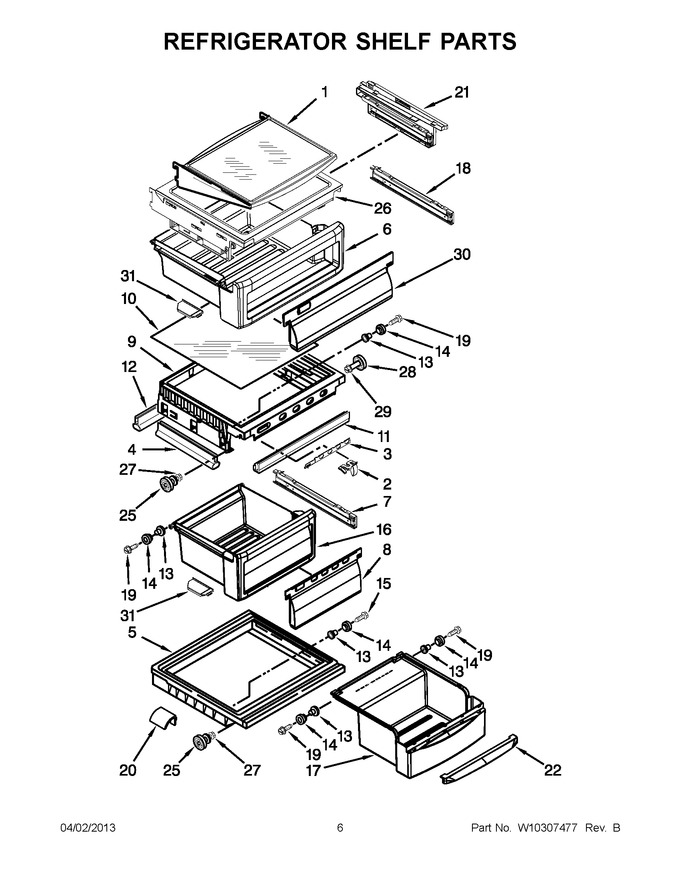

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10235943		Assembly, Shelf				$ 336.71
2	2301025		Knob, Humidity Control				$ 74.39
3	2301026		Slide, Humidity Control		Appelez-nous	-
4	2301117		Gasket, Side				$ 143.37
5	WPW10270150		Assembly, Meat Cover   (Replaces: 2203027)				$ 342.45
6	2301023		Assembly, Snack Pan		Appelez-nous	-
7	2301549		Glide Assembly, Crisper Pan (left Hand)				$ 123.81
7	2301548		Glide Assembly, Crisper Pan (right Hand)				$ 224.83
8	2301001		Window, Crisper Pan				$ 75.59
9	2301028		Glass, Meat Pan Cover				$ 85.17
10	2301009		Cover, Crisper				$ 139.09
11	WP1125528		Gasket, Front   (Replaces: 2301116)				$ 153.99
12	2301115		Gasket, Rear		Appelez-nous	-
13	2174478		Eyelet, Roller				$ 5.70
14	2188212		Roller		Appelez-nous	-
15	WPW10272364		Screw (stainless)   (Replaces: 489211)			Immediately	$ 10.82
16	W10916292		Assembly, Crisper Pan   (Replaces: 2301031)				$ 199.20
17	2223790		Assembly, Meat Pan				$ 154.82
18	2301550		Glide Assembly, Snack Pan (right Hand)				$ 150.39
18	2301551		Glide Assembly, Snack Pan (left Hand)				$ 239.42
19	WP489261		Screw (stainless)   (Replaces: 489261)				$ 7.61
20	2223487		Deflector				$ 83.68
21	2301569		Support Assembly (right Hand)				$ 118.73
21	2301570		Support Assembly (left Hand)				$ 125.92
22	2203031		Handle, Meat Pan				$ 67.06
25	W11223328		Assembly, Shelf Stud   (Replaces: W10173126)			Immediately	$ 14.07
26	2301566		Assembly, Pan Shelf				$ 151.83
27	WP3-24004-109		Screw   (Replaces: W10191954)				$ 8.05
28	W11527119		Assembly, Shelf Stud   (Replaces: W10173127)		Appelez-nous	-
29	W10191952		Screw				$ 5.65
30	2301006		Window, Snack Pan				$ 135.77
31	2301016		Cap, Snack Pan (right Hand)		Appelez-nous	-
31	2301017		Cap, Snack Pan (left Hand)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
