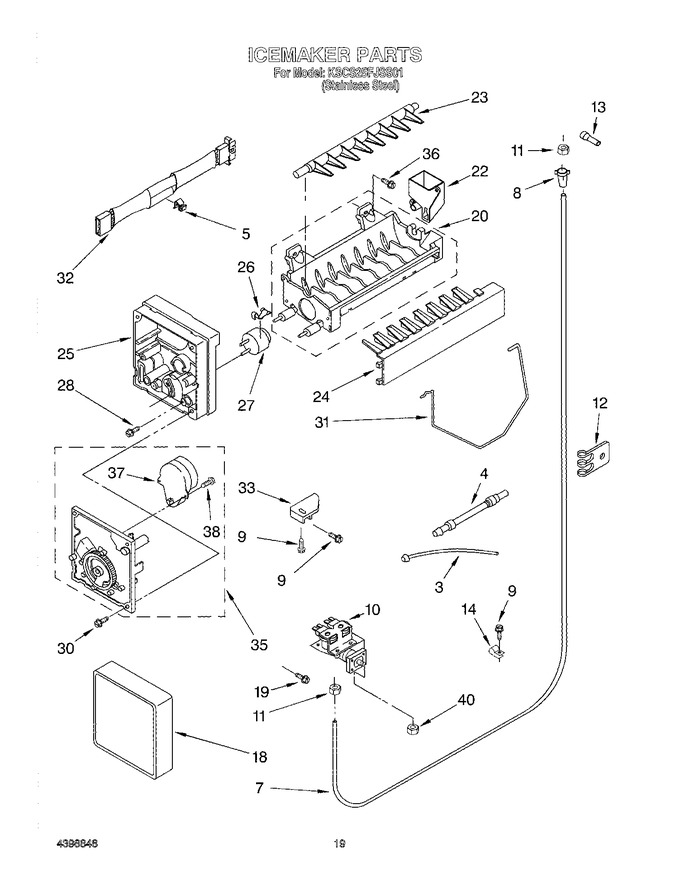

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | W11496481 | Tube, Filter Outlet (Replaces: 2203127) |
|
Immediately | $ 37.19 | ||||
| 4 | 2203198 | Tube, Filter Inlet |
|
- | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 7 | W10823511 | Tube, Water (Replaces: 2181940) |
|
Immediately | $ 32.41 | ||||
| 8 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 8.23 | |||||
| 9 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 10 | 2199838 | Valve, Solenoid |
|
- | |||||
| 11 | WP627018 | Nut, Compression (Replaces: 627018) |
|
$ 11.51 | |||||
| 12 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 11.92 | |||||
| 13 | 2203024 | Tube, Water Inlet |
|
$ 21.92 | |||||
| 14 | WP488878 | Tube Clamp (Replaces: 488878) |
|
$ 12.18 | |||||
| 18 | WPW10289690 | Cover (Replaces: 2174155) |
|
Immediately | $ 8.82 | ||||
| 19 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 22.22 | |||||
| 20 | WP542638 | Silicone Grease (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 20 | WPW10190929 | Mold & Heater Assembly (also Order (Replaces: 628228) |
|
$ 233.15 | |||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 53.75 | |||||
| 23 | WP627843 | Ejector (Replaces: 2194711) |
|
$ 87.78 | |||||
| 24 | WP2182124 | Ice Striper (Replaces: 2182124) |
|
$ 90.35 | |||||
| 25 | WP2195914 | Support (Replaces: 2194712) |
|
$ 109.80 | |||||
| 26 | WP2315522 | Retainer, Thermostat (Replaces: 627796) |
|
$ 11.60 | |||||
| 27 | 542369 | Cement Alumilastic) |
|
- | |||||
| 27 | WP627985 | Thermostat (also Order) (Replaces: 628397) |
|
$ 114.64 | |||||
| 28 | 8533917 | Screw (Replaces: 489322) |
|
$ 14.04 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 31 | W11807379 | Shut Off Arm (Replaces: 2171593) |
|
Immediately | $ 63.21 | ||||
| 32 | WP2187464 | Harness, Wiring (Replaces: 628256) |
|
$ 130.80 | |||||
| 33 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 33.78 | ||||
| 35 | W10190935 | Module Assembly (includes Items 37 And 38) (Replaces: 628399) |
|
Immediately | $ 110.07 | ||||
| 36 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 37 | W10190935 | Motor (Replaces: 628398) |
|
Immediately | $ 110.07 | ||||
| 38 | 489136 | Screw |
|
$ 10.80 | |||||
| 40 | 1129179 | Nut, Compression |
|
- | |||||
| 100 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 100 | 1117510 | Torx Key |
|
$ 5.84 | |||||
| 100 | 4317943 | Complete Icemaker Assembly |
|
Immediately | $ 183.45 | ||||
| 100 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 94.14 | |||||
| 100 | 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | |||||
| 100 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 100 | 4392899 | Brush Touch-up Kit (biscuit |
|
Immediately | $ 27.77 | ||||
| 100 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 100 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 100 | 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | |||||
| 100 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 100 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 100 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 100 | 876370 | Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) |
|
$ 243.14 | |||||
| 100 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 100 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | |||||
| 100 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | |||||
| 100 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 100 | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| 100 | 2199894 | Ice Contianer Assembly |
|
- | |||||
| 100 | 2160606 | Ice Crusher Mechanism Assembly |
|
- | |||||
| 100 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 100 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 100 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | |||||
| 100 | 876370 | Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | |||||
| 100 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 100 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 100 | 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- |
