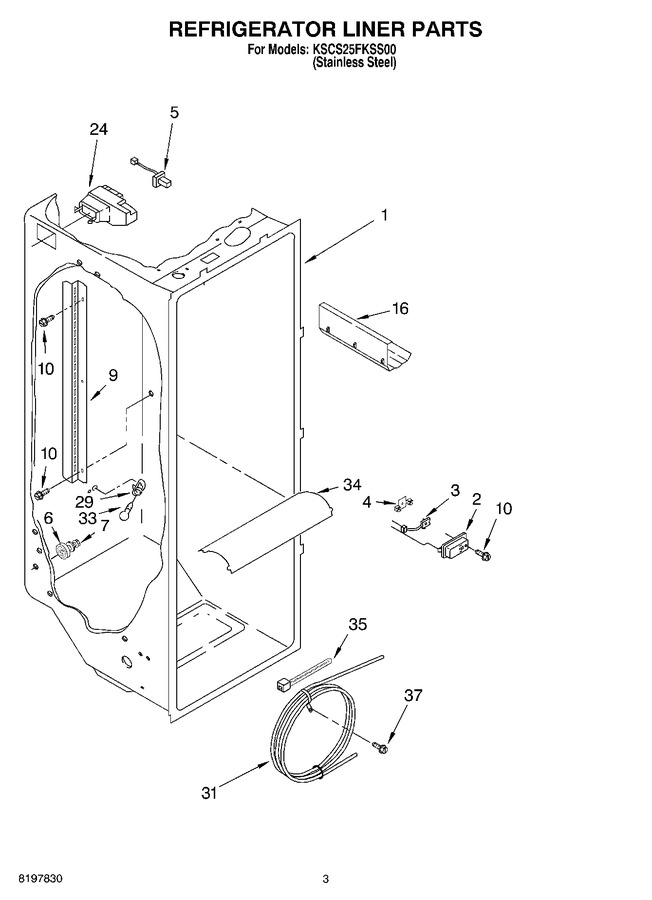

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1116793		Cover, Thermistor				$ 14.63
3	WP2188820		Thermistor   (Replaces: 2213442)			Immediately	$ 30.85
4	2209204		Clip, Thermistor		Appelez-nous	-
5	2220782		Air Baffle Assy		Appelez-nous	-
6	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.77
7	WP3-24004-109		Screw   (Replaces: 3400894)				$ 9.14
9	2181796		Ladder, Shelf		Appelez-nous	-
10	WP489478		Screw   (Replaces: 489478)				$ 8.18
16	W10777924		Rack, Wine & Egg   (Replaces: 2179404)				$ 24.78
24	2214367		Air Diffuser Assembly		Appelez-nous	-
29	4387478		Socket   (Replaces: 2162085)			Immediately	$ 115.67
31	WP2256126		Reservoir   (Replaces: 2196171)				$ 177.29
33	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
34	2203266		Light Lens				$ 45.86
35	WP2205813		Strap   (Replaces: 2205813)				$ 8.11
37	WP489478		Screw   (Replaces: 489478)				$ 8.18

    View Diagram in Separate Window       Print Part List
