SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)

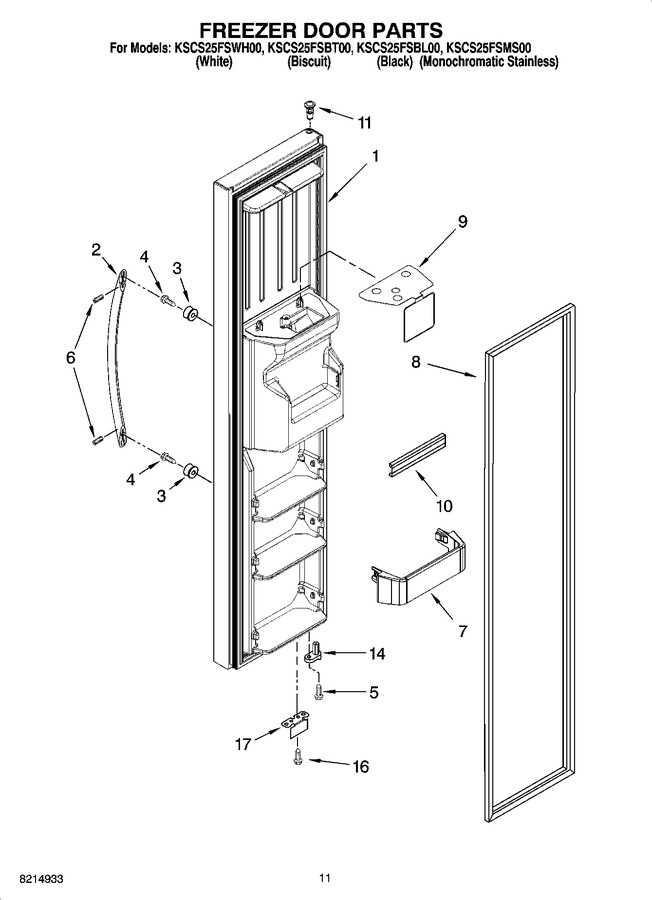

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2318822W		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2318822T		Freezer Door (includes 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2318822B		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2318822SU		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
2	2319727W		Handle (includes 6) (white)				$ 106.80
2	2319727T		Handle (includes 6) (biscuit)		Appelez-nous	-
2	2319727B		Handle (includes 6) (black)				$ 109.87
2	2319727S		Handle (includes 6) (stainless Steel)				$ 133.96
3	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
4	WP488163		Screw   (Replaces: 488208)				$ 7.54
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
6	WPW10010150		Screw (black)   (Replaces: W10010150)				$ 7.88
6	W11366418		Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
7	2223559K		Shelf Bin (3)		Appelez-nous	-
8	2306995		Door Gasket, Magnetic (black)   (Replaces: 2223910)				$ 315.49
8	2223325		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
9	2305474		Safety Barrier		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
11	2308050		Thimble, Top		Appelez-nous	-
14	WP2223752		Door Closer, Upper Cam   (Replaces: 2223752)				$ 20.15
16	WP489483		Screw   (Replaces: 489420)				$ 10.87
17	2306940B		Bracket, Door Stop (black)				$ 37.11
17	2306940		Bracket, Door Stop (chrome)				$ 97.08

    View Diagram in Separate Window       Print Part List
