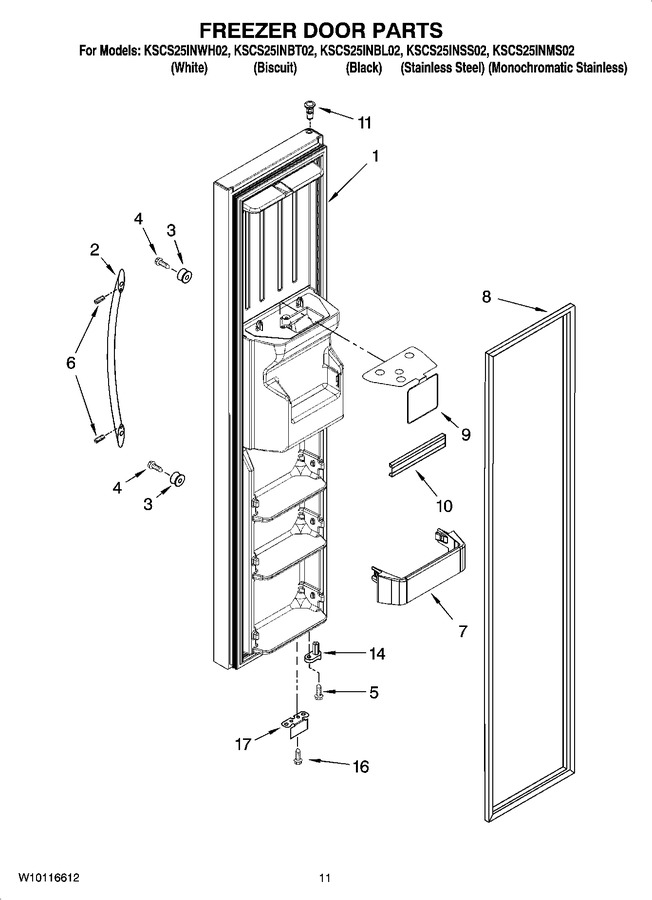

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2320114W | Freezer Door (includes 8 And Dispenser Front Parts) (white) |
|
- | |||||
| 1 | 2320114T | Freezer Door (includes 8 And Dispenser Front Parts) (biscuit) |
|
- | |||||
| 1 | 2320114B | Freezer Door (includes 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | 2320114SB | Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel) |
|
- | |||||
| 1 | 2320114SU | Freezer Door (includes 8 And Dispenser Front Parts) (monochromatic Stainless) |
|
- | |||||
| 2 | 2304832W | Handle (includes 6) (white) |
|
- | |||||
| 2 | 2304832T | Handle (includes 6) (biscuit) |
|
- | |||||
| 2 | 2304832B | Handle (includes 6) (black) |
|
- | |||||
| 2 | 2304832S | Handle (includes 6) (stainless Steel) |
|
$ 131.26 | |||||
| 3 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 4 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 5 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 6 | W11366418 | Screw (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 7 | 2304925K | Shelf Bin (3) |
|
- | |||||
| 8 | 2306995 | Door Gasket, Magnetic (black) (Replaces: 2223910) |
|
$ 315.49 | |||||
| 8 | 2223325 | Door Gasket, Magnetic (mist Beige) |
|
- | |||||
| 9 | 2304895 | Safety Barrier |
|
- | |||||
| 10 | WPW10307490 | Trim, Door Shelf (Replaces: 2219982) |
|
Immediately | $ 23.11 | ||||
| 11 | WP2182181 | Thimble, Top (for Stainless Steel And Monochromatic Stainless Models) (Replaces: 2308091) |
|
$ 7.76 | |||||
| 11 | 2308050 | Thimble, Top (for White, Black, & Biscuit Models) |
|
- | |||||
| 14 | 2307050 | Door Closer, Upper Cam |
|
$ 39.47 | |||||
| 16 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 17 | 2306940B | Bracket, Door Stop (black) |
|
$ 37.11 | |||||
| 17 | 2306940 | Bracket, Door Stop (chrome) |
|
$ 97.08 |
