SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts

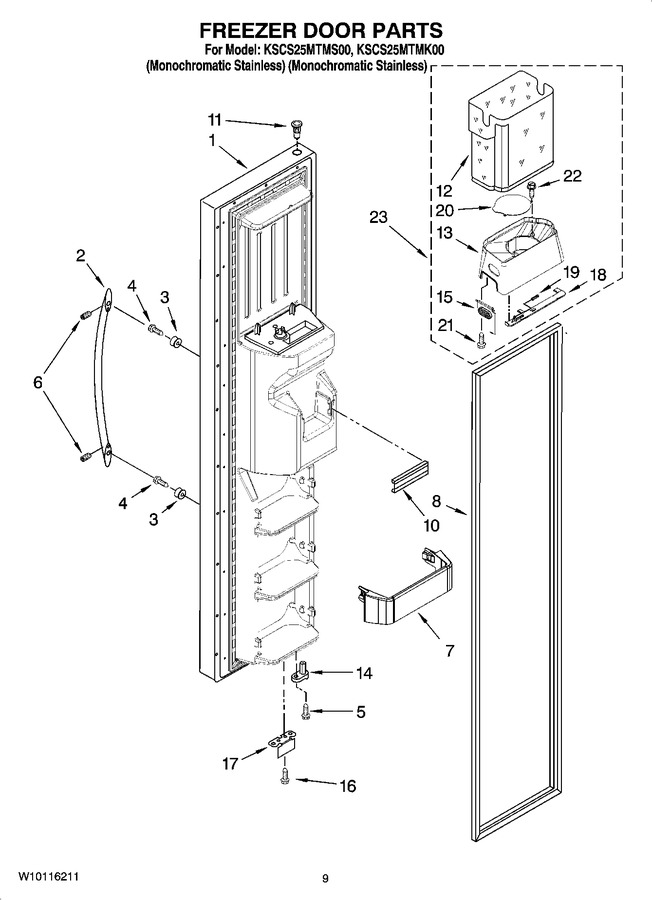

06 - Freezer Door Parts


07 - Air Flow Parts


08 - Control Parts


09 - Unit Parts


10 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2307177SA		Freezer Door (includes 8 And Dispenser Front Parts) (monochromatic Stainless)		Appelez-nous	-
2	2319727S		Handle (stainless Steel)				$ 133.96
3	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
4	WP488163		Screw   (Replaces: 488208)				$ 7.92
5	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
6	W11366418		Set Screw   (Replaces: W10010140)			Immediately	$ 15.79
7	2304925K		Shelf Bin (3)		Appelez-nous	-
8	2223325		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 24.27
11	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
12	2223317		Upper Bin				$ 74.94
13	2255580		Lower Bin		Appelez-nous	-
14	2307050		Thimble Cam, Fc				$ 39.47
15	WP2315403		Button, Bin   (Replaces: 2301345)				$ 34.41
16	WP489483		Screw   (Replaces: 489420)				$ 11.41
17	2306940		Bracket, Door Stop (chrome)				$ 101.93
18	2212371		Latch, Bin		Appelez-nous	-
19	WP2198608		Spring, Latch   (Replaces: 2198608)				$ 7.55
20	2313342		Cover, Crusher		Appelez-nous	-
21	2198671		Screw (2)				$ 10.92
22	WP3400065		Screw (2)   (Replaces: 3400065)			Immediately	$ 8.18
23	2313372		Ice Container (complete)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
