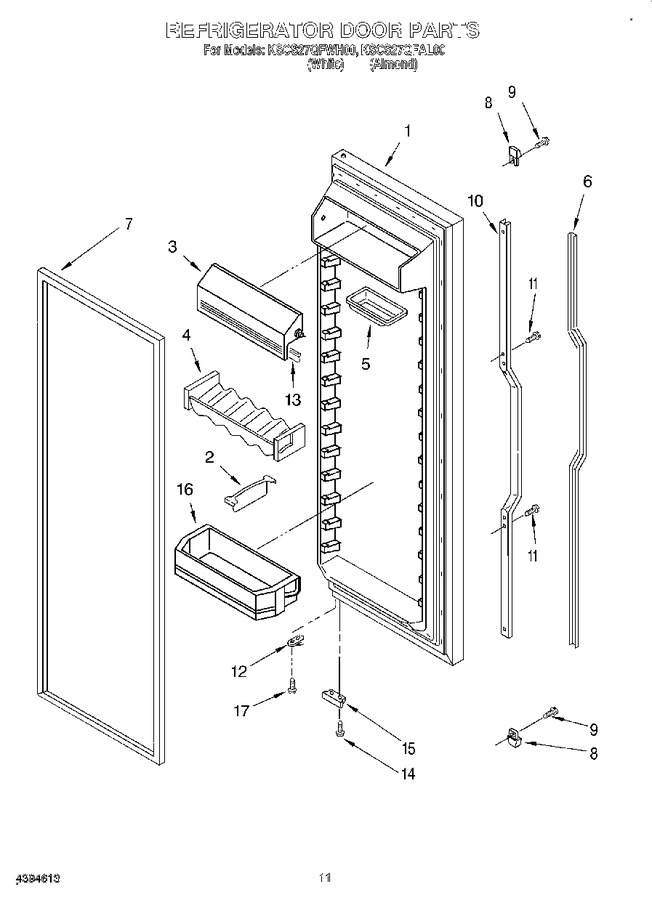

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194236W		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
1	2194236N		Refrigerator Door (includes No.7) (almond)		Appelez-nous	-
2	2171283		Load, Lock (4)		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Tray, Butter		Appelez-nous	-
6	2173825		Insert, Handle (white)		Appelez-nous	-
6	2173828		Insert, Handle (almond)		Appelez-nous	-
7	2159075		Door, Gasket Magnetic (service)			Immediately	$ 333.00
8	2194778W		End Cap, Handle (white)		Appelez-nous	-
8	2194778N		End Cap, Handle (almond)		Appelez-nous	-
9	489075		Screw		Appelez-nous	-
10	2194777W		Retainer, Insert (white)		Appelez-nous	-
10	2194777N		Retainer, Insert (almomd)		Appelez-nous	-
11	WP489463		Screw   (Replaces: 489463)				$ 8.25
12	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
13	2159124		Gasket		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 11.41
15	2155331		Bracket, Door Stop		Appelez-nous	-
16	2171062		Shelf Bin (4)				$ 40.08
17	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
