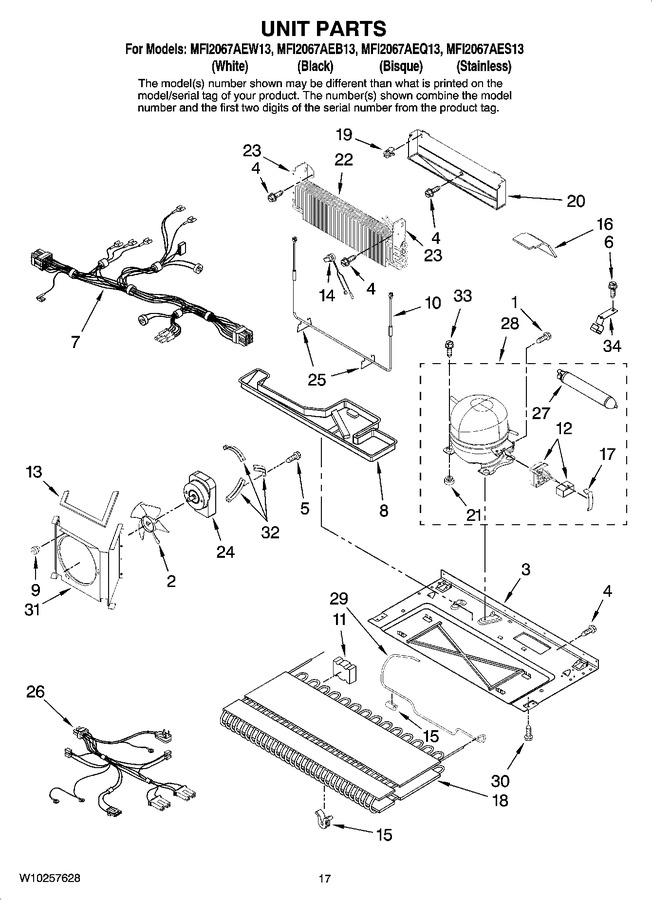

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw   (Replaces: 67006433)				$ 7.32
2	W10156818		Blade, Fan   (Replaces: W10162928)			Immediately	$ 62.11
3	12457108		Basepan				$ 93.58
4	67006425		Screw			Immediately	$ 7.30
5	WP67004954		Screw (3)   (Replaces: 67004954)				$ 8.18
6	WP33001882		Screw, Clip   (Replaces: 67006737)				$ 83.71
7	W10850438		Harness, Evap Heater   (Replaces: W10119239)			Immediately	$ 306.39
8	WP12579803		Pan, Drain   (Replaces: 67007175)				$ 257.73
9	61004743		Grommet (3)				$ 5.51
10	W10162932		Heater, Defrost		Appelez-nous	-
11	12933001		Block, Condenser		Appelez-nous	-
12	W10613606		Relay Assy. (incl. Capacitor)   (Replaces: 67005560)			Immediately	$ 86.59
13	WP854334		Seal, Condenser Shroud   (Replaces: 61003210)				$ 13.94
14	WP67006387		Thermostat, Defrost   (Replaces: 67006387)			Immediately	$ 123.56
15	67005680		Grommet (7)				$ 22.10
16	12820504		Pad-acoustic				$ 54.68
17	67007052		Clip, Capacitor		Appelez-nous	-
18	WP67006131		Condenser   (Replaces: 67006131)				$ 385.08
19	10623002		Clip, Evaporator				$ 12.11
20	W11547653		Tray, Drip   (Replaces: 12225403WD)				$ 57.02
21	WPW10169124		Grommet (4)   (Replaces: 67003493)				$ 7.55
22	12002730		Evaporator   (Replaces: W10184230)				$ 363.64
23	12963002SP		Dam (left Side)		Appelez-nous	-
23	12963102SP		Dam (right Side)		Appelez-nous	-
24	W11613295		Motor, Fan   (Replaces: 67004432)			Immediately	$ 143.68
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 148.18
26	13060201		Harness, Unit With Power Cord		Appelez-nous	-
27	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 30.78
28	W10160407		Compressor (includes Items 12,17,21,& 27)   (Replaces: 67005565)				$ 629.92
29	WP12866903		Tube, Discharge   (Replaces: 67004700)			Immediately	$ 140.21
30	12992101		Screw   (Replaces: 67006573)		Appelez-nous	-
31	W10162963		Shroud		Appelez-nous	-
32	WP67004953		Bracket, Fan Motor   (Replaces: 67004953)				$ 72.27
33	12846902		Screw (3)				$ 13.64
34	10547003		Clip, Drier		Appelez-nous	-
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access(3/16``)			Immediately	$ 95.92
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
