SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Motor And Ice Container


05 - Refrigerator Door


06 - Freezer Door


07 - Dispenser Front


08 - Unit


09 - Freezer Liner


10 - Control


11 - Icemaker


12 - Air Flow, Lit/optional

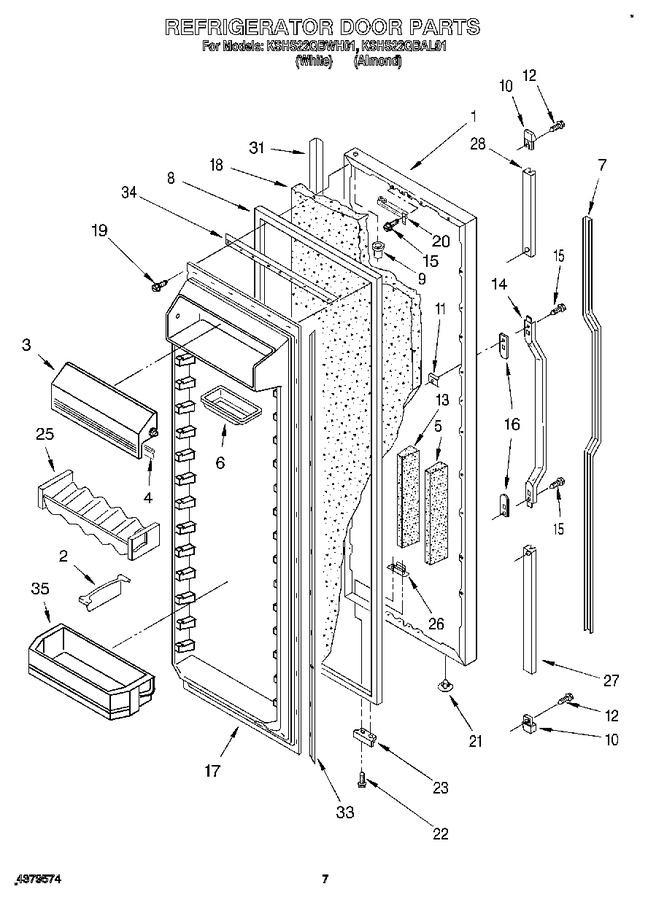

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2156087		Refrigerator Door Panel (almond (also Order Item 18))		Appelez-nous	-
1	2156085		Refrigerator Door Panel (white)		Appelez-nous	-
2	1117999		Load Lock (4)		Appelez-nous	-
3	1125733		Door, Compartment		Appelez-nous	-
4	1125695		Gasket, Utility Door		Appelez-nous	-
5	1126149		Dike, Door Handle Side		Appelez-nous	-
6	1125936		Butter, Tray		Appelez-nous	-
7	1117950		Insert, Handle (white)		Appelez-nous	-
7	1117951		Insert, Handle (almond)		Appelez-nous	-
8	2188404A		Door Gasket, Magnetic   (Replaces: 1125927)				$ 269.26
9	509929		Cap, Hinge Sleeve		Appelez-nous	-
10	1107341		End Cap, Handle		Appelez-nous	-
11	941242		Screw Anchor		Appelez-nous	-
12	489075		Screw		Appelez-nous	-
13	1126150		Dike, Door Hinge Side		Appelez-nous	-
14	1107215		Handle Assembly		Appelez-nous	-
15	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.79
16	1107651		Spacer, Handle		Appelez-nous	-
17	1117904		Panel, Interior Door		Appelez-nous	-
18	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
19	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.86
20	1117898		Door Closer, Upper Cam		Appelez-nous	-
21	2151653		Hole Plug		Appelez-nous	-
22	WP999367		Screw   (Replaces: 489367)				$ 7.86
23	2155331		Bracket, Door Stop		Appelez-nous	-
25	1125981		Holder, Beverage		Appelez-nous	-
26	2155335		Tap, Plate		Appelez-nous	-
27	1117953		Retainer, Insert (bottom)		Appelez-nous	-
28	1107241		Retainer, Insert		Appelez-nous	-
31	1119061		Trim, Door		Appelez-nous	-
33	1117766		Gasket Retainer, Side (2)				$ 36.55
34	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
35	4318416		Black Grille Kit		Appelez-nous	-
35	1125555		Shelf Bin (4)		Appelez-nous	-
35	4318331		Trim Kit Trim Kit Panel		Appelez-nous	-
35	4211136		Trim Kit Panel (white)		Appelez-nous	-
35	4211135		Almond Handle Insert		Appelez-nous	-
35	4318334		Handle Insert (black)		Appelez-nous	-
35	4318335		Woodgrain		Appelez-nous	-
