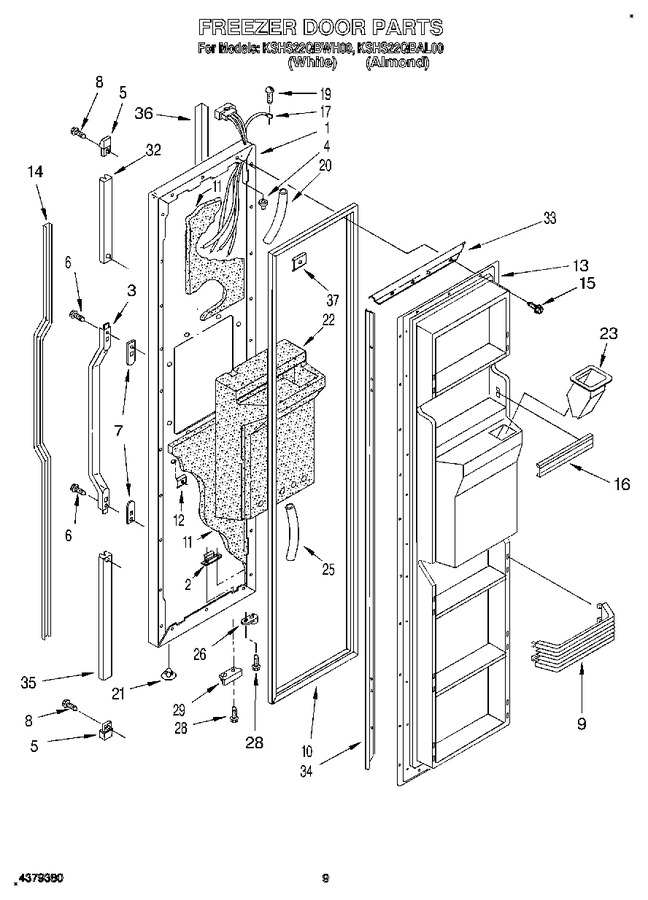

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2156131		Freezer, Door Panel (also Order Item 11) (white)		Appelez-nous	-
1	2156133		Freezer, Door Panel (also Order Item 11) (almond)		Appelez-nous	-
2	2155335		Tap, Plate		Appelez-nous	-
3	1107215		Handle Assembly		Appelez-nous	-
4	939886		Seal, Hinge Pin		Appelez-nous	-
5	1107341		End Cap (2)		Appelez-nous	-
6	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.79
7	1107651		Spacer, Handle		Appelez-nous	-
8	489075		Screw		Appelez-nous	-
9	1117928		Shelf Bin (4)		Appelez-nous	-
10	2188405A		Door Gasket, Magnetic   (Replaces: 1125926)				$ 351.08
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	941242		Screw Anchor (2)		Appelez-nous	-
13	2156046		Panel, Interior Door		Appelez-nous	-
14	1117950		Insert, Handle (white)		Appelez-nous	-
14	1125721		Insert, Handle (almond)		Appelez-nous	-
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.86
16	1126496		Trim, Door Shelf		Appelez-nous	-
17	1119212		Harness, Door		Appelez-nous	-
19	WP488234		Screw   (Replaces: 489422)				$ 6.74
20	1119059		Tube, Door Wiring		Appelez-nous	-
21	2151653		Hole Plug		Appelez-nous	-
22	2149014		Insulation, Dispenser		Appelez-nous	-
23	2156147		Chute, Ice		Appelez-nous	-
25	2147080		Tube, Door Wiring		Appelez-nous	-
26	4318165		Door Closer, Upper Cam   (Replaces: 2155313)			Immediately	$ 27.36
28	WP999367		Screw   (Replaces: 489367)				$ 7.86
29	2155331		Bracket, Door Stop		Appelez-nous	-
32	1107241		Retainer, Insert		Appelez-nous	-
33	1117767		Gasket Retainer, Top & Bottom		Appelez-nous	-
34	1117766		Gasket Retainer, Side (2)				$ 36.55
35	1117953		Retainer, Insert		Appelez-nous	-
36	1119061		Trim, Door		Appelez-nous	-
37	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.50
