SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner, Optional


04 - Unit


05 - Shelf

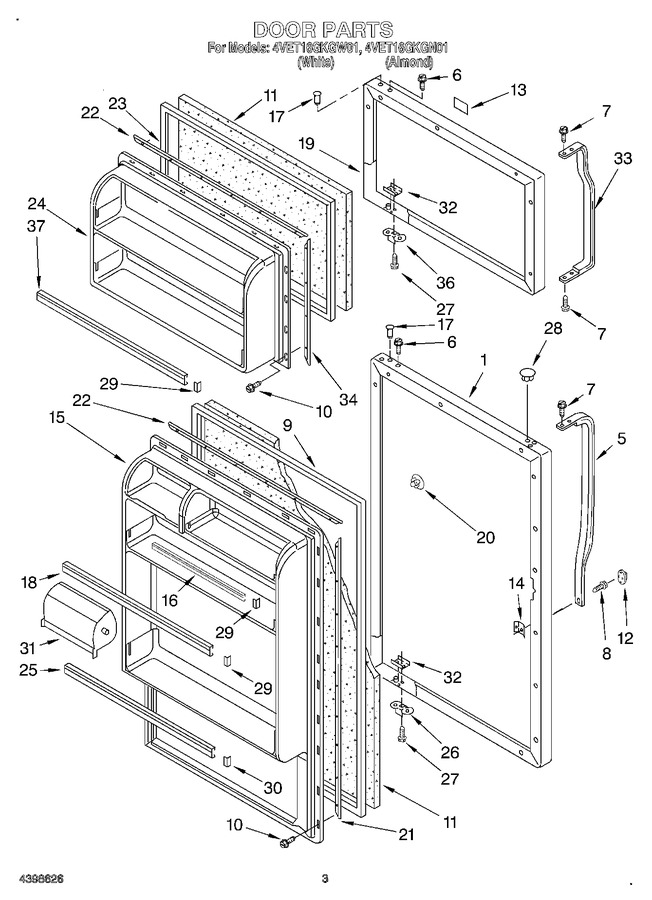

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2201546		Refrigerator Door Panel (also Order Item 11) (white)		Appelez-nous	-
1	2201547		Refrigerator Door Panel (also Order Item 11) (almond)		Appelez-nous	-
5	WP2202807W		Handle, Center   (Replaces: 2202807W)				$ 155.22
6	WP8281206		Screw   (Replaces: 489028)				$ 7.94
7	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
8	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
9	2188448A		Door Gasket, Magnetic   (Replaces: 2191888)				$ 154.65
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	WP2202819W		Cover, Screw   (Replaces: 2202819W)			Immediately	$ 7.75
13	2183209		Nameplate (almond Model)		Appelez-nous	-
13	2157907		Nameplate (white)				$ 6.56
14	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
15	2173725		Panel, Interior Door (refrigerator)		Appelez-nous	-
16	2192654		Trim, Door Shelf (upper)		Appelez-nous	-
17	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
18	2192655		Trim, Door (middle)		Appelez-nous	-
19	2201545		Freezer Door Panel (also Order Item 11) (almond)		Appelez-nous	-
19	2201544		Freezer Door Panel (also Order Item 11) (white)		Appelez-nous	-
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.40
20	2189008		Hole Plug (almond)		Appelez-nous	-
21	1122551		Retainer, Gasket		Appelez-nous	-
22	1120614		Retainer, Gasket				$ 27.51
23	2188462A		Door Gasket, Magnetic   (Replaces: 2191889)			Immediately	$ 114.77
24	9790358		Interior Door Panel (freezer)		Appelez-nous	-
25	WP2266738		Trim, Door Shelf (lower)   (Replaces: 2192656)				$ 111.69
26	944036		Bracket, Door Stop		Appelez-nous	-
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
28	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.80
28	989196		Hole Plug (almond)		Appelez-nous	-
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
31	2174801		Compartment Door		Appelez-nous	-
32	2183198		Tap Plate		Appelez-nous	-
33	WP2202098		Handle, Fc   (Replaces: 2202098)				$ 149.35
34	1122553		Retainer, Gasket		Appelez-nous	-
36	944035		Stop, Door		Appelez-nous	-
37	WP2266727		Trim-door (2)   (Replaces: 2192653)			Immediately	$ 92.50

    View Diagram in Separate Window       Print Part List
