SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Freezer Liner Parts

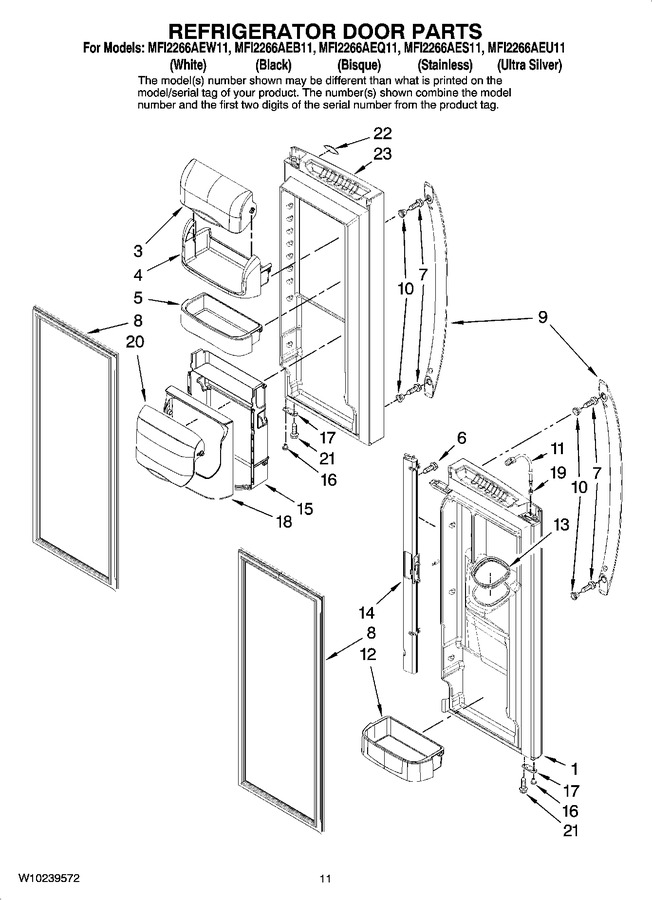

06 - Refrigerator Door Parts


07 - Dispenser Front Parts


08 - Freezer Door Parts


09 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10160133		Door, Left (white)		Appelez-nous	-
1	W10160124		Door, Left (black)				$ 523.35
1	W10160127		Door, Left (bisque)		Appelez-nous	-
1	W10160130		Door, Left (stainless)		Appelez-nous	-
1	W10166239		Door, Left (ultra Silver)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 67003637)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 83.82
5	WP67006313		Bin, Shelf (chiller Top)   (Replaces: 67006313)			Immediately	$ 80.59
6	67006425		Screw   (Replaces: 67006400)			Immediately	$ 6.95
7	67006901		Screw, Handle			Immediately	$ 8.02
8	W11378944		Gasket, Door (right Door) (black)   (Replaces: W10163898)			Immediately	$ 187.59
8	W11501500		Gasket, Door (left Door) (white)   (Replaces: W10163993)				$ 272.06
8	W10830052		Gasket, Door (left Door) (black)   (Replaces: W10163994)				$ 342.63
8	W11396037		Gasket, Door (right Door) (white)   (Replaces: W10163896)				$ 297.77
9	67006982		Door Handle (bisque)				$ 188.95
9	13004701W		Door Handle (white)   (Replaces: 67006114)				$ 184.73
9	67006115		Door Handle (black)		Appelez-nous	-
9	12658798S		Door Handle (stainless)		Appelez-nous	-
10	WP67006113		Mount, Handle   (Replaces: 67006113)			Immediately	$ 11.96
11	12962106		Waterline, Door				$ 126.75
12	W10166007		Bin, Shelf (gallon)				$ 34.58
13	WPW10287601		Seal, Ice Chute   (Replaces: 67007108)			Immediately	$ 31.20
14	WP12722813W		Mullion, Door (white)   (Replaces: W10164404)				$ 325.02
14	WP12722813W		Mullion, Door (bisque)   (Replaces: W10164406)				$ 325.02
14	WPW10151713		Mullion, Door (black)   (Replaces: W10164405)				$ 325.79
15	W11266639		Frame, Chiller (rear)   (Replaces: 67006315)				$ 256.79
16	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 86.02
16	WP67003638		Closure, Door (white)   (Replaces: 67003638)			Immediately	$ 7.76
17	12968202W		Stop, Door (white)				$ 65.99
17	12968202Q		Stop, Door (bisque)		Appelez-nous	-
17	W11708403		Stop, Door (black)   (Replaces: 67007011)			Immediately	$ 14.05
18	W11266639		Frame, Chiller (front)   (Replaces: 67006314)				$ 256.79
19	12996601		Clip, Bushing Wire (left Door)   (Replaces: 67005954)				$ 10.05
20	WP67006312		Door, Chiller   (Replaces: 67006312)			Immediately	$ 82.18
21	WP98165		Screw   (Replaces: 67006473)				$ 8.00
22	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 67.14
23	W10166240		Door, Right (ultra Silver)		Appelez-nous	-
23	W10160129		Door, Right (stainless)		Appelez-nous	-
23	W10160126		Door, Right (bisque)		Appelez-nous	-
23	W10160123		Door, Right (black)		Appelez-nous	-
23	W10160132		Door, Right (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
