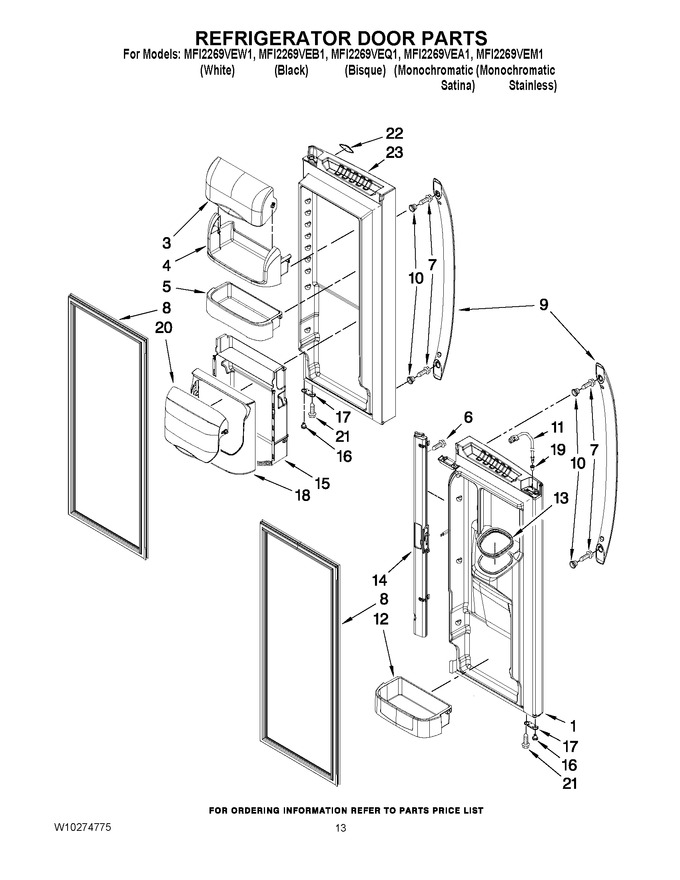

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12978036LQ		Door, Left (satina)		Appelez-nous	-
1	12978036SQ		Door, Left (mono Stainless)				$ 613.39
1	W10160133		Door, Left (white)		Appelez-nous	-
1	W10160124		Door, Left (black)				$ 523.35
1	W10160127		Door, Left (bisque)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
5	WP67006313		Bin, Shelf (chiller Top)   (Replaces: 12945801SP)			Immediately	$ 84.62
6	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
7	67006901		Screw, Handle   (Replaces: 12991703)			Immediately	$ 9.49
8	W10830048		Gasket, Door (left Door) (apollo Grey)   (Replaces: W10179334)			Immediately	$ 251.89
8	W10830052		Gasket, Door (left Door) (black)   (Replaces: W10163994)				$ 359.76
8	W11501500		Gasket, Door (left Door) (white)   (Replaces: W10163993)				$ 285.66
8	W11396037		Gasket, Door (right Door) (white)   (Replaces: W10163896)				$ 312.66
8	W11378944		Gasket, Door (right Door) (black)   (Replaces: W10163898)			Immediately	$ 187.59
8	W10830055		Gasket, Door (right Door) (apollo Grey)   (Replaces: W10163991)			Immediately	$ 229.10
9	67006982		Door Handle (bisque)   (Replaces: W10197297)				$ 198.40
9	13004701W		Door Handle (white)   (Replaces: W10197296)				$ 193.97
9	W10197298		Door Handle (black)		Appelez-nous	-
9	W11690159		Door Handle (stainless)   (Replaces: W10197295)				$ 173.76
10	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
11	12962106		Waterline, Door				$ 133.09
12	12840005		Bin, Shelf (gallon)		Appelez-nous	-
13	WPW10287601		Seal, Ice Chute   (Replaces: 12999902)			Immediately	$ 32.76
14	WP12722813W		Mullion, Door (bisque)   (Replaces: 12722813Q)				$ 341.27
14	WP12722813AP		Mullion, Door (apollo Grey)   (Replaces: 12722813AP)				$ 340.89
14	WP12722813W		Mullion, Door (white)   (Replaces: 12722813W)				$ 341.27
14	WPW10151713		Mullion, Door (black)   (Replaces: 12722813B)				$ 342.08
15	W11266639		Frame, Chiller (rear)   (Replaces: 12945601SP)				$ 269.63
16	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 90.32
16	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 8.15
16	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 61.46
17	W11703060		Stop, Door (apollo Grey)   (Replaces: 12968202AP)				$ 15.46
17	W11708403		Stop, Door (black)   (Replaces: 12968202B)			Immediately	$ 14.75
17	12968202W		Stop, Door (white)				$ 69.29
17	12968202Q		Stop, Door (bisque)		Appelez-nous	-
18	W11266639		Frame, Chiller (front)   (Replaces: 12945501SP)				$ 269.63
19	12996601		Clip, Bushing Wire (left Door)				$ 10.05
20	WP67006312		Door, Chiller   (Replaces: 12945701SP)			Immediately	$ 86.29
21	WP98165		Screw   (Replaces: 12990521)				$ 8.57
22	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 70.50
23	W10160123		Door, Right (black)		Appelez-nous	-
23	W10160126		Door, Right (bisque)		Appelez-nous	-
23	12978030LQ		Door, Right (satina)		Appelez-nous	-
23	W10160132		Door, Right (white)		Appelez-nous	-
23	12978030SQ		Door, Right (mono Stainless)				$ 804.24
