SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts

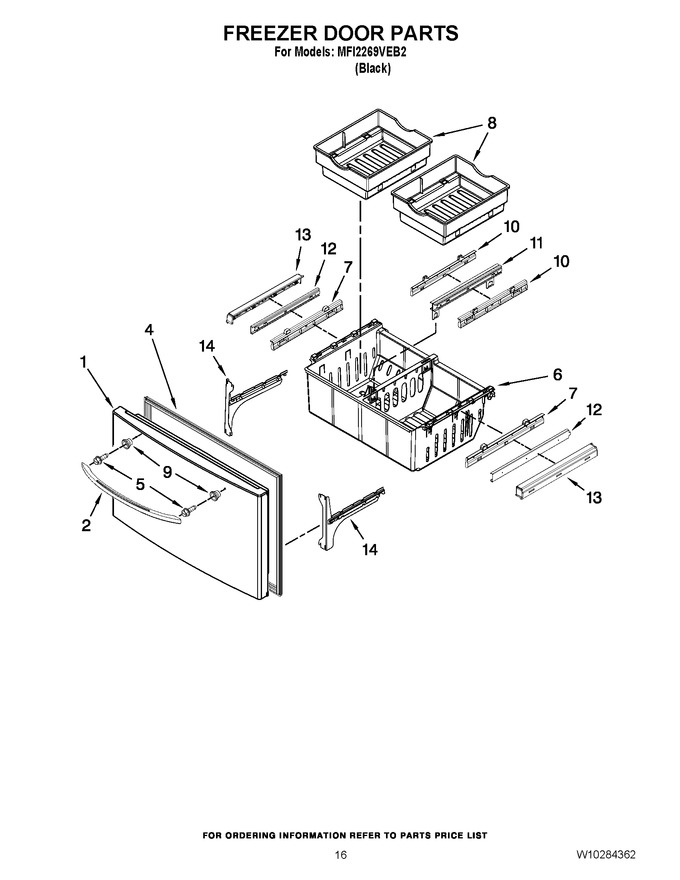

09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977868BQ		Freezer Door (black)   (Replaces: 12977836BQ)				$ 926.82
2	W10123794		Handle, Door (black)				$ 82.81
4	W10436254		Gasket, Door (black)   (Replaces: W10164047)				$ 272.93
5	67006901		Screw, Handle   (Replaces: 12991703)			Immediately	$ 9.49
6	W10166235		Bin, Lower   (Replaces: 13036201SP)				$ 184.72
7	W10166742		Adapter, Bin (outer)   (Replaces: 12925403SP)				$ 98.12
8	WP12924903		Bin, Upper (left)   (Replaces: 12924903)				$ 132.30
8	W10166236		Bin, Upper (right)   (Replaces: 13036302)				$ 257.27
9	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
10	12925404SP		Adapter, Bin (inner)				$ 45.32
11	WPW10235357		Bracket/glide Assembly   (Replaces: 12969701)			Immediately	$ 330.98
12	WPW10235367		Glide, Upper   (Replaces: 12925101)				$ 313.43
13	W10826788		Retainer, Glide (left)   (Replaces: 12925501SP)				$ 57.50
13	WP67006368		Retainer, Glide (right)   (Replaces: 12925502SP)				$ 192.90
14	WPW10330993		Bracket, Door Slide (right)   (Replaces: W10122148)				$ 166.09
14	WPW10330991		Bracket, Door Slide (left)   (Replaces: W10122147)				$ 164.31

    View Diagram in Separate Window       Print Part List
