SELECT A DIAGRAM

01 - Color Variation Parts


02 - Case, Gearing, And Planetary Unit

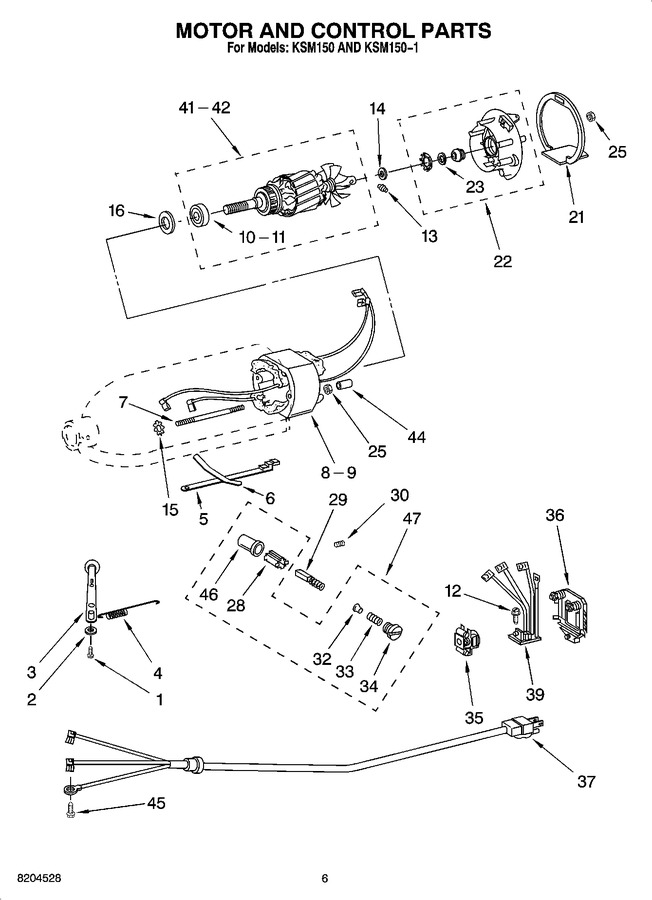

03 - Motor And Control Parts


04 - Base And Pedestal Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	6011-006971		Screw, Pivot   (Replaces: 110679)			Immediately	$ 3.59
2	WP116241		Washer, Spring   (Replaces: 116241)				$ 5.19
3	9709278		Switch Lever And Stud (almond Creme)   (Replaces: 3184195)				$ 26.31
3	WP9709276		Switch Lever And Stud (black)   (Replaces: 3184193)			Immediately	$ 5.32
3	WP9709277		Switch Lever And Stud (white On White)   (Replaces: 3184194)				$ 4.94
4	WP3183680		Spring, Control Plate   (Replaces: 3183680)				$ 4.79
5	W11557271		Speed Link & Cam   (Replaces: 3184176)			Immediately	$ 8.47
6	WP240205		Spring, Flat   (Replaces: 240205)				$ 4.99
7	W10851015		Screw, Stator   (Replaces: 240769)				$ 4.30
8	W10870869		Field Assembly (must Use With Item No. 41) 115 Volts   (Replaces: 9702695)			Immediately	$ 56.10
9	WPW10417246		Field Assembly (220 Volts) (must Use With Item 41)   (Replaces: 9701670)				$ 48.47
10	W11133634		Ball Bearing   (Replaces: 4159001)				$ 71.22
11	9708320		Ball Bearing		Appelez-nous	-
12	W11084238		Screw, Self Tapping 4-40 X 5/16`` Phil. Pan Hd. Type Tt   (Replaces: 3400402)		Appelez-nous	-
13	WP16998		Stud, Governor Drive   (Replaces: 16998)				$ 4.82
14	W11233557		Washer, Spacing Black, Gray, Red, White   (Replaces: 3180162)				$ 8.13
15	W11170663		Washer   (Replaces: 3400900)				$ 4.54
16	WP9704324		Washer, Ball Bearing (front)   (Replaces: 9704324)				$ 4.72
21	WP240775-1		Seal, End   (Replaces: 240775-1)			Immediately	$ 5.12
21	WP240775-1		International   (Replaces: 3184356)			Immediately	$ 5.12
22	WP3180526		Bracket, Bearing Assembly   (Replaces: 3180526)				$ 20.80
23	3180238		Washer, Felt		Appelez-nous	-
25	8533905		Nut, Machine Hex (10-24)				$ 26.90
28	W11656718		Insert, Brush Holder   (Replaces: 240680)				$ 5.22
29	WPW10380496		Brush, Carbon   (Replaces: 9706416)			Immediately	$ 4.25
30	W11176201		Set Screw, 10-24 X 1/4`` Hdls. Cup Pt   (Replaces: 9707926)				$ 4.75
32	WP116286		Cap, Spring Seat   (Replaces: 116286)				$ 4.77
33	WP116287		Spring, Cap   (Replaces: 116287)				$ 4.84
34	3184213		Cap, Brush Holder (almond Creme)		Appelez-nous	-
34	WP3184211		Cap, Brush Holder (white)   (Replaces: 3184211)				$ 4.54
34	WP3184212		Cap, Brush Holder (black)   (Replaces: 3184212)			Immediately	$ 4.79
35	WPW10330804		Governor Assembly   (Replaces: 17830)			Immediately	$ 16.39
36	WPW10119326		Control Plate Assembly   (Replaces: 240904-2)			Immediately	$ 17.43
37	W11112762		Cord & Plug 110 Volt-white (international)   (Replaces: 9702318)				$ 17.96
37	9704390		Cord And Plug-black (swiss)		Appelez-nous	-
37	W10908276		Cord And Plug-black (uk)   (Replaces: 9702315)		Appelez-nous	-
37	W11112762		Cord & Plug-blk (international)   (Replaces: 9702319)				$ 17.96
37	W11545825		Power Cord (black)   (Replaces: 9701026)			Immediately	$ 12.72
37	9704389		Cord And Plug (swiss)		Appelez-nous	-
37	W11396625		Power Cord (white)   (Replaces: 9701025)				$ 15.24
37	W10908276		Cord And Plug (uk)   (Replaces: 9702314)		Appelez-nous	-
39	W11174552		Phase Control Board (international)   (Replaces: 9706596)				$ 16.31
39	WPW10325124		Phase Control Board   (Replaces: 9706595)			Immediately	$ 17.30
41	W11133634		Armature & Bearing (115 V. Incls. Illus 11 Must Use With Illus. 8)   (Replaces: 9708315)				$ 71.22
42	W10900799		Armature/bearing   (Replaces: 241991-4)				$ 71.82
44	W11210996		Sleeve, Motor Stud   (Replaces: 4162634)		Appelez-nous	-
45	3184609		Screw, Self Tapping (10-32 X 1/4``) Phil. Pan Hd. Type Tt		Appelez-nous	-
46	WP3179908		Housing, Brush Holder   (Replaces: 3179908)				$ 4.35
47	4162546		Brush Holder (incls. Illus. 28, 32, 33, 34, & 46)				$ 23.37
