SELECT A DIAGRAM
01 - Color Variation Parts

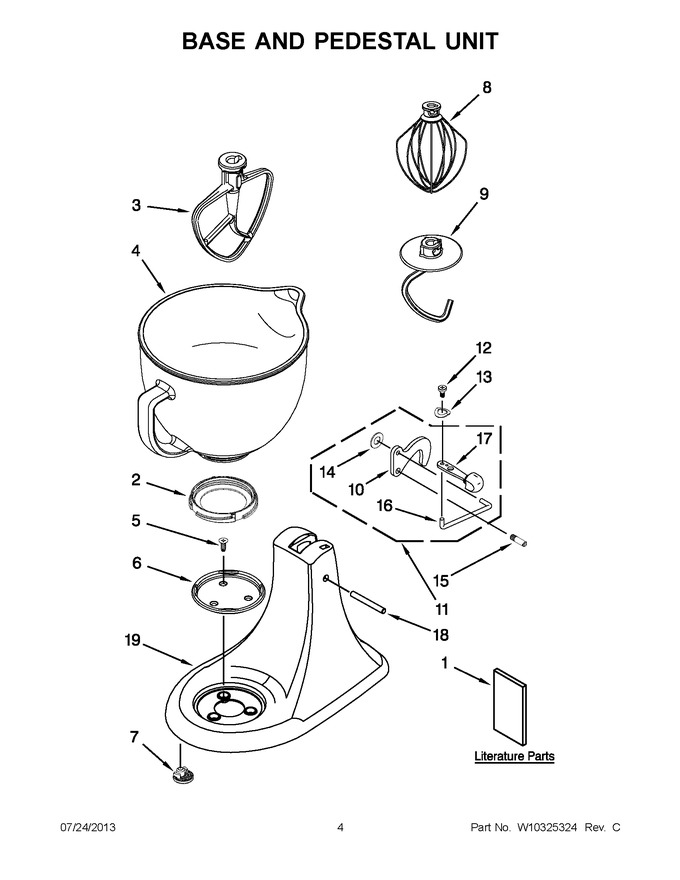

02 - Base And Pedestal Unit
03 - Case, Gearing And Planetary Unit
04 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9709785 | Use And Care Guide |
|
- | |||||
| 2 | WPW10220977 | Ring, Thread (Replaces: W10220977) |
|
$ 11.56 | |||||
| 3 | W11672200 | Beater, Flat (burnished) (Replaces: 9707572) |
|
$ 16.08 | |||||
| 4 | W11341654 | Bowl, Glass 5 Qt. (k5gb) (Replaces: W10154769) |
|
$ 96.78 | |||||
| 5 | W11544572 | Screw (Replaces: 3400020) |
|
$ 8.41 | |||||
| 6 | WPW10191926 | Cap, Bowl Screw (Replaces: W10191926) |
|
Immediately | $ 19.03 | ||||
| 7 | WP9709707 | Foot (Replaces: 9709707) |
|
Immediately | $ 4.42 | ||||
| 8 | WP9704329 | Whip, Wire (Replaces: 9704329) |
|
Immediately | $ 29.90 | ||||
| 9 | W11316221 | Hook, Dough (burnished) (Replaces: 9706626) |
|
Immediately | $ 35.73 | ||||
| 10 | W11246352 | Latch (Replaces: 9709055) |
|
$ 8.57 | |||||
| 11 | WP24452 | Latch, Link And Lever Assembly (black) (Replaces: 24452) |
|
Immediately | $ 8.06 | ||||
| 11 | W10608282 | Latch, Link And Lever Assembly (silk Chrome) |
|
- | |||||
| 12 | 6011-006971 | Screw (Replaces: 110679) |
|
Immediately | $ 3.59 | ||||
| 13 | WP116241 | Washer, Spring (Replaces: 116241) |
|
$ 5.19 | |||||
| 14 | W11218705 | Washer (Replaces: 8533912) |
|
$ 4.55 | |||||
| 15 | 103993 | Screw, Latch Bearing |
|
$ 24.95 | |||||
| 16 | W11232016 | Link, Latch (Replaces: 24450) |
|
$ 7.83 | |||||
| 17 | WP9709280 | Lever, Latch (black) (Replaces: 9709280) |
|
Immediately | $ 4.62 | ||||
| 17 | W10608281 | Lever, Latch (silk Chrome) |
|
- | |||||
| 18 | WP16910 | Pin, Hinge (Replaces: 16910) |
|
Immediately | $ 4.87 | ||||
| 19 | N/P | Pedestal (refer To Color Variation Parts Page) |
|
- |
