SELECT A DIAGRAM
New Model Search:

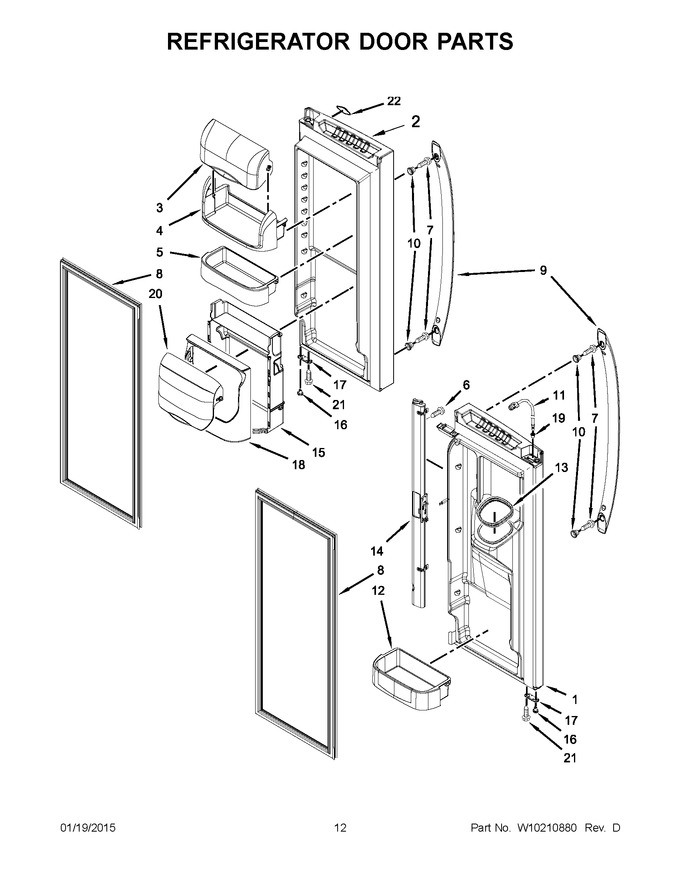

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10160133 | Door, Left (white) |
|
- | |||||
| 2 | W10160132 | Door, Right (white) |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 67003637) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 88.01 | ||||
| 5 | WP67006313 | Bucket, Shelf (Replaces: 67006313) |
|
Immediately | $ 84.62 | ||||
| 6 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 7 | WP3387230 | Screw (Replaces: 67002935) |
|
Immediately | $ 8.54 | ||||
| 8 | W11501500 | Gasket, Door (white (left Hand)) (Replaces: W10163993) |
|
$ 285.66 | |||||
| 9 | 13004701W | Door Handle (white) (Replaces: 67006114) |
|
$ 193.97 | |||||
| 10 | WP67006113 | Mount, Handle (Replaces: 67006113) |
|
Immediately | $ 12.56 | ||||
| 11 | 12962106 | Tube, Water |
|
$ 133.09 | |||||
| 12 | W10166007 | Bin, Shelf (gallon) |
|
$ 34.58 | |||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: 67007108) |
|
Immediately | $ 32.76 | ||||
| 14 | WP12722813W | Mullion, Door (white) (Replaces: W10164404) |
|
$ 341.27 | |||||
| 15 | W11266639 | Frame, Chiller (rear) (Replaces: 67006315) |
|
$ 269.63 | |||||
| 16 | WP67003638 | Closure, Door (white) (Replaces: 67003638) |
|
Immediately | $ 8.15 | ||||
| 17 | 12968202W | Stop, Door (white) |
|
$ 69.29 | |||||
| 18 | W11266639 | Frame, Chiller (front) (Replaces: 67006314) |
|
$ 269.63 | |||||
| 19 | 12996601 | Clip, Bushing Wire (left Door) (Replaces: 67005954) |
|
$ 10.05 | |||||
| 20 | WP67006312 | Door, Chiller (Replaces: 67006312) |
|
Immediately | $ 86.29 | ||||
| 21 | WP98165 | Screw (Replaces: 67006473) |
|
$ 8.57 | |||||
| 22 | WPW10170766 | Badge (Replaces: W10170766) |
|
Immediately | $ 70.50 | ||||
| 14A | WPW10151713 | Mullion, Door (black) (Replaces: W10164405) |
|
$ 342.08 | |||||
| 14B | WP12722813W | Mullion, Door (bisque) (Replaces: W10164406) |
|
$ 341.27 | |||||
| 14C | WP12722813AP | Mullion, Door (grey) (Replaces: W10191104) |
|
$ 340.89 | |||||
| 16A | WP67003639 | Closure, Door (black) (Replaces: 67003639) |
|
$ 90.32 | |||||
| 16B | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 17A | W11708403 | Stop, Door (black) (Replaces: 67007011) |
|
Immediately | $ 14.75 | ||||
| 17B | 12968202Q | Stop, Door (biscuit/bisque) |
|
- | |||||
| 17C | W11703060 | Stop, Door (grey) (Replaces: W10191119) |
|
$ 15.46 | |||||
| 1A | W10160124 | Door, Left (black) |
|
$ 523.35 | |||||
| 1B | W10160127 | Door, Left (bisque) |
|
- | |||||
| 1C | 13107882S | Door, Left (stainless) |
|
- | |||||
| 1D | 12978036LQ | Door, Left (monochromatic Satina) |
|
- | |||||
| 2A | W10160123 | Door, Right (black) |
|
- | |||||
| 2B | W10160126 | Door, Right (bisque) |
|
- | |||||
| 2C | 13107853SQ | Door, Right (stainless) (Replaces: 13107853S) |
|
$ 1,102.89 | |||||
| 2D | W10191132 | Door, Right (monochromatic Satina) |
|
- | |||||
| 8A | W10830052 | Gasket, Door (black (left Hand)) (Replaces: W10163994) |
|
$ 359.76 | |||||
| 8B | W10830048 | Gasket, Door (grey (left Hand)) (Replaces: W10179334) |
|
Immediately | $ 251.89 | ||||
| 8C | W11396037 | Gasket, Door (white (right Hand)) (Replaces: W10163896) |
|
$ 312.66 | |||||
| 8D | W11378944 | Gasket, Door (black (right Hand)) (Replaces: W10163898) |
|
Immediately | $ 187.59 | ||||
| 8E | W10830055 | Gasket, Door (grey (right Hand)) (Replaces: W10163991) |
|
Immediately | $ 229.10 | ||||
| 9A | 67006115 | Door Handle (black) |
|
- | |||||
| 9B | 67006982 | Door Handle (bisque) |
|
$ 198.40 | |||||
| 9C | W11690159 | Door Handle (stainless) (Replaces: W10197295) |
|
$ 173.76 |
