01 - Cabinet, Literature

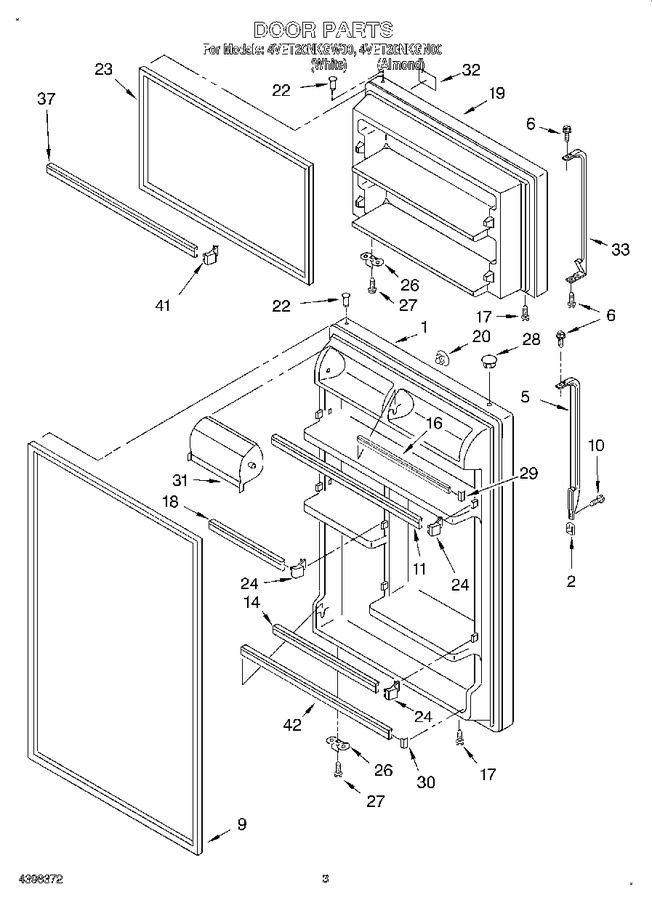

02 - Door
03 - Liner
04 - Unit
05 - Shelf, Optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183948 | Refrigerator Door (includes No.9 & No.22) (white) |
|
- | |||||
| 1 | 2183949 | Refrigerator Door (includes No.9 & No.22) (almond) |
|
- | |||||
| 2 | WP2193353W | Cover, Endcap (white) (Replaces: 2193353W) |
|
$ 8.52 | |||||
| 2 | 2193353N | Cover, Endcap (almond) |
|
- | |||||
| 5 | 4388947 | Handle (white) (Replaces: 2193351W) |
|
$ 204.47 | |||||
| 5 | 2193351N | Handle (almond) |
|
- | |||||
| 6 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 9 | 2159057 | Door Gasket, Magnetic (mist Beige) |
|
Immediately | $ 164.66 | ||||
| 10 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 11 | 2195941 | Trim, Door Shelf |
|
$ 47.96 | |||||
| 14 | WP2195943 | Trim, Door Shelf (Replaces: 2195943) |
|
$ 91.78 | |||||
| 16 | WP2201061 | Trim, Door Shelf (Replaces: 2180027) |
|
$ 124.32 | |||||
| 17 | WP8281206 | Screw (Replaces: 489028) |
|
$ 8.37 | |||||
| 18 | 2195942 | Trim, Door |
|
$ 56.34 | |||||
| 19 | 2182491 | Freezer Door (includes No.22 & No.23) (almond) |
|
- | |||||
| 19 | 2182487 | Freezer Door (includes No.22 & No.23) (white) |
|
- | |||||
| 20 | WP2189000 | Hole Plug (white) (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 20 | 2189008 | Hole Plug (almond) |
|
- | |||||
| 22 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 23 | 2159327 | Door Gasket, Magnetic (mist Beige) |
|
Immediately | $ 164.58 | ||||
| 24 | WP2195915 | Endcap, Trim (Replaces: 2195915) |
|
$ 13.72 | |||||
| 26 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 28 | WP2212648 | Hole Plug (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 29 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 30 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.79 | ||||
| 31 | WP2218113 | Door, Compartment (Replaces: 2171036) |
|
Immediately | $ 50.33 | ||||
| 32 | 2175383 | Nameplate (white) |
|
- | |||||
| 32 | 2175384 | Nameplate (almond) |
|
- | |||||
| 33 | 2193350N | Handle, F.c. (almond) |
|
- | |||||
| 33 | 4388947 | Handle, F.c. (white) (Replaces: 2193350W) |
|
$ 204.47 | |||||
| 37 | 2195946 | Trim-door (2) |
|
$ 46.58 | |||||
| 41 | WP2195916K | Endcap (4) (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 42 | WPW10421484 | Trim, Door (Replaces: 2195949) |
|
$ 136.25 | |||||
| 100 | 2182569 | Featurepak (includes 11,14, 16,18,24,29,30, 31,37,41,42) Also See Shelf Page. |
|
- |
