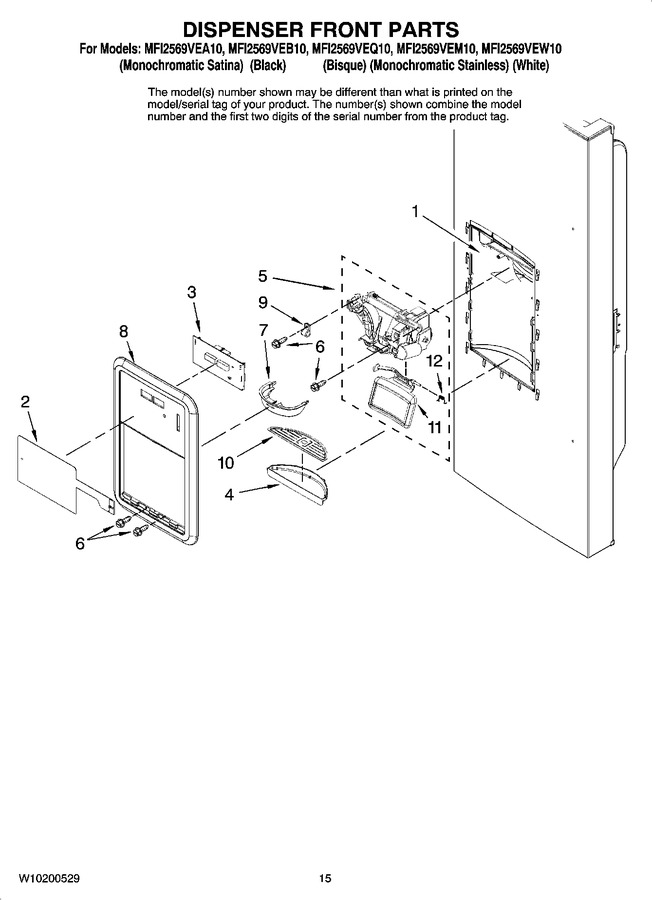

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W10164468 | Dispenser Keyboard (bisque) |
|
- | |||||
| 2 | W10740217 | Dispenser Keyboard (stainless) (Replaces: W10164471) |
|
Immediately | $ 236.00 | ||||
| 2 | W10776982 | Dispenser Keyboard (white) (Replaces: W10159999) |
|
$ 339.56 | |||||
| 2 | W10776981 | Dispenser Keyboard (black) (Replaces: W10164469) |
|
$ 339.56 | |||||
| 2 | W10164470 | Dispenser Keyboard (satina) |
|
- | |||||
| 3 | 67006294 | Board, L.v. |
|
$ 270.03 | |||||
| 4 | W10164979 | Sump, Dispenser (black) |
|
$ 39.41 | |||||
| 4 | W10164981 | Sump, Dispenser (bisque) |
|
$ 67.68 | |||||
| 4 | W10164980 | Sump, Dispenser (apollo Grey (light)) |
|
$ 27.46 | |||||
| 4 | W10185235 | Sump, Dispenser (midnight Grey (dark)) |
|
$ 28.47 | |||||
| 4 | W10142274 | Sump, Dispenser (white) |
|
$ 57.88 | |||||
| 5 | WP13005703W | Chute, Ext/yoke (includes Switch) (white) (Replaces: W10191155) |
|
$ 323.10 | |||||
| 5 | WP13005703B | Chute, Ext/yoke (includes Switch) (black) (Replaces: W10191151) |
|
$ 324.63 | |||||
| 5 | W10191153 | Chute, Ext/yoke (includes Switch) (bisque) |
|
- | |||||
| 5 | WP13005705 | Chute, Ext/yoke (includes Switch) (apollo Grey (light)) (Replaces: W10191149) |
|
Immediately | $ 329.03 | ||||
| 5 | WP13005705 | Chute, Ext/yoke (includes Switch) (midnight Grey (dark)) (Replaces: W10192824) |
|
Immediately | $ 329.03 | ||||
| 6 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 7 | 67006295 | Ring, Target |
|
$ 55.57 | |||||
| 8 | W10172895 | Facade, Dispenser (apollo Grey W/satina Insert) |
|
- | |||||
| 8 | WPW10310688 | Facade, Dispenser (apollo Grey W/stainless Insert) (Replaces: W10142273) |
|
$ 232.13 | |||||
| 8 | W10164983 | Facade, Dispenser (bisque) |
|
$ 94.83 | |||||
| 8 | WPW10164982 | Facade, Dispenser (black) (Replaces: W10164982) |
|
$ 234.44 | |||||
| 8 | W10142272 | Facade, Dispenser (white) |
|
$ 266.28 | |||||
| 9 | M0108106 | Clamp, Tube |
|
$ 69.95 | |||||
| 10 | W10142275 | Grille, Sump |
|
$ 29.42 | |||||
| 11 | W10170833 | Yoke/pad Assy. (bisque) |
|
- | |||||
| 11 | W10170832 | Yoke/pad Assy. (black) |
|
$ 85.18 | |||||
| 11 | W10170831 | Yoke/pad Assy. (white) |
|
$ 83.80 | |||||
| 11 | W10164977 | Yoke/pad Assy. (apollo Grey (light)) |
|
- | |||||
| 11 | WPW10185233 | Yoke/pad Assy. (midnight Grey (dark)) (Replaces: W10185233) |
|
$ 85.43 | |||||
| 12 | WP12565502 | Spring (Replaces: 12565502) |
|
$ 8.43 |
