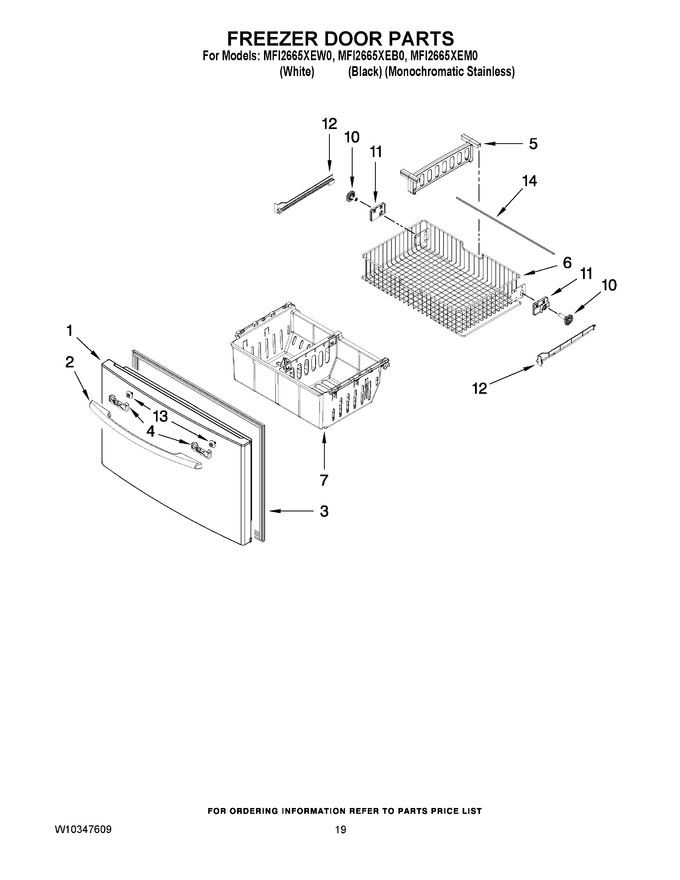

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12977863WQ | Freezer Door (white) (Replaces: W10174214) |
|
$ 847.44 | |||||
| 1 | 12977863BQ | Freezer Door (black) (Replaces: 12977834BQ) |
|
$ 864.29 | |||||
| 1 | 12977846SQ | Freezer Door (stainless) |
|
- | |||||
| 2 | W10252300 | Handle, Door (stainless) |
|
$ 118.03 | |||||
| 2 | W10252296 | Handle, Door (white) |
|
- | |||||
| 2 | WPW10252297 | Handle, Door (black) (Replaces: W10252297) |
|
$ 186.77 | |||||
| 3 | WPW10436253 | Gasket, Door (black) (Replaces: W10164044) |
|
$ 343.70 | |||||
| 3 | WPW10714545 | Gasket, Door (stainless) (Replaces: W10164045) |
|
$ 308.19 | |||||
| 3 | WPW10443321 | Gasket, Door (white) (Replaces: W10164043) |
|
$ 342.70 | |||||
| 4 | WP2255411 | Clip, Handle (Replaces: 2255411) |
|
$ 34.81 | |||||
| 5 | W10146439 | Divider, Upper Basket |
|
$ 31.10 | |||||
| 6 | W11218042 | Basket, Upper (Replaces: W10146448) |
|
$ 193.74 | |||||
| 7 | WPW10293682 | Bin, Lower (Replaces: W10293682) |
|
$ 172.55 | |||||
| 10 | WPW10474716 | Gear Spur (right) (Replaces: W10158749) |
|
Immediately | $ 30.88 | ||||
| 10 | WPW10474715 | Gear Spur (left) (Replaces: W10146446) |
|
Immediately | $ 31.20 | ||||
| 11 | W10348259 | Gear Mount (left) (Replaces: W10233898) |
|
$ 85.59 | |||||
| 11 | W10348260 | Gear Mount (right) (Replaces: W10233899) |
|
$ 85.62 | |||||
| 12 | W11489993 | Rack (left) (Replaces: W10284694) |
|
$ 22.34 | |||||
| 12 | W11489994 | Rack (right) (Replaces: W10284695) |
|
$ 22.34 | |||||
| 13 | WP12992902 | Screw, Handle (shoulder) (Replaces: 12992902) |
|
$ 11.07 | |||||
| 14 | W11173556 | Shaft, Rack (Replaces: 12812904WD) |
|
$ 30.84 |
