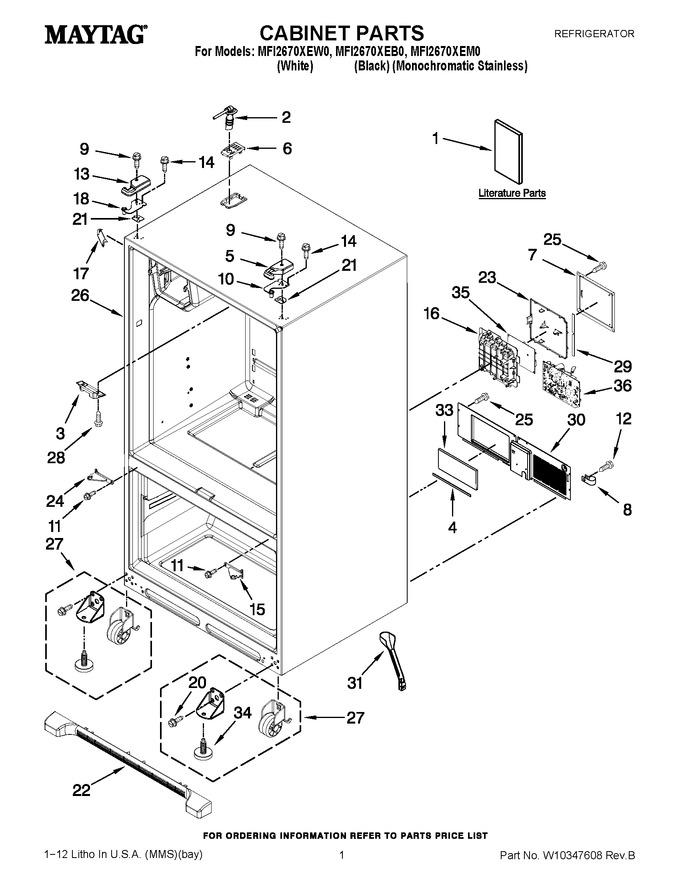

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Freezer Door Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10314958		Use & Care Guide		Appelez-nous	-
1	W10310961		Guide, Energy		Appelez-nous	-
1	W10325984		Tech Sheet		Appelez-nous	-
2	W11415785		Tube W/waterline, Fill-im   (Replaces: 12961401)			Immediately	$ 62.39
3	WP67003405		Block, Pivot   (Replaces: 12698403)			Immediately	$ 7.82
4	B5759655		Gasket, Mc Back				$ 12.41
5	67005958		Cover, Top Hinge (right) (white)   (Replaces: 12962302W)				$ 20.54
5	WP67005956		Cover, Top Hinge (right) (black)   (Replaces: 12962302B)				$ 21.47
5	WPW10191117		Cover, Top Hinge (right) (stainless)   (Replaces: 12962302AP)				$ 21.95
6	12981401W		Cover, Fill Tube (white)				$ 12.62
6	12981401B		Cover, Fill Tube (black)				$ 12.62
6	W10191141		Cover, Fill Tube (stainless)   (Replaces: 12981401AP)				$ 14.34
7	12961602		Cover, Control Box				$ 110.66
8	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 21.33
9	WP8281196		Screw, Hinge Cover   (Replaces: 12992602)			Immediately	$ 7.19
10	W11592374		Hinge, Top Right   (Replaces: 12963205ED)			Immediately	$ 29.02
11	W11573362		Screw, Center (hinge)   (Replaces: 12992201)				$ 14.02
12	67006425		Screw (3)   (Replaces: 12990511)			Immediately	$ 6.95
13	WPW10337634		Cover, Top Hinge (left) (white)   (Replaces: 12962301W)			Immediately	$ 22.42
13	WPW10337648		Cover, Top Hinge (left) (stainless)   (Replaces: 12962301AP)				$ 22.02
13	W10337647		Cover, Top Hinge (left) (black)   (Replaces: 12962301B)			Immediately	$ 22.22
14	WP489349		Screw, Top Hinge   (Replaces: 12992403)			Immediately	$ 7.88
15	W10917988		Hinge, Center (rt) (stainless)   (Replaces: 13000002AP)			Immediately	$ 91.08
15	W10918164		Hinge, Center (rt) (black)   (Replaces: 13000008ED)				$ 86.64
15	13000002WD		Hinge, Center (rt) (white)				$ 153.32
16	W10285271		Box, Hv Control				$ 53.69
17	WP12587703AP		Cover, Corner (2) (stainless)   (Replaces: 12587703AP)				$ 7.69
17	67003485		Cover, Corner (2) (black)   (Replaces: 12587703B)			Immediately	$ 21.09
17	12587703W		Cover, Corner (2) (white)				$ 21.81
18	W11592375		Hinge, Top Left   (Replaces: 12963204ED)				$ 29.09
20	67006564		Screw (8)   (Replaces: 12991302)			Immediately	$ 7.69
21	12999501		Shim, Top Hinge (left)				$ 94.79
21	12999502		Shim, Top Hinge (right)				$ 95.81
22	WPW10534154		Grille, Toe (white)   (Replaces: W10244559)				$ 146.34
22	WPW10534155		Grille, Toe (stainless)   (Replaces: W10244558)			Immediately	$ 119.56
22	WPW10534153		Grille, Toe (black)   (Replaces: W10244561)				$ 147.21
23	W11226688		Lid, Hv Control   (Replaces: 12957702K)				$ 81.10
24	W10918113		Hinge, Center (lt) (white)   (Replaces: 13000001WD)				$ 93.26
24	W10917988		Hinge, Center (lt) (stainless)   (Replaces: 13000001AP)			Immediately	$ 91.08
24	W10918164		Hinge, Center (lt) (black)   (Replaces: 13000007ED)				$ 86.64
25	W11686675		Screw, Cover   (Replaces: 12990702)				$ 13.59
26	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
27	W11820445		Roller Assembly (right)   (Replaces: W10275849)			Immediately	$ 35.57
27	W11820444		Roller Assembly (left)   (Replaces: W10275850)			Immediately	$ 35.57
28	W10854958		Screw, Block   (Replaces: 12990302)				$ 7.43
29	12957801K		Gasket, Hv Control		Appelez-nous	-
30	W10319847		Cover, Mc Back				$ 76.66
31	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
33	12820505		Fiber, Acoustic				$ 71.70
34	WPW10141622		Brake, Foot   (Replaces: W10141622)			Immediately	$ 7.85
35	WPW10285199		Board, Hv Control   (Replaces: W10285199)			Immediately	$ 351.71
36	WPW10226427		Supply, Power   (Replaces: W10226427)			Immediately	$ 335.17
