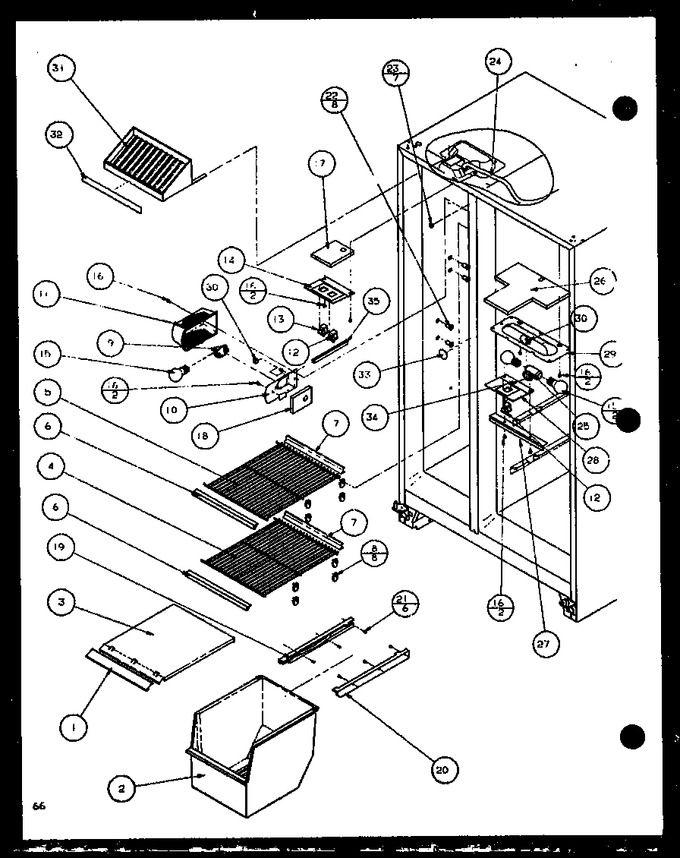

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7616620 | Trim, Frz Shelf |
|
- | |||||
| 2 | D7781412 | Basket Freezer Clear |
|
- | |||||
| 3 | D7781502 | Freezer Shelf |
|
- | |||||
| 4 | D7788312 | Shelf, Fz Wire |
|
- | |||||
| 5 | D7788309 | Shelf, Frz |
|
- | |||||
| 6 | 10049917 | Trim |
|
- | |||||
| 7 | C8913607 | Trim, Rear Frz Shelf |
|
- | |||||
| 8 | C8973801 | Support, Frz Shelf |
|
$ 8.35 | |||||
| 9 | D7714403 | Socket-light |
|
- | |||||
| 10 | D7753502 | Plate-light Socket |
|
- | |||||
| 11 | D7786602 | Shield, Light |
|
- | |||||
| 12 | W11384469 | Switch (Replaces: C3680304) |
|
Immediately | $ 37.23 | ||||
| 13 | 18805 | Switch (Replaces: C3680306) |
|
$ 21.59 | |||||
| 14 | D7749002 | Cover Light |
|
- | |||||
| 15 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 16 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 17 | C8976401 | Barrier Frz. |
|
- | |||||
| 18 | C8974501 | Barrier, Frz Side |
|
- | |||||
| 19 | 67005375 | Glide-l Fz (Replaces: D7849903) |
|
$ 312.82 | |||||
| 20 | D7849904 | Glide, Freezer Rh |
|
- | |||||
| 21 | M0213529 | Screw |
|
- | |||||
| 22 | C8973701 | Plug, Frz Shelf Support |
|
- | |||||
| 23 | M0580007 | Grommet, Screw |
|
- | |||||
| 24 | 10223101 | Harness, Frz Liner |
|
- | |||||
| 25 | D7808602 | Socket, Dual Lamp |
|
- | |||||
| 26 | C8778301 | Insulation |
|
- | |||||
| 27 | 10014705 | Light Shield |
|
- | |||||
| 28 | D7297603 | Cover, Light Sw |
|
- | |||||
| 29 | D7716403 | Housing-ref Light |
|
- | |||||
| 30 | B5733302 | Clip, Ground |
|
- | |||||
| 31 | D7839701 | Rack, Juice V |
|
- | |||||
| 32 | C8986111 | Insert Juice Rack |
|
- | |||||
| 33 | A3069103 | Plug |
|
- | |||||
| 34 | B5781002 | Jumper Wire |
|
- | |||||
| 35 | 10197901 | Cover Wiring |
|
- |
