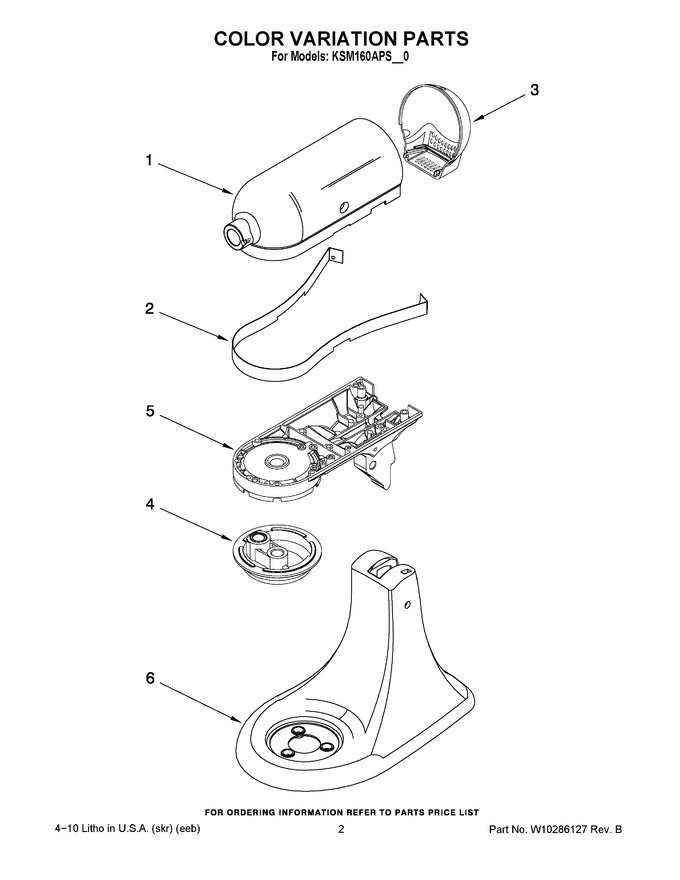

01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit
03 - Motor And Control Parts
04 - Base And Pedestal Unit
05 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10171586 | Motor Housing (cocoa Silver) |
|
- | |||||
| 1 | W10239115 | Motor Housing (candy Apple) |
|
$ 108.56 | |||||
| 2 | W10171580 | Trim Band (brushed) |
|
- | |||||
| 3 | W10171581 | End Cover (cocoa Silver) |
|
- | |||||
| 3 | WPW10239110 | End Cover (candy Apple) (Replaces: W10239110) |
|
$ 28.91 | |||||
| 4 | W10342514 | Planetary (cocoa Silver) (Replaces: W10171583) |
|
$ 45.31 | |||||
| 4 | W10239112 | Planetary (candy Apple) |
|
$ 45.31 | |||||
| 5 | W10171589 | Lower Gearcase (cocoa Silver) |
|
- | |||||
| 5 | W10239118 | Lower Gearcase (candy Apple) |
|
- | |||||
| 6 | W10171592 | Pedestal W/feet (cocoa Silver) |
|
- | |||||
| 6 | W10239121 | Pedestal W/feet (candy Apple) |
|
- |
