View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

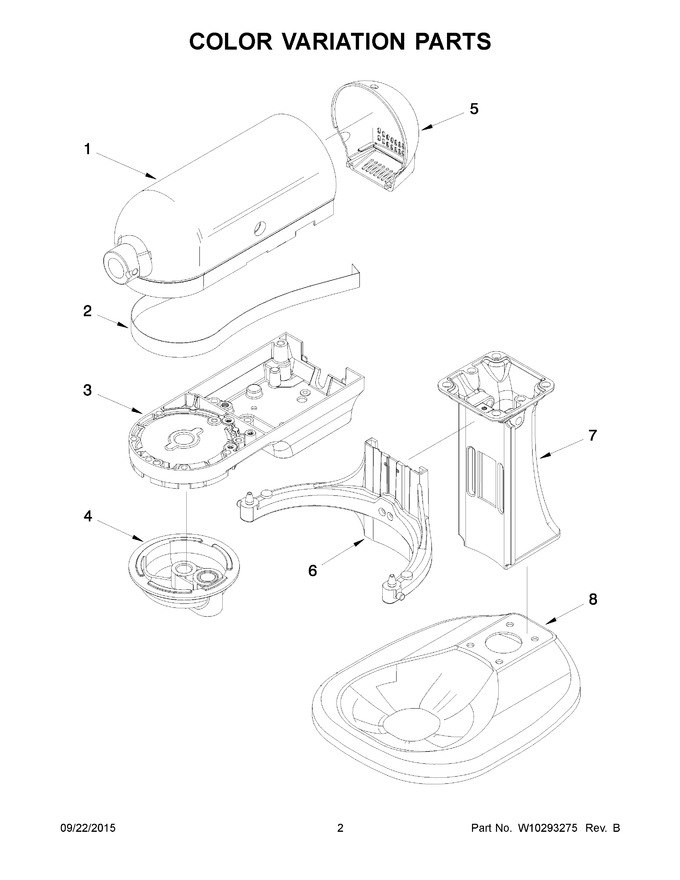

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Motor And Control Unit Parts
05 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10121193 | Motor Housing (silver Metallic) |
|
- | |||||
| 2 | W10289767 | Trim Band (black) |
|
- | |||||
| 3 | W10158521 | Lower Gearcase (silver Metallic) |
|
- | |||||
| 4 | 9706670 | Planetary (silver Metallic) (Replaces: W10121190) |
|
Immediately | $ 45.31 | ||||
| 5 | W10121188 | End Cover (silver Metallic) |
|
- | |||||
| 6 | W10158518 | Bowl Support And Pins (silver Metallic) |
|
- | |||||
| 7 | W10158516 | Column (silver Metallic) |
|
- | |||||
| 8 | W10158515 | Base & Foot Assembly (silver Metallic) |
|
- |
