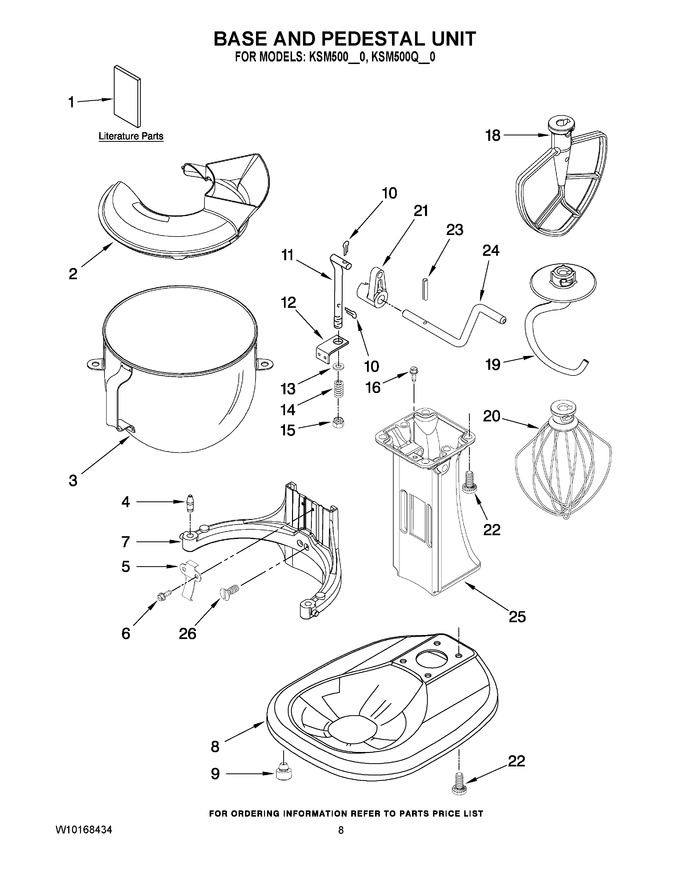

01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit
03 - Motor And Control Parts
04 - Base And Pedestal Unit
05 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10168434 | Repair Parts List |
|
- | |||||
| 1 | 9706634 | Use & Care Guide |
|
- | |||||
| 2 | W11312468 | Shield, Pouring (Replaces: 9709923) |
|
$ 43.26 | |||||
| 3 | W10802050 | Bowl, 5 Qt. (Replaces: 4162161) |
|
$ 122.88 | |||||
| 4 | WP240185 | Pin, Bowl Locating (Replaces: 240185) |
|
$ 4.50 | |||||
| 5 | WP3182857 | Latch, Bowl Spring (Replaces: 3182857) |
|
Immediately | $ 5.29 | ||||
| 6 | WP4159193 | Screw (Replaces: 3400024) |
|
$ 5.07 | |||||
| 7 | N/P | Bowl Support & Pns |
|
- | |||||
| 8 | N/P | Base & Foot Assy |
|
- | |||||
| 9 | WP9708649 | Foot (Replaces: 9708649) |
|
Immediately | $ 4.79 | ||||
| 10 | WP9704608 | Pin, Cotter (Replaces: 9704608) |
|
$ 4.37 | |||||
| 11 | 9085 | Rod, Bowl Lift |
|
- | |||||
| 12 | 240169 | Bracket, Bowl Lift |
|
Immediately | $ 69.83 | ||||
| 13 | W11708396 | Washer (Replaces: W10260809) |
|
$ 4.60 | |||||
| 14 | 4159622 | Spring (Replaces: 9237) |
|
Immediately | $ 4.70 | ||||
| 15 | 8533907 | Nut |
|
$ 24.83 | |||||
| 16 | 3182904 | Screw |
|
- | |||||
| 18 | 240235-4 | Beater, Flat |
|
- | |||||
| 19 | WPW10674621 | Hook, Dough (Replaces: 3183233) |
|
$ 51.22 | |||||
| 20 | WPW10731415 | Whip-wire (Replaces: 9704309) |
|
Immediately | $ 37.93 | ||||
| 21 | WP241764 | Arm, Bowl Lift (Replaces: 241764) |
|
Immediately | $ 8.57 | ||||
| 22 | WP4162403 | Screw (Replaces: 240912) |
|
$ 5.38 | |||||
| 23 | WP9703442 | Pin, Roll (Replaces: 9703442) |
|
$ 4.28 | |||||
| 24 | W11812045 | Handle, Bowl Lift (Replaces: 9079) |
|
$ 10.85 | |||||
| 25 | N/P | Column Assembly |
|
- | |||||
| 26 | W10861883 | Screw (Replaces: 3400018) |
|
Immediately | $ 4.94 |
