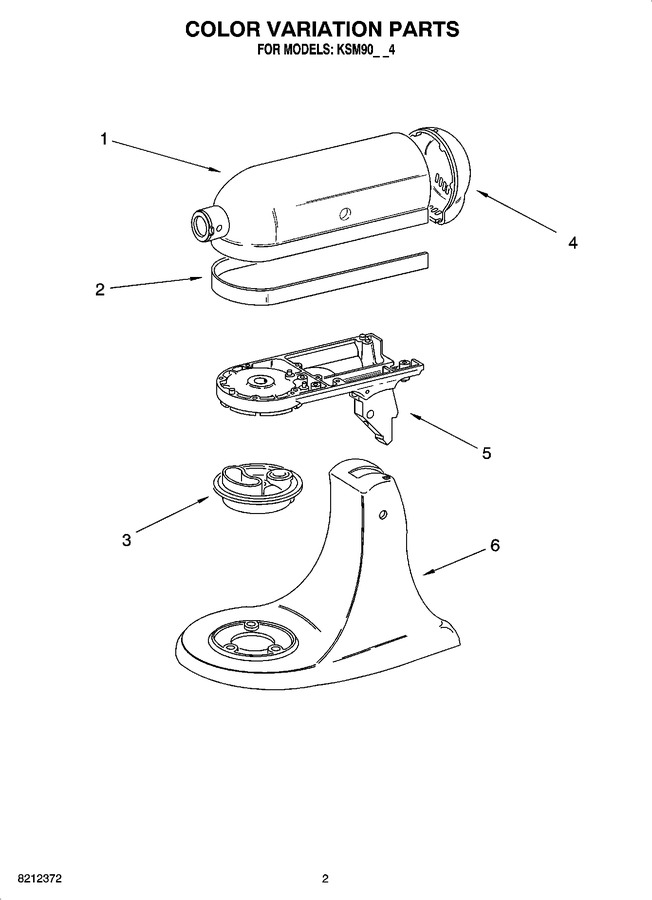

01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit
03 - Motor And Control Parts
04 - Base And Pedestal Unit, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP240291-13 | Motor Housing (onyx Black) (Replaces: 240291-13) |
|
$ 101.67 | |||||
| 1 | WP240291-21 | Motor Housing (empire Red) (Replaces: 240291-21) |
|
$ 101.29 | |||||
| 1 | 9704025 | Motor Housing (metallic Chrome) |
|
$ 108.56 | |||||
| 2 | 9702645 | Trim Band (black) |
|
- | |||||
| 3 | W11199173 | Planetary-onyx Black (Replaces: 240286-16) |
|
$ 32.71 | |||||
| 3 | W11084831 | Planetary-empire Red (Replaces: 240286-23) |
|
$ 27.92 | |||||
| 3 | 9706670 | Planetary (metallic Chrome) |
|
Immediately | $ 45.31 | ||||
| 4 | 240253-14 | End Cover-onyx Black |
|
$ 48.42 | |||||
| 4 | W11084313 | End Cover-empire Red (Replaces: 240253-22) |
|
$ 29.89 | |||||
| 4 | 9704029 | End Cover (metallic Chrome) |
|
- | |||||
| 5 | WP240350-56 | Lower Gearcase-onyx Black (Replaces: 240350-56) |
|
$ 108.70 | |||||
| 5 | WP240350-84 | Lower Gearcase-empire Red (Replaces: 240350-84) |
|
$ 65.91 | |||||
| 5 | 9706662 | Lower Gearcase (metallic Chrome) |
|
$ 68.93 | |||||
| 6 | 240151-13 | Pedestal-onyx Black |
|
- | |||||
| 6 | W11131262 | Pedestal-empire Red (Replaces: 240151-20) |
|
$ 97.71 | |||||
| 6 | 9706682 | Pedestal (metallic Chrome) |
|
$ 95.12 |
