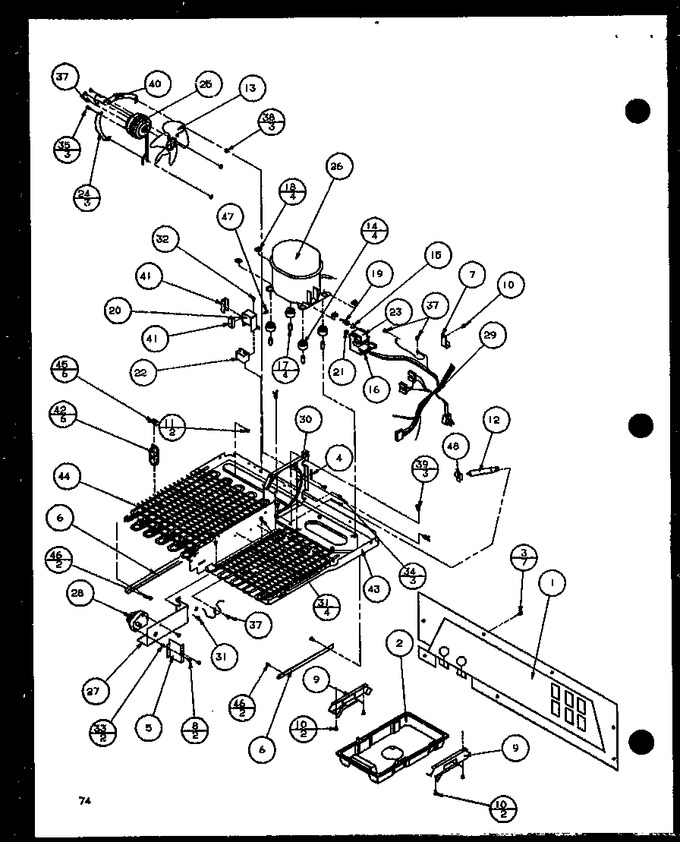

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7788901 | Mach Back Assy A |
|
- | |||||
| 2 | D7790601 | Drain Pan |
|
- | |||||
| 3 | M0219704 | Screw |
|
- | |||||
| 4 | B5759604 | Gasket |
|
- | |||||
| 5 | C8973502 | Bracket, Timer |
|
- | |||||
| 6 | D7835501 | Support M.c. |
|
- | |||||
| 7 | M0102325 | Clamp |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 9 | D7790501 | Support Drain Pan |
|
- | |||||
| 10 | WP489069 | Screw-sd (Replaces: M0233704) |
|
Immediately | $ 8.40 | ||||
| 11 | M0233844 | Screw, T F |
|
- | |||||
| 12 | WPB2150504 | Drier (Replaces: B5715001) |
|
$ 136.98 | |||||
| 13 | B5742601 | Blade, Fan |
|
- | |||||
| 14 | WPW10169124 | Grommet (Replaces: B8333401) |
|
$ 7.55 | |||||
| 15 | B8358301 | Spring, Overload |
|
- | |||||
| 16 | YB8358601 | Bale Strap |
|
- | |||||
| 17 | B8384901 | Pin, Comp. Mtg. |
|
- | |||||
| 18 | B8385001 | Clip, Comp. Mtg |
|
- | |||||
| 19 | C8906203 | Overload |
|
- | |||||
| 20 | C8931101 | Shield-capacitor |
|
- | |||||
| 21 | 2154436 | Relay-ptc (Replaces: C8931502) |
|
$ 141.69 | |||||
| 22 | WPW10662129 | Capacitor (Replaces: C8931602) |
|
Immediately | $ 58.86 | ||||
| 23 | C8960801 | Term Cover |
|
- | |||||
| 24 | C8982101 | Bracket, Cond Motor |
|
- | |||||
| 25 | 833697 | Motor, Fan (Replaces: D7584002) |
|
Immediately | $ 88.15 | ||||
| 26 | D7736203 | Compressor Aea1410axa |
|
- | |||||
| 27 | D7844201 | Bracket, Timer |
|
- | |||||
| 28 | R0131577 | Timer, Defrost (8 Hr) (Replaces: D7790403) |
|
Immediately | $ 51.24 | ||||
| 29 | D7867101 | Harness M.c. |
|
- | |||||
| 30 | D7844102 | Cond. Fan Shroud |
|
- | |||||
| 31 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 32 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 33 | M0218118 | Screw |
|
- | |||||
| 34 | M0221332 | Screw, Shoulder |
|
- | |||||
| 35 | M0223803 | Screw |
|
- | |||||
| 37 | M0253916 | Screw |
|
- | |||||
| 38 | M0500107 | Grommet K |
|
- | |||||
| 39 | DC61-40081A | Tie, Wire (Replaces: M0585401) |
|
$ 0.94 | |||||
| 40 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 41 | A3261703 | Grommet Per In. |
|
- | |||||
| 42 | B8346301 | Spacer Cond. |
|
- | |||||
| 43 | D7748602 | Base Pan |
|
- | |||||
| 44 | D7824503 | Condenser Pntd |
|
- | |||||
| 45 | M0293703 | Speednut |
|
- | |||||
| 46 | M0211530 | Screw |
|
- |
