01 - Color Variation Parts
02 - Base And Pedestal Unit

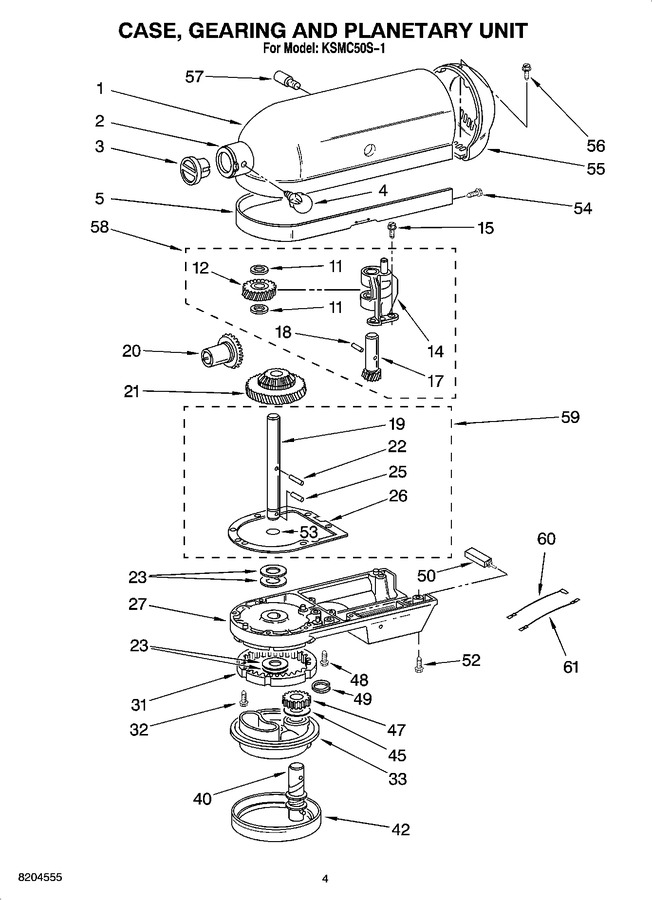

03 - Case, Gearing, And Planetary Unit
04 - Motor And Control Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 4159709 | Ring, Attachment |
|
- | |||||
| 3 | W11831059 | Cap, Attachment Hub (Replaces: 242765-3) |
|
Immediately | $ 15.12 | ||||
| 4 | WP9709194 | Thumb Screw (Replaces: 240374) |
|
Immediately | $ 20.14 | ||||
| 11 | WPW10323373 | Washer, Fiber (black, Gray) (Replaces: 3180161) |
|
Immediately | $ 4.72 | ||||
| 12 | WPW10112253 | Worm Gear (23t) (Replaces: 4162897) |
|
Immediately | $ 13.47 | ||||
| 14 | W11082541 | Worm Gear Bracket And Bearing (Replaces: 240308) |
|
$ 14.78 | |||||
| 15 | W11097298 | Screw And L.w. Assy. No.10-24 X 7/16`` Phil. Fil. Hd. (3) (Replaces: 3400022) |
|
- | |||||
| 17 | WP240210-2 | Shaft & Pinion (10t) (Replaces: 240210-2) |
|
Immediately | $ 11.88 | ||||
| 18 | WP9705444 | Pin, Grooved (Replaces: 9705444) |
|
Immediately | $ 4.84 | ||||
| 19 | WP240026 | Shaft, Vertical Center (Replaces: 240026) |
|
Immediately | $ 9.14 | ||||
| 20 | W11192794 | Gear, Attachment Hub Bevel (23t) (Replaces: 9703907) |
|
Immediately | $ 40.69 | ||||
| 21 | W11192794 | Bevel Pinion (19t) & Center Gear (62t) (Replaces: 9703905) |
|
Immediately | $ 40.69 | ||||
| 22 | WP9707223 | Pin (vertical Center Shaft) (Replaces: 240018-1) |
|
Immediately | $ 5.08 | ||||
| 23 | WPW10323378 | Washer, Fiber (black, Gray) (Replaces: 3180163) |
|
Immediately | $ 10.83 | ||||
| 25 | W11762673 | Pin, Grooved (Replaces: 9705443) |
|
Immediately | $ 4.25 | ||||
| 26 | W11805888 | Gasket, Case (Replaces: 4162324) |
|
Immediately | $ 46.84 | ||||
| 31 | W11340106 | Gear, Internal (59t) (Replaces: 9703904) |
|
$ 18.56 | |||||
| 32 | 4160595 | Screw, Special (5) |
|
- | |||||
| 40 | WP243368 | Agitator Shaft (Replaces: 4176082) |
|
Immediately | $ 17.29 | ||||
| 42 | WP240285 | Ring, Planetary Drip (Replaces: 240285) |
|
Immediately | $ 9.06 | ||||
| 45 | 3180160 | Washer, Shim (.015 & .031 Thk) |
|
$ 18.10 | |||||
| 47 | W11133645 | Pinion, Gear (18t) (agitator Shaft) (Replaces: 9703903) |
|
$ 4.92 | |||||
| 48 | WP3400025 | Machine Screw, 10-24 X 1 Fil. Head (Replaces: 3400025) |
|
$ 4.62 | |||||
| 49 | 4159614 | Washer, Retaining |
|
- | |||||
| 50 | 241287-1 | Circuit Breaker (Replaces: 4176099) |
|
$ 118.10 | |||||
| 52 | WP9708653 | Machine Screw 10-24 X 1 3/4 Fil. Hd. (2) (Replaces: 3400026) |
|
$ 4.50 | |||||
| 53 | WP67500-55 | ``o`` Ring (Replaces: 4159817) |
|
Immediately | $ 4.52 | ||||
| 54 | WP313808 | Screw, 6-32 X .250 (Replaces: 311932) |
|
$ 8.30 | |||||
| 56 | WP241877 | Screw, 6-32 X 3/8 Phil. Oval Hd. (Replaces: 4162914) |
|
$ 4.15 | |||||
| 57 | 4176183 | Pin-guard |
|
- | |||||
| 58 | WP240309-2 | Worm Gear Bracket And Gear (10 T & 23 T) (incls. Illus 11 Thru 14 17 & 18) (Replaces: 240309-2) |
|
Immediately | $ 39.53 | ||||
| 59 | 4160474 | Center Shaft & ``o`` Ring (incls. Illus. 19, 22, 25, 26, & 53) |
|
$ 28.53 | |||||
| 60 | W11821371 | Jumper Wire, Breaker To Board (Replaces: 4176248) |
|
$ 8.18 | |||||
| 61 | 4176247 | Lead, Circuit Breaker To Motor |
|
- |
