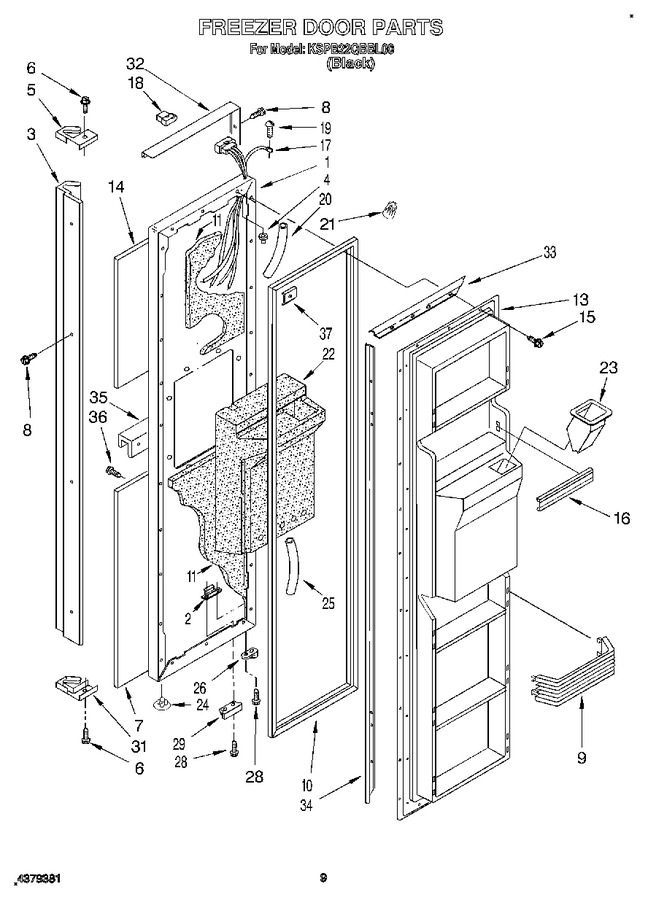

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2171026 | Freezer Door Panel (also Order Item 11) |
|
- | |||||
| 2 | 2155335 | Tap, Plate |
|
- | |||||
| 3 | 2168796 | Handle Assembly |
|
- | |||||
| 4 | 939886 | Seal, Hinge Pin |
|
- | |||||
| 5 | 1126073 | End Cap, Top |
|
- | |||||
| 6 | 489112 | Screw |
|
- | |||||
| 7 | 1126020 | Black Glass, Lower |
|
- | |||||
| 8 | 489376 | Screw (9) |
|
- | |||||
| 9 | 1117928 | Shelf Bin (4) |
|
- | |||||
| 10 | 2188405A | Door Gasket, Magnetic (Replaces: 1125926) |
|
$ 351.08 | |||||
| 11 | 876029 | Foam Insulation (required When Replacing Exterior Door Panel) |
|
- | |||||
| 13 | 2156046 | Panel, Interior Door |
|
- | |||||
| 14 | 1126019 | Black Glass, Upper |
|
- | |||||
| 15 | WP489069 | Screw (Replaces: 489101) |
|
Immediately | $ 7.86 | ||||
| 16 | 1126496 | Trim, Door Shelf |
|
- | |||||
| 17 | 1119212 | Harness, Door (includes Item 18) |
|
- | |||||
| 18 | 936183 | Connector, Plug |
|
- | |||||
| 19 | WP488234 | Screw (Replaces: 489422) |
|
$ 6.74 | |||||
| 20 | 1119059 | Tube, Door Wiring |
|
- | |||||
| 21 | 227991 | Wire Connector |
|
- | |||||
| 22 | 2149014 | Insulation, Dispenser |
|
- | |||||
| 23 | 2156147 | Chute, Ice |
|
- | |||||
| 24 | 2151653 | Hole Plug |
|
- | |||||
| 25 | 2147080 | Tube, Door Wiring |
|
- | |||||
| 26 | 4318165 | Door Closer, Upper Cam (Replaces: 2155312) |
|
Immediately | $ 27.36 | ||||
| 28 | WP999367 | Screw (Replaces: 489367) |
|
$ 7.86 | |||||
| 29 | 2155329 | Bracket, Door Stop |
|
- | |||||
| 31 | 1126074 | End Cap, Bottom |
|
- | |||||
| 32 | 2168795 | Trim, Door |
|
- | |||||
| 33 | 1117767 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 34 | 1117766 | Gasket Retainer, Side (2) |
|
$ 36.55 | |||||
| 35 | 1125979 | Trim, Dispenser |
|
- | |||||
| 36 | 489374 | Screw |
|
- | |||||
| 37 | WP939101 | Screw Anchor (2) (Replaces: 939101) |
|
$ 7.50 |
