SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Air Flow Parts


04 - Freezer Liner Parts


05 - Refrigerator Shelf Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts

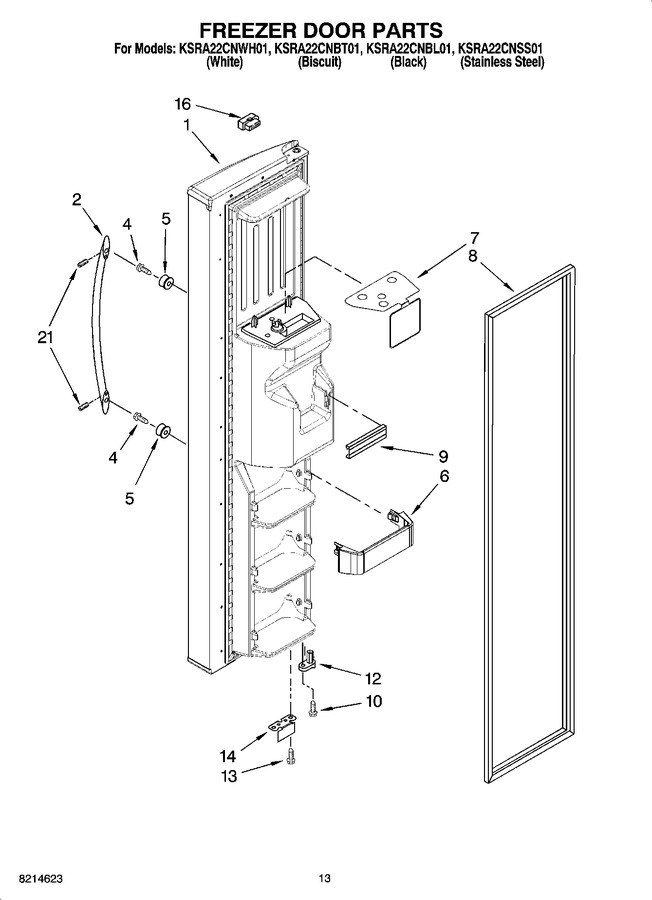

08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Control Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2301202W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2301202T		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2301202B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2301202SB		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2	2304832W		Handle (white)		Appelez-nous	-
2	2304832SK		Handle (stainless Steel)		Appelez-nous	-
2	2304832T		Handle (biscuit)		Appelez-nous	-
2	2304832B		Handle (black)		Appelez-nous	-
4	WP488163		Screw   (Replaces: 488208)				$ 7.54
5	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
6	2304923K		Trivet, Shelf (3)		Appelez-nous	-
7	2304896		Safety Barrier		Appelez-nous	-
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2221312)				$ 310.39
8	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221301)				$ 308.19
9	WPW10307490		Trim, Door Shelf   (Replaces: 2212375)			Immediately	$ 23.11
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2200082B		Bracket, Door Stop (black)				$ 42.44
14	2200082		Bracket, Door Stop (chrome)				$ 5.83
16	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
21	WPW10010150		Screw, Set (black)   (Replaces: W10010150)				$ 7.88
21	W11366418		Screw, Set (chrome)   (Replaces: W10010140)			Immediately	$ 15.79

    View Diagram in Separate Window       Print Part List
