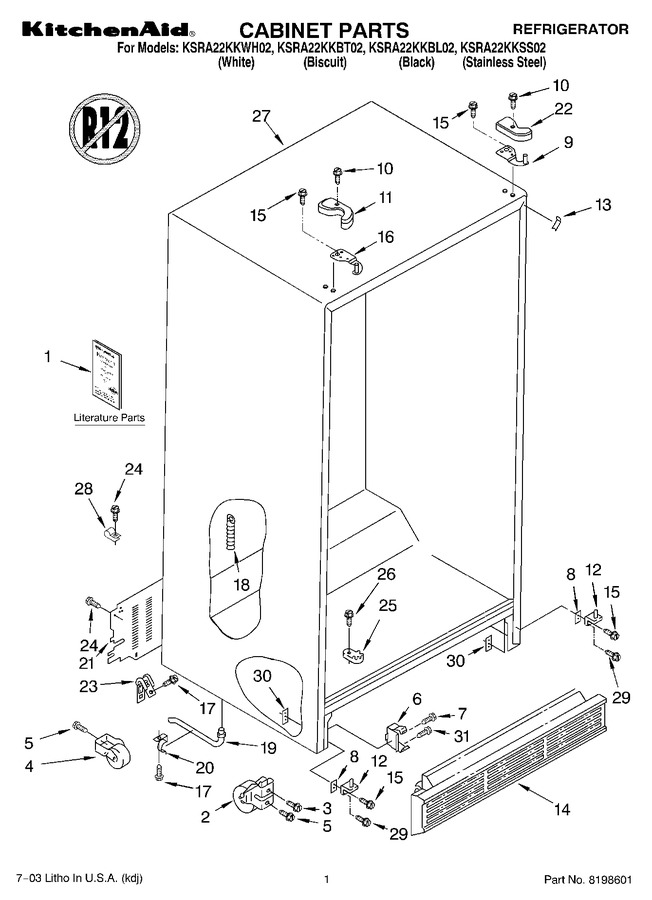

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2254906		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT2260949		Literature Parts (energy Guide)		Appelez-nous	-
1	LIT2255379		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille (2)   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489478		Screw   (Replaces: 489478)				$ 7.75
8	2209697		Shim				$ 41.25
9	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
10	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
11	2203407T		Hinge Cover (fc) (biscuit)		Appelez-nous	-
11	WP2203407B		Hinge Cover (fc) (black)   (Replaces: 2203407B)				$ 19.52
11	WP2203407W		Hinge Cover (fc) (white)   (Replaces: 2203407W)				$ 20.75
12	8201707		Hinge Bottom (2)   (Replaces: 2217075)				$ 88.90
13	2196094		Filler, Wrapper (white)		Appelez-nous	-
13	2196150		Filler, Wrapper (biscuit)		Appelez-nous	-
13	2196097		Filler, Wrapper (black)		Appelez-nous	-
14	2198469T		Grille (biscuit)				$ 76.00
14	W11167901		Grille (white)   (Replaces: 2198469W)				$ 111.20
14	2198469B		Grille (black)		Appelez-nous	-
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
16	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
18	W11566763		Drain Fitting   (Replaces: 940139)			Immediately	$ 50.90
19	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
20	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
21	WP2188756		Cover, Unit   (Replaces: 2171936)				$ 141.67
22	2203408T		Hinge Cover (rc) (biscuit)		Appelez-nous	-
22	WP2203408W		Hinge Cover (rc) (white)   (Replaces: 2203408W)				$ 20.97
22	WP2203408B		Hinge Cover (rc) (black)   (Replaces: 2203408B)				$ 18.63
23	549193		Clamp-service Cord				$ 13.39
24	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
25	WPW10329686		Door Closer, Lower Cam   (Replaces: 2155311)			Immediately	$ 5.43
26	WP489483		Screw   (Replaces: 489483)				$ 10.87
28	WP488366		Clamp, Tube   (Replaces: 489385)				$ 11.18
29	W10856122		Screw   (Replaces: 3400103)				$ 7.76
30	WP2304249		Plate, Screw   (Replaces: 2203098)				$ 14.23
31	WP489128		Screw   (Replaces: 488500)				$ 10.88
