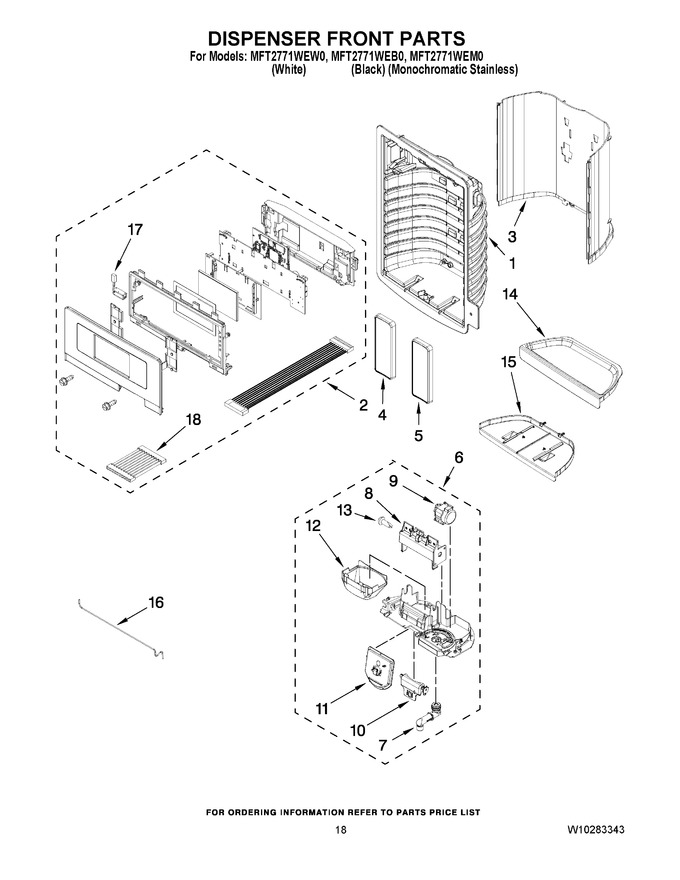

10 - Dispenser Front Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10271912		Ui Assembly (white)		Appelez-nous	-
2	W10271913		Ui Assembly (black)		Appelez-nous	-
2	W10271914		Ui Assembly (stainless)		Appelez-nous	-
3	W10268792		False Wall, Dispenser (stainless)		Appelez-nous	-
3	W11045975		False Wall, Dispenser (white)   (Replaces: W10215699)		Appelez-nous	-
3	W11045976		False Wall, Dispenser (black)   (Replaces: W10233560)				$ 41.12
4	W10270560		Pad, Ice (nickel)		Appelez-nous	-
4	W10286142		Pad, Ice (black)		Appelez-nous	-
5	W10270564		Pad, Water (nickel)		Appelez-nous	-
5	W10286143		Pad, Water (black)				$ 35.47
6	W10215987		Separator Assembly (black)		Appelez-nous	-
6	W10180830		Separator Assembly (white)		Appelez-nous	-
6	W10215954		Separator Assembly (stainless)		Appelez-nous	-
7	W11227371		Spigot   (Replaces: 2316647)				$ 129.89
8	W10174827		Bracket, Ice Door				$ 72.78
9	WPW10184813		Motor, Ice Door   (Replaces: W10184813)			Immediately	$ 103.17
10	W10499850		Support, Ice Door   (Replaces: W10174809)				$ 99.69
11	W10346235		Door, Ice   (Replaces: W10174811)				$ 162.21
12	W10499850		Guide, Ice   (Replaces: W10174808)				$ 99.69
13	WP4449745		Screw   (Replaces: 4449745)				$ 7.49
14	WPW10305897		Tray, Dispenser (stainless)   (Replaces: W10267864)				$ 80.77
14	W11045971		Tray, Dispenser (black)   (Replaces: W10267870)				$ 62.76
14	W11045970		Tray, Dispenser (white)   (Replaces: W10267869)				$ 62.79
15	W10267861		Slide, Tray Dispenser (black)				$ 70.85
15	WPW10267863		Slide, Tray Dispenser (apollo Grey)   (Replaces: W10267863)				$ 69.73
15	W10267860		Slide, Tray Dispenser (white)		Appelez-nous	-
16	W10180827		Tube, Water (dispenser)		Appelez-nous	-
17	W10143532		Led		Appelez-nous	-
18	W10193350		Harness, Jumper				$ 56.57
