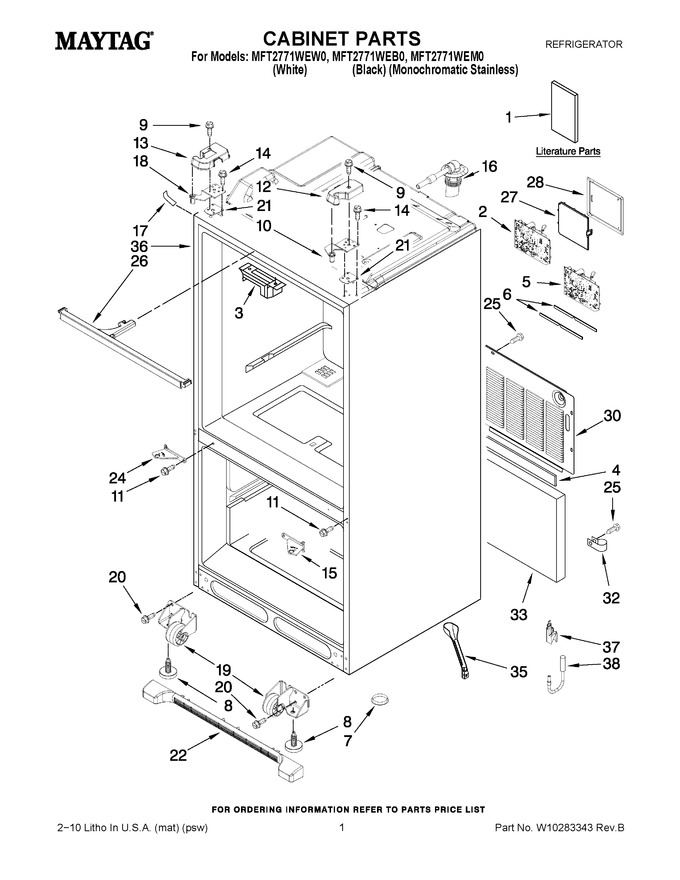

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Motor And Ice Container Parts


08 - Icemaker Parts


09 - Freezer Door Parts


10 - Dispenser Front Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10238852		Tech Sheet		Appelez-nous	-
1	W10276053		Tag, Energy		Appelez-nous	-
1	W10252999		Owners Manual		Appelez-nous	-
2	WPW10226427		Supply, Power   (Replaces: W10226427)			Immediately	$ 335.17
3	WP67003405		Block, Pivot   (Replaces: 12698403)			Immediately	$ 7.82
4	B5759655		Gasket				$ 12.41
5	WPW10267646		Board, Gemini (hv, Gemini)   (Replaces: W10267646)				$ 356.02
6	12957801		Gasket, Hv Box		Appelez-nous	-
7	A3076901		Plug-button				$ 5.70
8	10354002		Brake, Foot			Immediately	$ 7.38
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.19
10	W11592374		Hinge, Top Right   (Replaces: 12963205ED)			Immediately	$ 29.02
11	W11573362		Screw (6)   (Replaces: 12992201)				$ 14.02
12	W10272995		Cover, Right Hinge (white)		Appelez-nous	-
12	W10272996		Cover, Right Hinge (black)		Appelez-nous	-
12	W10272998		Cover, Right Hinge (apollo Grey)		Appelez-nous	-
13	W10272478		Cover, Left Hinge (white)		Appelez-nous	-
13	W10272479		Cover, Left Hinge (black)		Appelez-nous	-
13	W10272481		Cover, Left Hinge (apollo Grey)		Appelez-nous	-
14	WP489349		Screw (6)   (Replaces: 12992403)			Immediately	$ 7.88
15	13000002WD		Hinge, Center (rt) (white)				$ 153.32
15	W10918164		Hinge, Center (rt) Black   (Replaces: 13000008ED)				$ 86.64
15	W10917988		Hinge, Center (rt) (apollo Grey)   (Replaces: 13000002AP)			Immediately	$ 91.08
16	W10213219		Fill Tube, Icemaker				$ 59.52
17	12587703W		Cover, Corner (2) (white)				$ 21.81
17	WP12587703AP		Cover, Corner (2) (apollo Grey)   (Replaces: 12587703AP)				$ 7.69
17	67003485		Cover, Corner (2) (black)   (Replaces: 12587703B)			Immediately	$ 21.09
18	W10213415		Hinge, Top Left				$ 75.00
19	W11820445		Roller Assembly (right)   (Replaces: W10275849)			Immediately	$ 35.57
19	W11820444		Roller Assembly (left)   (Replaces: W10275850)			Immediately	$ 35.57
20	67006564		Screw (8)   (Replaces: 12991302)			Immediately	$ 7.69
21	12999502		Shim, Hinge (right)				$ 95.81
21	12999501		Shim, Hinge (left)				$ 94.79
22	WPW10534155		Grille, Toe (apollo Grey)   (Replaces: 12880103AP)			Immediately	$ 119.56
22	WPW10534153		Grille, Toe (black)   (Replaces: 12880103B)				$ 147.21
22	WPW10534154		Grille, Toe (white)   (Replaces: 12880103W)				$ 146.34
24	W10918164		Hinge, Center (lt) Black)   (Replaces: 13000007ED)				$ 86.64
24	W10917988		Hinge, Center (lt) (apollo Grey)   (Replaces: 13000001AP)			Immediately	$ 91.08
24	W10918113		Hinge, Center (lt) (white)   (Replaces: 13000001WD)				$ 93.26
25	67006425		Screw (10)   (Replaces: 12990511)			Immediately	$ 6.95
26	W10253808		Cover, Water Line (white)		Appelez-nous	-
26	W10253811		Cover, Water Line (apollo Grey)		Appelez-nous	-
26	W10253809		Cover, Water Line (black)		Appelez-nous	-
27	W11226688		Lid, Hv Box   (Replaces: 12957702)				$ 81.10
28	12961602		Cover, Control Box				$ 110.66
30	WPW10270394		Cover, Unit   (Replaces: W10270394)				$ 198.79
32	W11456069		Clamp-tube   (Replaces: M0108107)			Immediately	$ 21.33
33	12820505		Insulation, Sound				$ 71.70
35	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
36	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
37	W10236761		Cover, Water Valve				$ 16.11
38	W10223786		Waterline, Household		Appelez-nous	-
