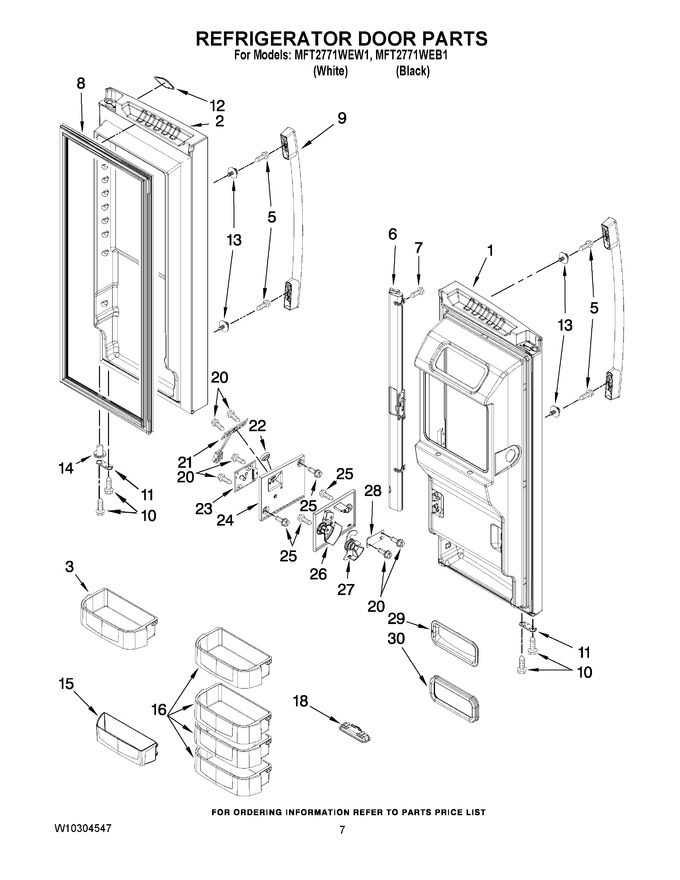

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13102610WQ | Door, Left (white) |
|
- | |||||
| 1 | 13102610BQ | Door, Left (black) |
|
- | |||||
| 2 | 13102608BQ | Door, Right (black) |
|
- | |||||
| 2 | 13102603WQ | Door, Right (white) |
|
- | |||||
| 3 | W10237235 | Bucket, Door Gallon (lh) |
|
- | |||||
| 5 | W10290759 | Screw |
|
$ 5.83 | |||||
| 6 | 12722815B | Mullion, Doo (black) |
|
$ 289.26 | |||||
| 6 | WP12722815W | Mullion, Doo (white) (Replaces: 12722815W) |
|
$ 322.63 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.02 | |||||
| 8 | W11396037 | Gasket, Door (white) (Replaces: W10163896) |
|
$ 297.77 | |||||
| 8 | W11378944 | Gasket, Door (black) (Replaces: W10163898) |
|
Immediately | $ 187.59 | ||||
| 9 | 13004701W | Handle, Door (white) |
|
$ 184.73 | |||||
| 9 | 13004701B | Handle, Door (black) |
|
$ 85.52 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 11 | 12968202W | Stop, Door (white) |
|
$ 65.99 | |||||
| 11 | W11708403 | Stop, Door (black ) (Replaces: 12968202B) |
|
Immediately | $ 14.05 | ||||
| 12 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 67.14 | ||||
| 13 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 11.96 | ||||
| 14 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 86.02 | |||||
| 14 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 7.76 | ||||
| 15 | WPW10212139 | Bucket, Small (Replaces: W10212139) |
|
Immediately | $ 78.54 | ||||
| 16 | W10237237 | Bucket, Door Gallon (rh) (without Gripper) |
|
$ 116.24 | |||||
| 18 | W10212141 | Latch, Ice Bin |
|
- | |||||
| 20 | 2006254 | Screw (Replaces: 12993001) |
|
$ 13.13 | |||||
| 21 | WPW10305123 | Led, Ice Bin (Replaces: W10305123) |
|
$ 187.93 | |||||
| 22 | W10225288 | Lens, Ice Bin Led |
|
- | |||||
| 23 | W11813704 | Board, Receiver (Replaces: W10273549) |
|
Immediately | $ 313.30 | ||||
| 24 | W10251672 | Cover, Receiver |
|
$ 35.70 | |||||
| 25 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 7.74 | ||||
| 26 | W10199834 | Cover, Emitter |
|
$ 37.43 | |||||
| 27 | W10211511 | Shutoff, Emitter |
|
$ 34.01 | |||||
| 28 | W10870822 | Board, Emitter (Replaces: W10180607) |
|
Immediately | $ 222.54 | ||||
| 29 | W10247763 | Seal, Ice Door |
|
$ 33.55 | |||||
| 30 | W10247668 | Gasket, Ice Chute |
|
$ 24.44 |
