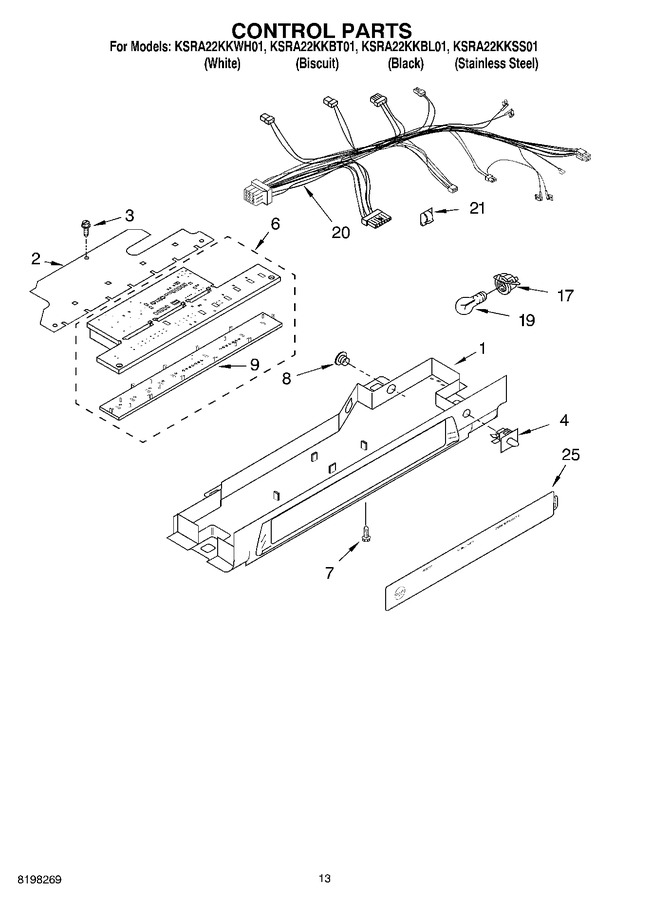

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2212005 | Control Box |
|
- | |||||
| 2 | 2216879 | Cover |
|
- | |||||
| 3 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 4 | WP2149705 | Light Switch (Replaces: 2219875) |
|
Immediately | $ 40.40 | ||||
| 6 | 2207352 | Control Board |
|
- | |||||
| 7 | WP488488 | Screw (Replaces: 489290) |
|
$ 7.68 | |||||
| 8 | 940014 | Hole Plug |
|
$ 18.33 | |||||
| 9 | 2212012 | Insert, Control Board |
|
- | |||||
| 17 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 19 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 20 | 2187558 | Harness, Control Box |
|
- | |||||
| 21 | WP1115374 | Clip, Wiring (Replaces: 1115374) |
|
$ 7.75 | |||||
| 25 | 876370 | Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 231.56 | |||||
| 25 | 350956 | Enamel, Almond (13 Oz. Spray Can) |
|
$ 51.44 | |||||
| 25 | W11729596 | Kims9 (Replaces: 2155468) |
|
Immediately | $ 150.98 | ||||
| 25 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 25 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | ||||
| 25 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | |||||
| 25 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 | ||||
| 25 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 231.56 | |||||
| 25 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 25 | 833938 | Kit, Terminal Connector |
|
$ 8.07 | |||||
| 25 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 25 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 25 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 25 | 1117510 | Torx Key |
|
$ 5.84 | |||||
| 25 | 2220446 | Overlay, Control Box |
|
- | |||||
| 25 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 89.66 | |||||
| 25 | 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 57.04 | |||||
| 25 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | ||||
| 25 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 25 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 25 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 231.56 | |||||
| 25 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 25 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 49.29 | |||||
| 25 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 78.45 | |||||
| 25 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 25 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | |||||
| 25 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 |
