SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Door And Latch Parts

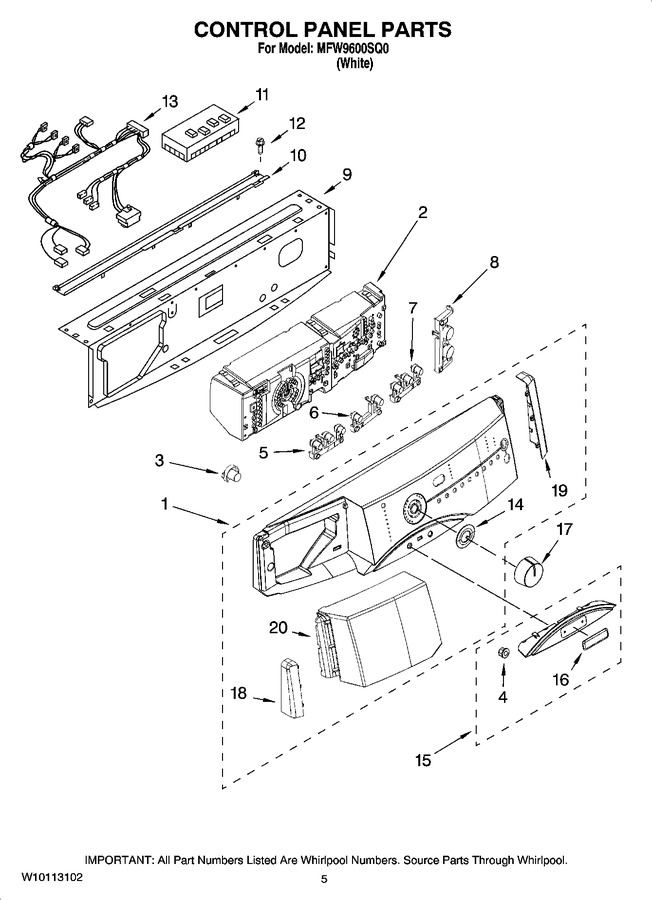

03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8183082		Panel, Control		Appelez-nous	-
2	8182150		User Interface				$ 278.39
3	8182601		Button, Power				$ 32.30
4	WP2004333		Pal-nut   (Replaces: 8182183)				$ 11.24
5	8182604		Button Set, Left				$ 53.63
6	8183084		Button Set, Middle		Appelez-nous	-
7	8182602		Button Set, Right				$ 44.31
8	8182180		Button Set, Start				$ 51.41
9	8182224		Brace, Front Top		Appelez-nous	-
10	8181640		Channel, Water		Appelez-nous	-
11	8183085		Microcomputer, Machine Control		Appelez-nous	-
12	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 8.28
13	8182212		Harness, Wiring (main)				$ 139.63
14	8182171		Bezel, Knob		Appelez-nous	-
15	8183083		Overlay, Door		Appelez-nous	-
16	8183059		Medallion		Appelez-nous	-
17	8182175		Knob, Control		Appelez-nous	-
18	8182599		Endcap, Left		Appelez-nous	-
19	8182600		Endcap, Right		Appelez-nous	-
20	8183057		Handle, Drawer (includes Item 18)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
