SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts

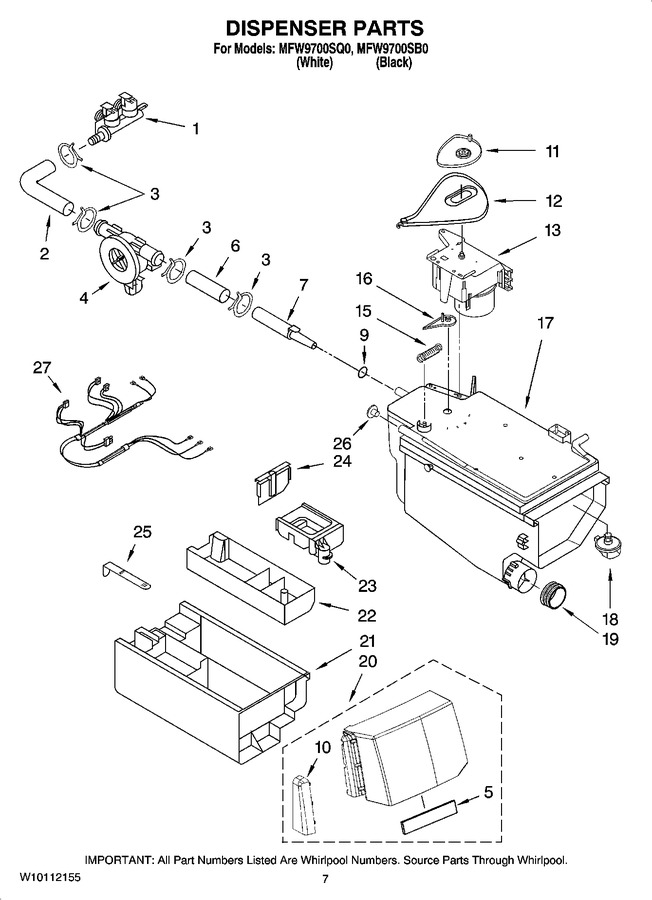

04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8182862		Valve, Inlet   (Replaces: 8182862)			Immediately	$ 83.49
2	WP8181710		Hose, Flowmeter (l-shaped)   (Replaces: 8181710)				$ 24.59
3	WP489503		Clamp   (Replaces: 8181751)			Immediately	$ 10.75
4	WPW10110225		Flowmeter   (Replaces: 8181696)			Immediately	$ 109.03
5	8182173		Cushion, Handle		Appelez-nous	-
6	8181708		Hose, Flowmeter				$ 37.73
7	8183010		Nozzle, Inlet		Appelez-nous	-
9	8181714		O-ring		Appelez-nous	-
10	8182599		Endcap (white)		Appelez-nous	-
10	8183073		Endcap (black)		Appelez-nous	-
11	8181726		Cam, Actuator				$ 9.80
12	8181725		Lever, Water Distribution				$ 12.31
13	WPW10665207		Actuator   (Replaces: 8181723)				$ 181.11
15	8181727		Spring, Lever		Appelez-nous	-
16	8181724		Connection, Lever				$ 9.87
17	8183033		Dispenser (meteorite)		Appelez-nous	-
17	8183032		Dispenser (white)		Appelez-nous	-
18	WP8181712		Nozzle, Distribution   (Replaces: 8181712)				$ 89.11
19	WP8181747		Seal   (Replaces: 8181747)			Immediately	$ 26.03
20	8183072		Handle, Drawer (black)		Appelez-nous	-
20	8183057		Handle, Drawer (white)		Appelez-nous	-
21	WP8181720		Drawer, Detergent (meteorite)   (Replaces: 8182160)			Immediately	$ 110.01
21	WP8181720		Drawer, Detergent (white)   (Replaces: 8181720)			Immediately	$ 110.01
22	8181722		Container, Detergent (white)				$ 31.80
22	8182184		Container, Detergent (meteorite)				$ 32.13
23	8182665		Siphon, Bleach/softener (white)				$ 21.63
23	8182161		Siphon, Bleach/softener (meteorite)				$ 40.96
24	8181730		Separator (white)				$ 35.90
24	8182162		Separator (meteorite)				$ 39.67
25	8181721		Hook, Drawer				$ 37.02
26	8182123		Cap		Appelez-nous	-
27	8183022		Harness, Wiring (inlet Valve)				$ 70.93

    View Diagram in Separate Window       Print Part List
