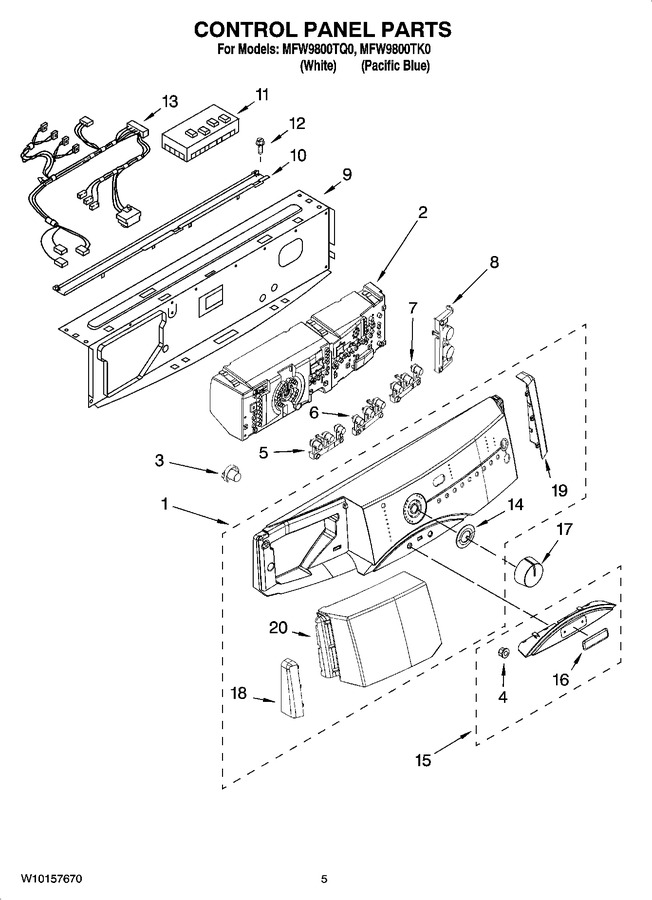

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10163310		Panel, Control (pacific Blue)		Appelez-nous	-
1	W10163309		Panel, Control (white)		Appelez-nous	-
2	8182150		User Interface				$ 278.39
3	W10163302		Button, Power		Appelez-nous	-
4	WP2004333		Pal-nut   (Replaces: 8182183)				$ 10.70
5	W10163305		Button Set, Left		Appelez-nous	-
6	W10163304		Button Set, Middle				$ 52.52
7	W10163303		Button Set, Right				$ 47.37
8	W10163306		Button Set, Start				$ 49.40
9	8182224		Brace, Front Top		Appelez-nous	-
10	8181640		Channel, Water		Appelez-nous	-
11	W10137702		Microcomputer, Machine Control				$ 289.85
12	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 7.79
13	8182212		Harness, Wiring (main)				$ 139.63
14	8182171		Bezel, Knob		Appelez-nous	-
15	W10163300		Overlay, Door		Appelez-nous	-
16	8183059		Medallion		Appelez-nous	-
17	W10163301		Knob, Control				$ 25.62
18	8182599		Endcap, Left (white)		Appelez-nous	-
18	W10163314		Endcap, Left (pacific Blue)		Appelez-nous	-
19	8182600		Endcap, Right (white)		Appelez-nous	-
19	W10163315		Endcap, Right (pacific Blue)		Appelez-nous	-
20	W10163313		Handle, Drawer (includes Item 18) (pacific Blue)		Appelez-nous	-
20	W10163312		Handle, Drawer (includes Item 18) (white)		Appelez-nous	-
