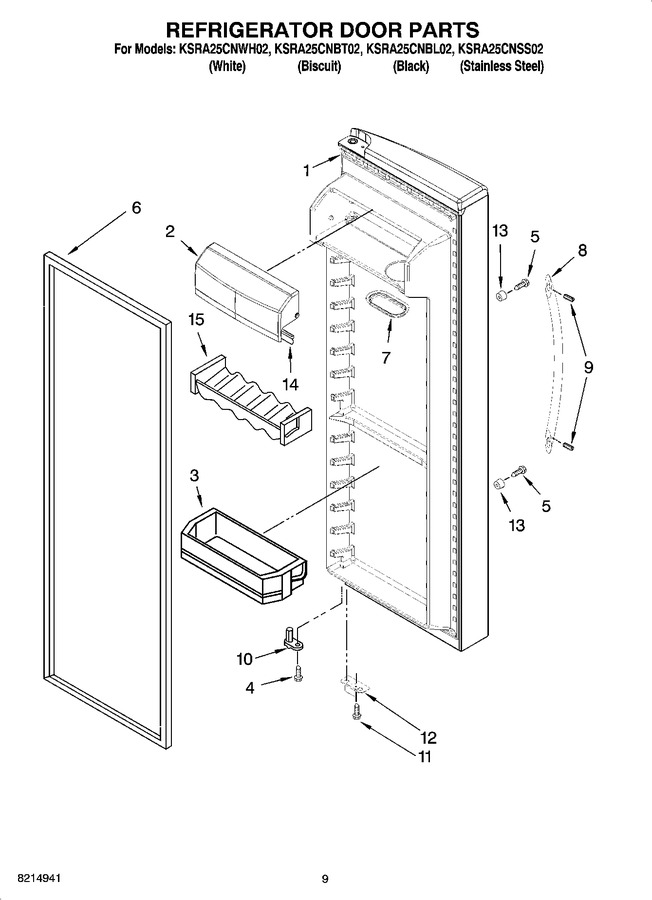

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2301168T		Refrigerator Door (includes Item 6) (biscuit)		Appelez-nous	-
1	2301168B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	2301168SB		Refrigerator Door (includes Item 6) (stainless)		Appelez-nous	-
1	2301168W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
2	2301486		Compartment Door		Appelez-nous	-
3	WP2223434K		Door Bin (4)   (Replaces: 2223434K)			Immediately	$ 102.08
4	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
5	WP488163		Screw   (Replaces: 488208)				$ 7.92
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 333.00
7	2165792K		Butter Dish				$ 9.72
8	2304832W		Handle (white)		Appelez-nous	-
8	2304832SK		Handle (stainless)		Appelez-nous	-
8	2304832B		Handle (black)		Appelez-nous	-
8	2304832T		Handle (biscuit)		Appelez-nous	-
9	WPW10010150		Set Screw (black)   (Replaces: W10010150)				$ 8.57
9	W11366418		Set Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2200082B		Bracket, Door Stop (black)				$ 42.44
12	2200082		Bracket, Door Stop (chrome)				$ 5.83
13	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
14	2159124		Gasket		Appelez-nous	-
15	2193409K		Beverage Holder		Appelez-nous	-
